600 RDM2 (954130032) - Jonsered Walk-Behind Mower (1999-07) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

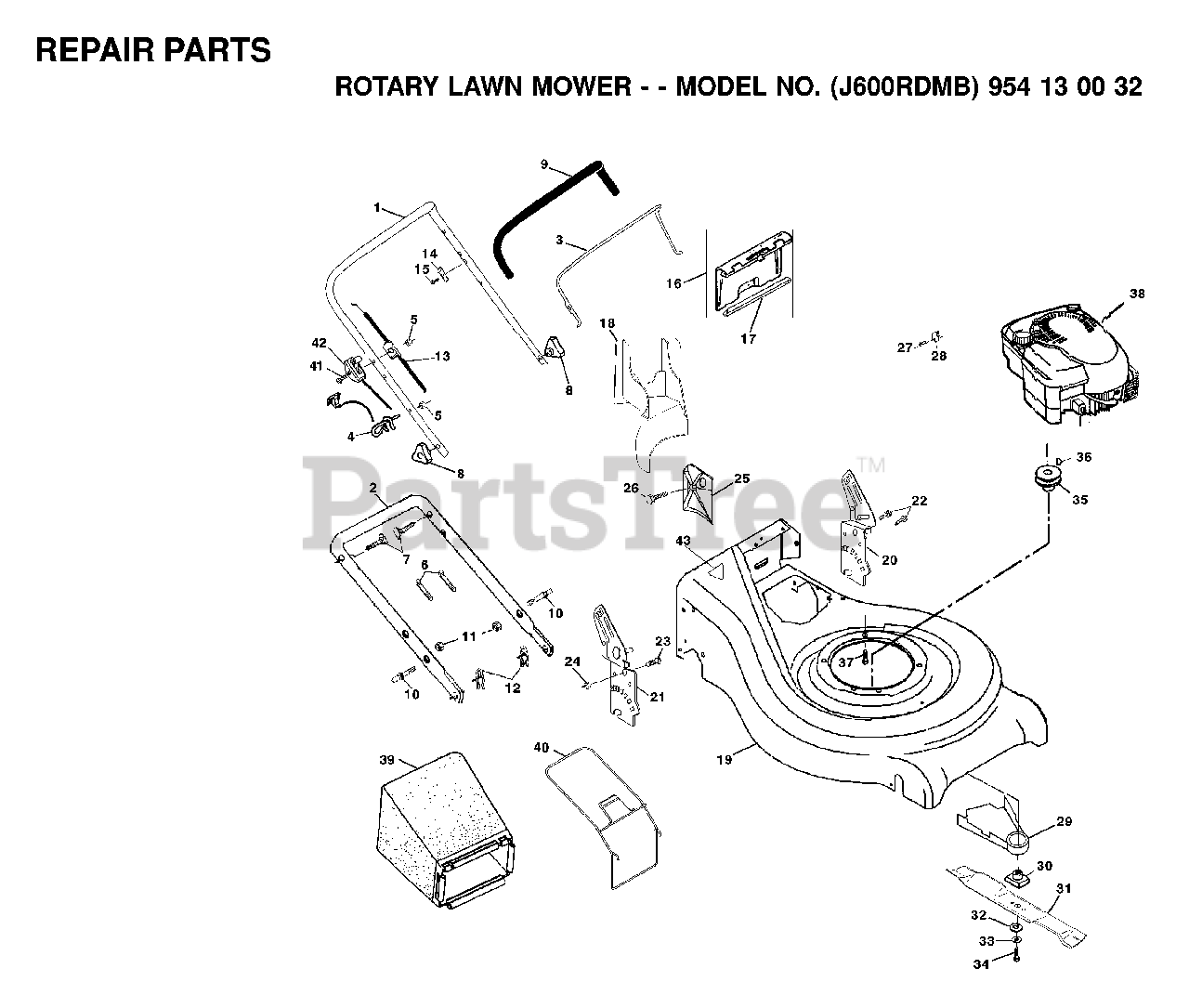

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532165542

No Description Available

$42.99

$

Usually ships in 3-10 days

0

2

Jonsered 532164556

HANDLE
(Superseded to 532161105)

$

$

Not available

3

Jonsered 532131036

CONTROL BAR
(Superseded to 532851659)

$15.99

$

Usually ships in 3-10 days

0

4

Jonsered 532132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Jonsered 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

8

Jonsered 532087692

KNOB

$10.99

$

Usually ships in 3-10 days

0

9

Jonsered 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

10

Jonsered 532161551

BOLT
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Jonsered 873990500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

12

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 1 left!

0

14

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

16

Jonsered 532162085

REAR DOOR KIT

$

$

Not available

17

Jonsered 532161548

SEALING
(Superseded to 532189059)

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 532165261

MULCH PLUG
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Jonsered 532163424

No Description Available

$

$

Not available

20

Jonsered 532164548

.RACKET
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

21

Jonsered 532164549

BRACKET
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

22

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532063124

No Description Available
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

25

Jonsered 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

26

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

27

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

29

Jonsered 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

30

Jonsered 532851514

RP BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

31

Jonsered 531008020

No Description Available

$

$

Not available

32

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532165604

PULLEY
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

36

Jonsered 532087677

HI PRO KEY PM

$

$

Not available

37

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 532166834

No Description Available

$

$

Not available

40

Jonsered 532161358

GRASS CATCHER FRAME

$

$

Not available

41

Jonsered 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

42

Jonsered 532164137

THROTTLE TRIGGER
(Superseded to 532182154)

$

$

Not available

43

Jonsered 532145494

DECAL MOWER CUT/FINGER

$10.99

$

Usually ships in 3-10 days

0

--

Jonsered 532161057

No Description Available

$

$

Not available

--

Jonsered 532166832

No Description Available

$2.99

$

Usually ships in 3-10 days

0

--

Jonsered 532166833

No Description Available

$2.99

$

Usually ships in 3-10 days

0
