600 RDM2 (954056631) - Jonsered Walk-Behind Mower (1996-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

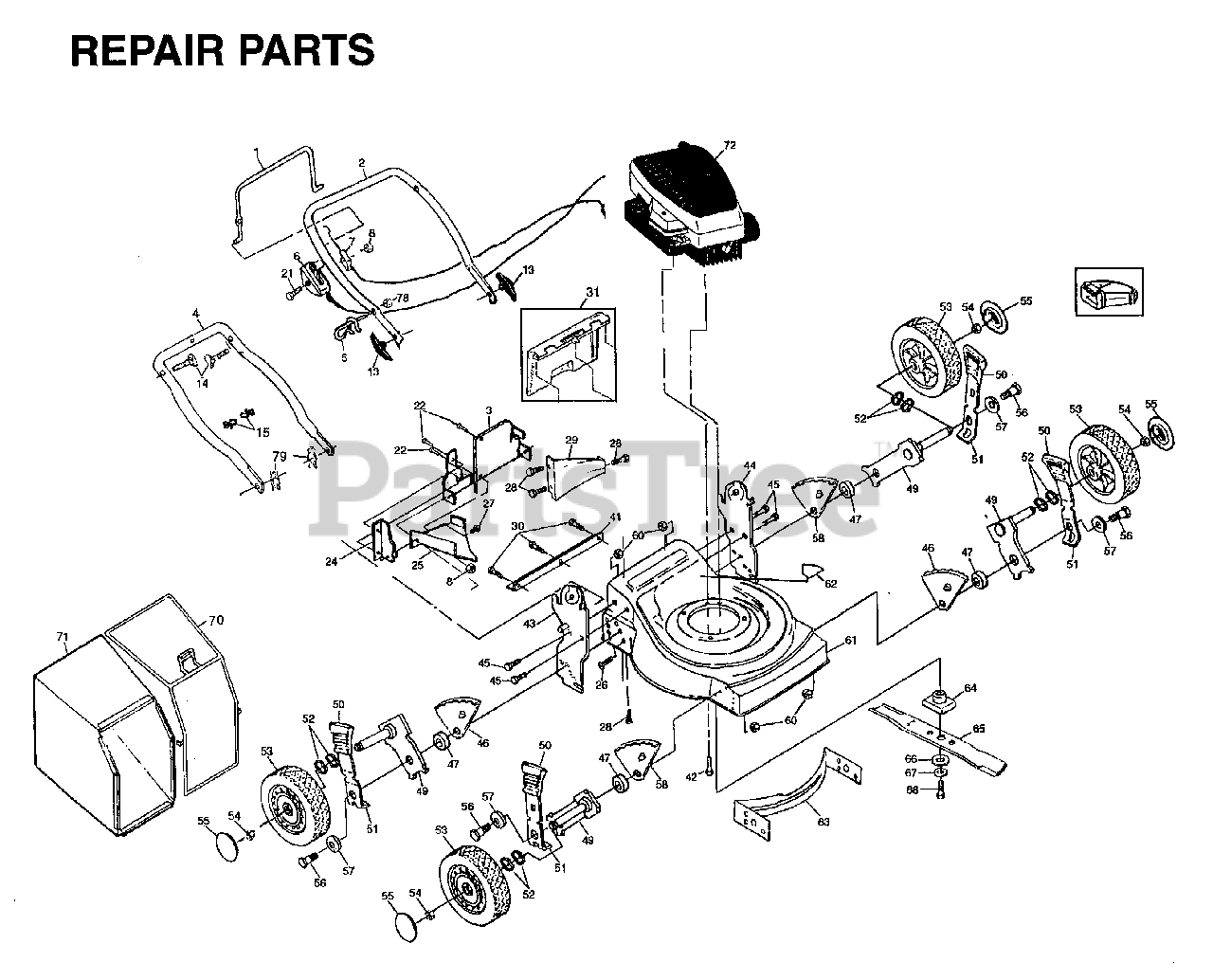

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532850735

CONTROL BAR/BLACK
(Superseded to 532800655)

$

$

Not available

2

Jonsered 532153817

UPPER HANDLE
(Superseded to 532145642)

$

$

Not available

3

Jonsered 532146740

No Description Available

$

$

Not available

4

Jonsered 532153028

No Description Available
(Superseded to 532157081)

$

$

Not available

5

Jonsered 532132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

6

Jonsered 532700644

THROTTLE CONTROL

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 532130861

ENGINE ZONE CONTROL CABLE

$

$

Not available

8

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

13

Jonsered 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

14

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

15

Jonsered 532151517

CLIP CABLE SNAP
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

21

Jonsered 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

22

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532138866

SIDE BAFFLE
(Superseded to 532700363)

$

$

Not available

25

Jonsered 532154439

No Description Available

$

$

Not available

26

Jonsered 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

27

Jonsered 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

$

$

Not available

29

Jonsered 532125035

REAR BAFFLE

$9.49

$

Usually ships in 3-10 days

0

30

Jonsered 532146694

No Description Available

$

$

Not available

31

Jonsered 532147613

REAR DOOR ASSEMBLY KIT

$

$

Not available

41

Jonsered 532146143

No Description Available

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

43

Jonsered 532153029

HANDLE BRACKET ASSEMBLY-RIGHT

$

$

Not available

44

Jonsered 532153030

HANDLE BRACKET ASSEMBLY - LEFT
(Superseded to 151589X479)

$

$

Not available

45

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 532134341

No Description Available
(Superseded to 584313501)

$2.99

$

Usually ships in 3-10 days

0

47

Jonsered 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

49

Jonsered 532151254

AXLE ARM
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

51

Jonsered 532125066

SELECTOR SPRING

$6.49

$

In Stock, only 1 left!

0

52

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

53

Jonsered 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

54

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Jonsered 532801153

No Description Available

$

$

Not available

56

Jonsered 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

57

Jonsered 532062335

BELLEVILLE WASHER

$9.99

$

Usually ships in 3-10 days

0

58

Jonsered 532134341

No Description Available
(Superseded to 584313501)

$2.99

$

Usually ships in 3-10 days

0

60

Jonsered 873368600

No Description Available
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

Jonsered 532154290

No Description Available

$311.99

$

Usually ships in 3-10 days

0

62

Jonsered 532145494

DECAL MOWER CUT/FINGER

$10.99

$

Usually ships in 3-10 days

0

63

Jonsered 532140054

No Description Available

$

$

Not available

64

Jonsered 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

65

Jonsered 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

Usually ships in 3-10 days

0

66

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

67

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

68

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532088614

CATCHER FRAME

$54.99

$

Usually ships in 3-10 days

0

71

Jonsered 532154347

No Description Available

$242.99

$

Usually ships in 3-10 days

0

78

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

79

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

--

Jonsered 532850724

HANDLE GRIP
(Superseded to 532155890)

$

$

Not available
