600 RDII (954130006) - Jonsered Walk-Behind Mower (1997-04) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

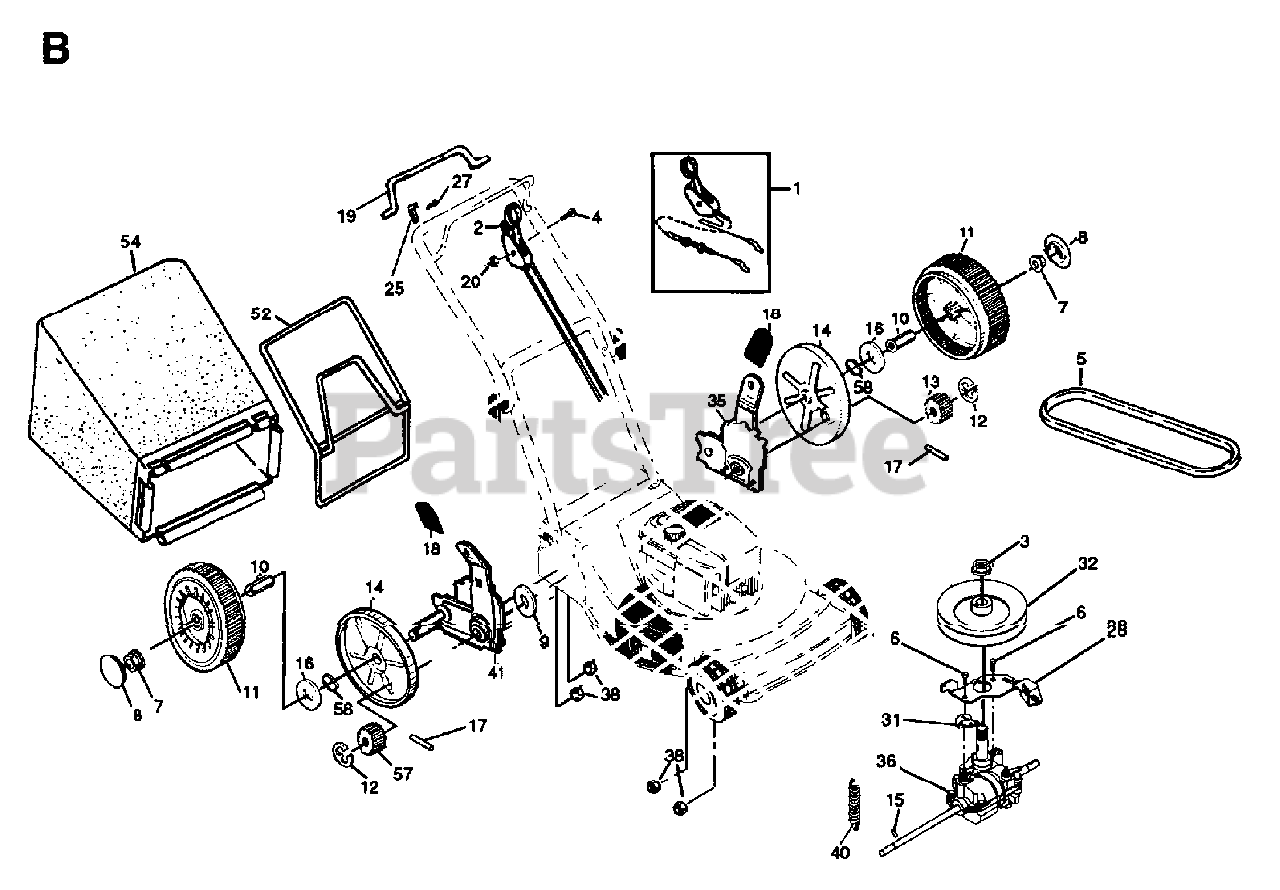

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532145088

No Description Available
(Superseded to 532162716)

$78.99

$

Usually ships in 3-10 days

0

2

Jonsered 532147715

KIT/HEAD CONTROL
(Superseded to 532163154)

$78.99

$

Usually ships in 3-10 days

0

3

Jonsered 873031000

METRIC NUT

$

$

Not available

4

Jonsered 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

5

Jonsered 532150327

DRIVE BELT

$21.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

7

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 532150181

No Description Available

$10.99

$

Usually ships in 3-10 days

0

9

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

10

Jonsered 532088446

BUSHING PM

$

$

Not available

11

Jonsered 532157891

No Description Available

$

$

Not available

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532850017

No Description Available
(Superseded to 532165097)

$12.99

$

Usually ships in 3-10 days

0

14

Jonsered 532088080

DUST SHROUD PM
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Jonsered 532145354

PIN.SPRING.THRUST

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532851980

DRIVE PAWL
(Superseded to 532164795)

$

$

Not available

18

Jonsered 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

19

Jonsered 532145071

No Description Available

$

$

Not available

20

Jonsered 532751152

No Description Available
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

25

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

28

$

$

Not available

31

Jonsered 532153823

No Description Available

$

$

Not available

32

$

$

Not available

35

Jonsered 532155181

No Description Available

$70.99

$

Usually ships in 3-10 days

0

36

Jonsered 532150330

TRANSMISSION

$

$

Not available

38

Jonsered 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

$

$

Not available

41

Jonsered 532155180

No Description Available

$

$

Not available

52

Jonsered 532150224

No Description Available

$

$

Not available

54

Jonsered 532153746

No Description Available

$141.99

$

Usually ships in 3-10 days

0

57

Jonsered 532850016

No Description Available
(Superseded to 532165096)

$

$

Not available

58

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0
