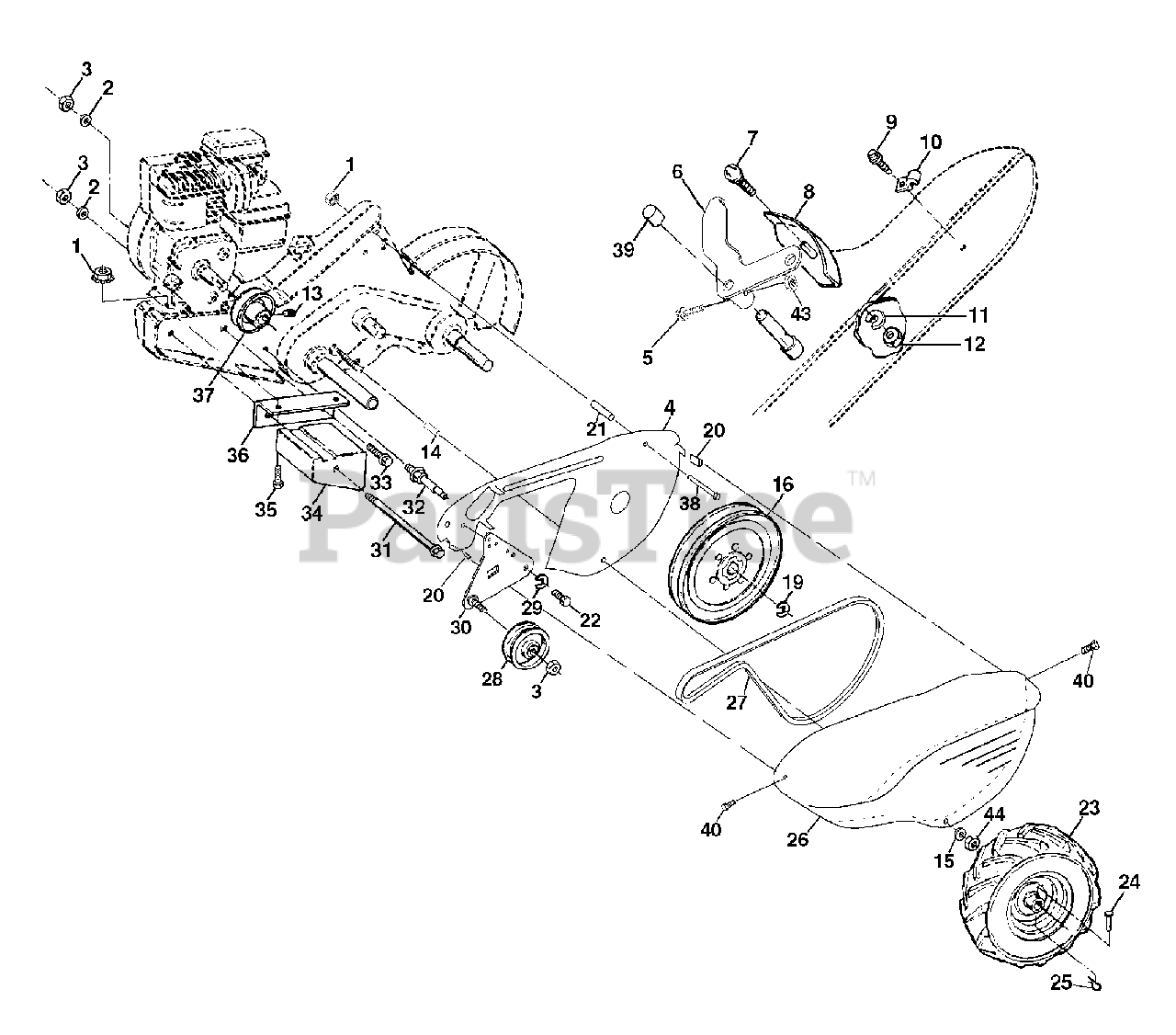

600 CRT (954140070-B) - Husqvarna Rear-Tine Tiller (1999-04) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

Mainframe, Left Side Parts Diagram

  • Title

1

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 532165710

Shield, Inner Belt Guard RT

$33.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532154734

Screw, Shift Lever

$

$

Not available

6

Husqvarna 532110111

Lever, Shift

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

Plate, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532086777

Screw, Hex, Washer Head, Slotted #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 823230506

Screw, Set, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532110652

Spacer, Split 0.327 x 0.42 x 2.09

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

Sheave, Transmission

$68.99

$

In Stock, only 3 left!

0

17

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 812000028

Retainer, Ring

$7.49

$

In Stock, Qty 8

0

20

Husqvarna 532165504

Nut J Clip #8

$

$

Not available

21

Husqvarna 532156117

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874770508

Bolt, Fin Hex 5/16-24 UNF x 1/2

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

Tire

$145.99

$

In Stock, only 2 left!

0

23

Husqvarna 532124366

Rim
(Superseded to 532128952)

$

$

Not available

23

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

24

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Husqvarna 532166792

Guard, Belt
(Superseded to 532440438)

$54.99

$

In Stock, only 1 left!

0

27

Husqvarna 532132801

Belt, V
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Husqvarna 532104679

Pulley, Idler

$18.99

$

In Stock, only 1 left!

0

29

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532159229

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

31

Husqvarna 532102384

Bolt, Hex 5/16-16 x 12

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102141

Shaft, Idler Arm

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532102383

Counterweight, L. H.

$133.99

$

Usually ships in 3-10 days

0

35

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

Bracket, Reinforcement, L. H.

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Husqvarna 874760544

Bolt, Fin Hex 5/16-18 UNC x 2-3/4
(Superseded to 874780544)

$

$

Not available

39

Husqvarna 532140062

Cap, Plunger Blk

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532165503

Screw Hex Wsh Hd #8-18 x 1/2

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532069180

Nut, Lock #10-24

$6.49

$

Usually ships in 3-10 days

0

44

UNKNOWN

$

$

Not available
