600 C (601100023) - Husqvarna Walk-Behind Mower (2001-06) Friction Wheel And Drive Parts Diagram

Walk-Behind Mower

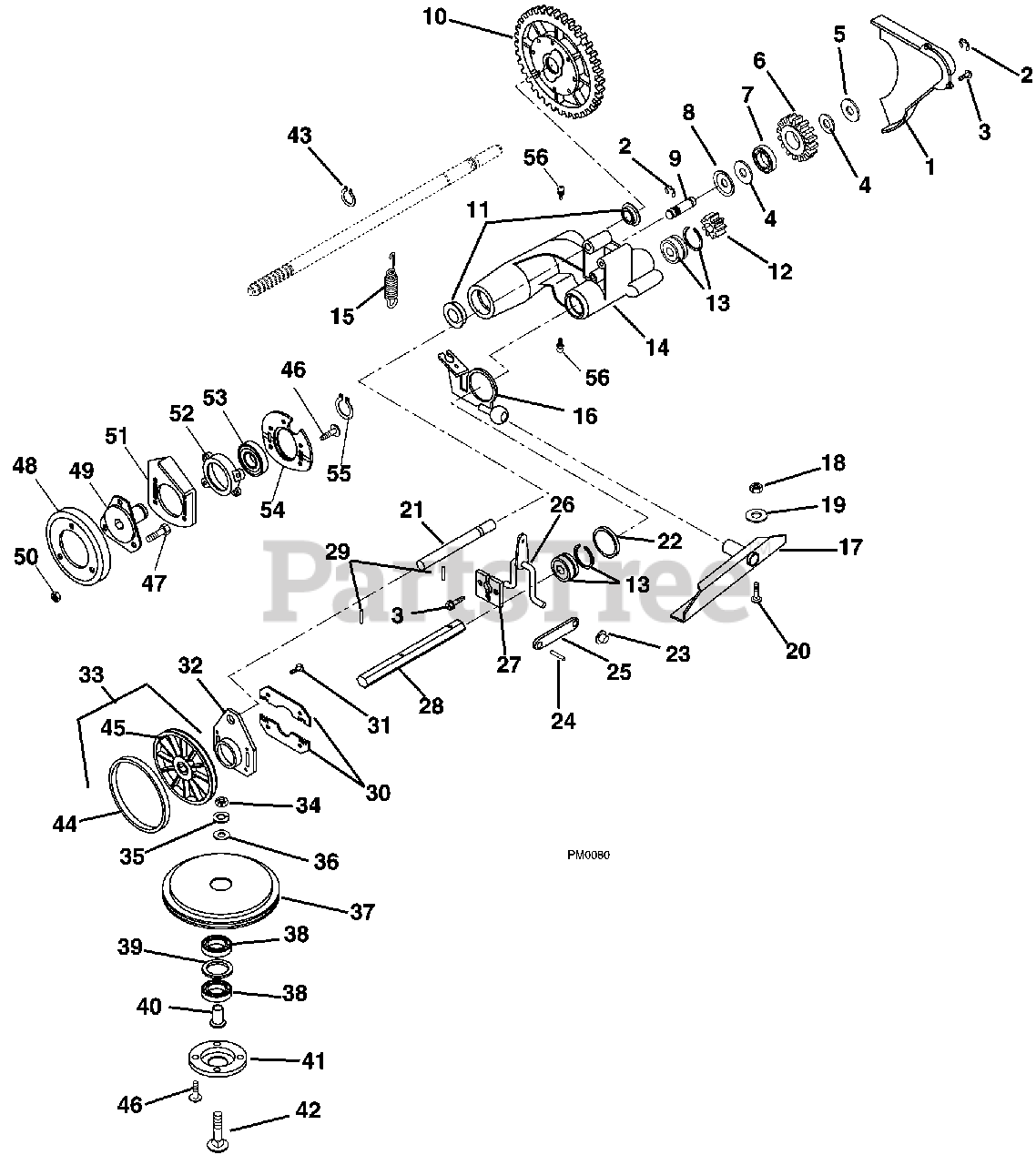

Friction Wheel And Drive Parts Diagram

  • Title

1

Husqvarna 606000159

Gear Cover

$

$

Not available

2

Husqvarna 606000190

Ring-Retaining-External .438 x .035

$

$

Not available

3

Husqvarna 606000092

Screw-Tapping 12-24 x .50 Hex Washer Head

$

$

Not available

4

Husqvarna 606000132

Washer - Flat - Steel .520 x .827 x .062

$

$

Not available

5

Husqvarna 606000201

Washer - Flat - Steel .531 x 1.00 x .063

$

$

Not available

6

Husqvarna 606000168

Idler Gear

$

$

Not available

7

Husqvarna 606000184

Bearing - Ball .50 x 1.38 x .437

$

$

Not available

8

Husqvarna 606000172

Retainer

$

$

Not available

9

Husqvarna 606000174

Idler Shaft

$

$

Not available

10

Husqvarna 606000213

Differential Assembly

$

$

Not available

11

Husqvarna 606000122

Bearing-Ball .625 x 1.383 x .50 (600 C)

$

$

Not available

12

Husqvarna 606000181

Gear-Pinion

$

$

Not available

13

Husqvarna 606000185

Bearing - Ball .562 x 1.375 x .437 (600 C)

$

$

Not available

14

Husqvarna 606000175

Drive Mount

$

$

Not available

15

Husqvarna 606000212

Spring-Tension .051 x .60 x 2.25

$

$

Not available

16

Husqvarna 606000173

Drive Actuator Weldment

$

$

Not available

17

Husqvarna 606000180

Pivot Channel Weldment

$

$

Not available

18

Husqvarna 606000050

Nut-Locking-Center .31-18
(Superseded to 606000243)

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 606000045

Washer-Flat-Steel .344 x .688 x .065

$

$

Not available

20

Husqvarna 606000127

Bolt-Round Head Square Short Neck .31-18 x .62

$

$

Not available

21

Husqvarna 606000163

Rod-Guide

$

$

Not available

22

Husqvarna 606000198

Washer - Flat - Steel 1.390 x 2.00 x .020

$

$

Not available

23

Husqvarna 606000078

Push Nut .25

$

$

Not available

24

Husqvarna 606000193

Pin-Roll .125 x .50 (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

Husqvarna 606000194

Pin-Roll .125 x .63 (600 C)

$

$

Not available

25

Husqvarna 606000161

Shift Link

$

$

Not available

26

Husqvarna 606000160

Shift Arm Weldment

$

$

Not available

27

Husqvarna 606000162

Retainer Plate

$

$

Not available

28

Husqvarna 606000164

Hex Shaft

$

$

Not available

29

Husqvarna 606000192

Pin - Roll .188 x .88

$

$

Not available

30

Husqvarna 606000177

Thrust Plate (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

31

Husqvarna 606000211

Screw-Tapping 10-24 x .375 Hex Washer Head (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

32

Husqvarna 606000178

Guide-Plate (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

33

Husqvarna 606000214

Friction Wheel Assembly (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

34

Husqvarna 606000205

Nut-Hex .31-18

$

$

Not available

35

Husqvarna 606000199

Washer-Locking .312 x .097 Heavy

$

$

Not available

36

Husqvarna 606000203

Washer Flat-Steel .328 x .875 x .062

$

$

Not available

37

Husqvarna 606000165

Friction Sheave

$

$

Not available

38

Husqvarna 606000188

Bearing-Ball .625 x 1.375 x .43

$

$

Not available

39

Husqvarna 606000200

Washer- Flat-Steel 1.062 x 1.344 x .032

$

$

Not available

40

Husqvarna 606000166

Spindle, Bearing

$

$

Not available

41

Husqvarna 606000167

Bearing, Retainer

$

$

Not available

42

Husqvarna 606000197

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5 (600 C)

$

$

Not available

43

Husqvarna 606000189

Ring-Retaining-External .579 x .930

$2.49

$

Usually ships in 3-10 days

0

44

Husqvarna 606000179

Friction Ring (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)
(Superseded to 606000214)

$

$

Not available

45

Husqvarna 606000176

Friction Wheel Hub (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)
(Superseded to 606000214)

$

$

Not available

46

Husqvarna 606000092

Screw-Tapping 12-24 x .50 Hex Washer Head (580 R, 580 RS, 580 RSE, 580 RSW, 580 BBC)

$

$

Not available

Husqvarna 606000092

Screw-Tapping 12-24 x .50 Hex Washer Head (600 C)

$

$

Not available

47

Husqvarna 606000195

Bolt-Hex .25-20 x .50 Grade 5 (600 C)

$

$

Not available

48

Husqvarna 606000182

Disc, Friction (600 C)

$

$

Not available

49

Husqvarna 606000171

Hub, Friction Wheel (600 C)

$

$

Not available

50

Husqvarna 606000049

Nut-Locking-Center .25-20 (600 C)

$

$

Not available

51

Husqvarna 606000170

Bearing Plate (600 C)

$

$

Not available

52

Husqvarna 606000169

Bearing Retainer (600 C)

$

$

Not available

53

Husqvarna 606000186

Bearing Ball 1.00 x 2.00 x .56 (600 C)

$

$

Not available

54

Husqvarna 606000158

Bearing Retainer (600 C)

$

$

Not available

55

Husqvarna 606000191

Ring-Retaining - External 1.00 x .042 (600 C)

$

$

Not available

56

Husqvarna 606000157

Fitting-Lube .25-28 x .256 (600 C)

$

$

Not available
