600 (990231) - Simplicity Wonderboy Rear-Engine Riding Mower TRANSMISSION ASSEMBLY-Model 400 Parts Diagram

Wonderboy Rear-Engine Riding Mower

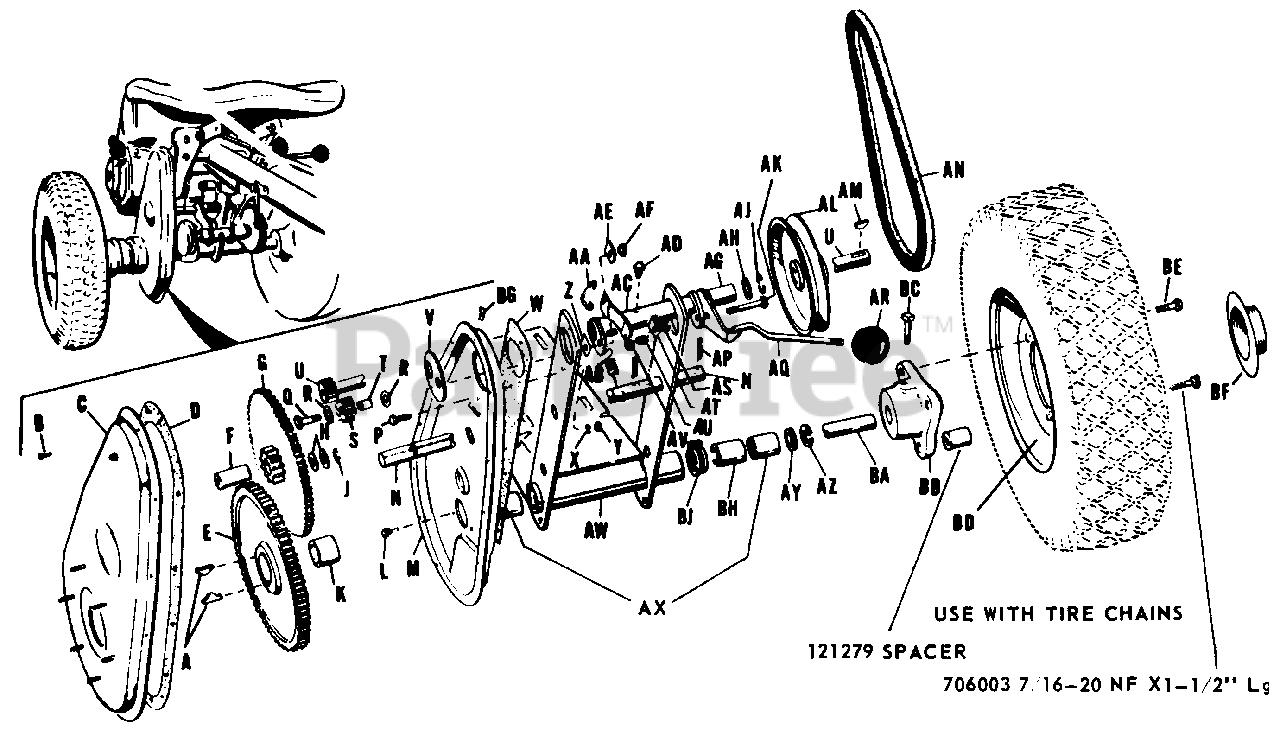

TRANSMISSION ASSEMBLY-Model 400 Parts Diagram

  • Title

A

Simplicity 2725501

Key, Hi Pro HP-608

$

$

Not available

B

Simplicity 2714004

Screw, Self Tapping #10 x 3/8

$

$

Not available

C

Simplicity 121144

Cover Assembly, Gear Case

$

$

Not available

D

Simplicity 153115

Gasket, Gear Case

$

$

Not available

E

Simplicity 121310

Gear, Drive

$

$

Not available

F

Simplicity 2153078

Bearing, Intermediate Pinion

$

$

Not available

G

Simplicity 121306

Gear Assembly

$

$

Not available

H

Simplicity 2153079

Washer

$

$

Not available

J

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

K

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

L

Simplicity 708001

Capscrew, 5/16-18 x 3/8
(Superseded to 707989)

$9.99

$

Usually ships in 2-12 days

0

M

Simplicity 153105

Case, Gear

$

$

Not available

N

Simplicity 121043

Shaft, Intermediate

$

$

Not available

P

Simplicity 2705005

Capscrew Hex Hd., 3/8-16 x 1

$

$

Not available

Q

Simplicity 715033

Hex Hd., Bolt

$372.99

$

Usually ships in 2-12 days

0

R

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

S

Simplicity 121118

Pinion, Reverse

$

$

Not available

T

Simplicity 121163

Spacer, Pinion

$

$

Not available

U

Simplicity 2121115SM

Pinion & Pulley Shaft

$90.99

$

Usually ships in 2-12 days

0

V

Simplicity 153094

Shield

$

$

Not available

W

Simplicity 153114

Gasket, Bearing Housing

$

$

Not available

X

Simplicity 2720002

Washer, Lock 3/8

$

$

Not available

Y

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

Z

Simplicity 121107

Spacer

$

$

Not available

AA

Simplicity 153011

Spring, Extension

$

$

Not available

AB

Simplicity 153121

Spring, Reverse Lever

$

$

Not available

AC

Simplicity 153044

Housing Assembly, Bearing

$

$

Not available

AD

Simplicity 2727004

Grease Fitting, Alemite #1911

$

$

Not available

AE

Simplicity 121139

Plate, Lock

$

$

Not available

AF

Simplicity 153090

Nut, Full Hex

$

$

Not available

AG

Simplicity 2156064SM

Bearing

$22.99

$

Usually ships in 2-12 days

0

AH

Simplicity 2153079

Washer

$

$

Not available

AJ

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

AK

Simplicity 2705007

Capscrew, Hex Hd., 5/16-18 x 1

$

$

Not available

AL

Simplicity 121124

Pulley, Transmission

$

$

Not available

AM

Simplicity 2725003

Key, Wodruff 3/16 x 3/8

$

$

Not available

AN

Simplicity 2121078SM

V Belt

$26.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2722003

Pin, Cotter 3/16 x 1 1/4

$

$

Not available

AQ

Simplicity 121372

Lever Assembly, Shift

$

$

Not available

AR

Simplicity 1729255SM

Knob

$12.99

$

Usually ships in 2-12 days

0

AS

Simplicity 2717013

Nut, Hex Jam, 3/8-16

$

$

Not available

AT

Simplicity 121042

Plate, Friction

$

$

Not available

AU

Simplicity 1729278SM

Spring

$2.49

$

Usually ships in 2-12 days

0

AV

Simplicity 2717510

Nut, Lock, 3/8-16

$

$

Not available

AW

Simplicity 121220

Housing Assembly, Axle

$

$

Not available

AX

Simplicity 153089

Bearing, Axle

$

$

Not available

AY

Simplicity 153088

Washer

$

$

Not available

AZ

Simplicity 121128

Ring, Retaining

$

$

Not available

BA

Simplicity 121222

Axle, Rear

$

$

Not available

BB

Simplicity 121089

Hub, Wheel, L.H.

$

$

Not available

BC

Simplicity 715002

Screw, Set, Sq. Hd., 3/8-1 1/4

$48.99

$

Usually ships in 2-12 days

0

BD

Simplicity 121257

Wheel, less tire & tube

$

$

Not available

BE

Simplicity 1729280SM

Bolt, Hub

$6.49

$

In Stock, only 2 left!

0

BF

Simplicity 121137

Hub Cap, Rear

$

$

Not available

BG

Simplicity 718008

Speed Nut

$

$

Not available

BH

Simplicity 121295

Cover, Axle House

$

$

Not available

BJ

Simplicity 121296

Clamp

$

$

Not available
