600 (990230) - Simplicity Wonderboy Rear-Engine Riding Mower SEAT, HOOD, AND DRAWBAR ASSEMBLY-Model 600 Parts Diagram

Wonderboy Rear-Engine Riding Mower

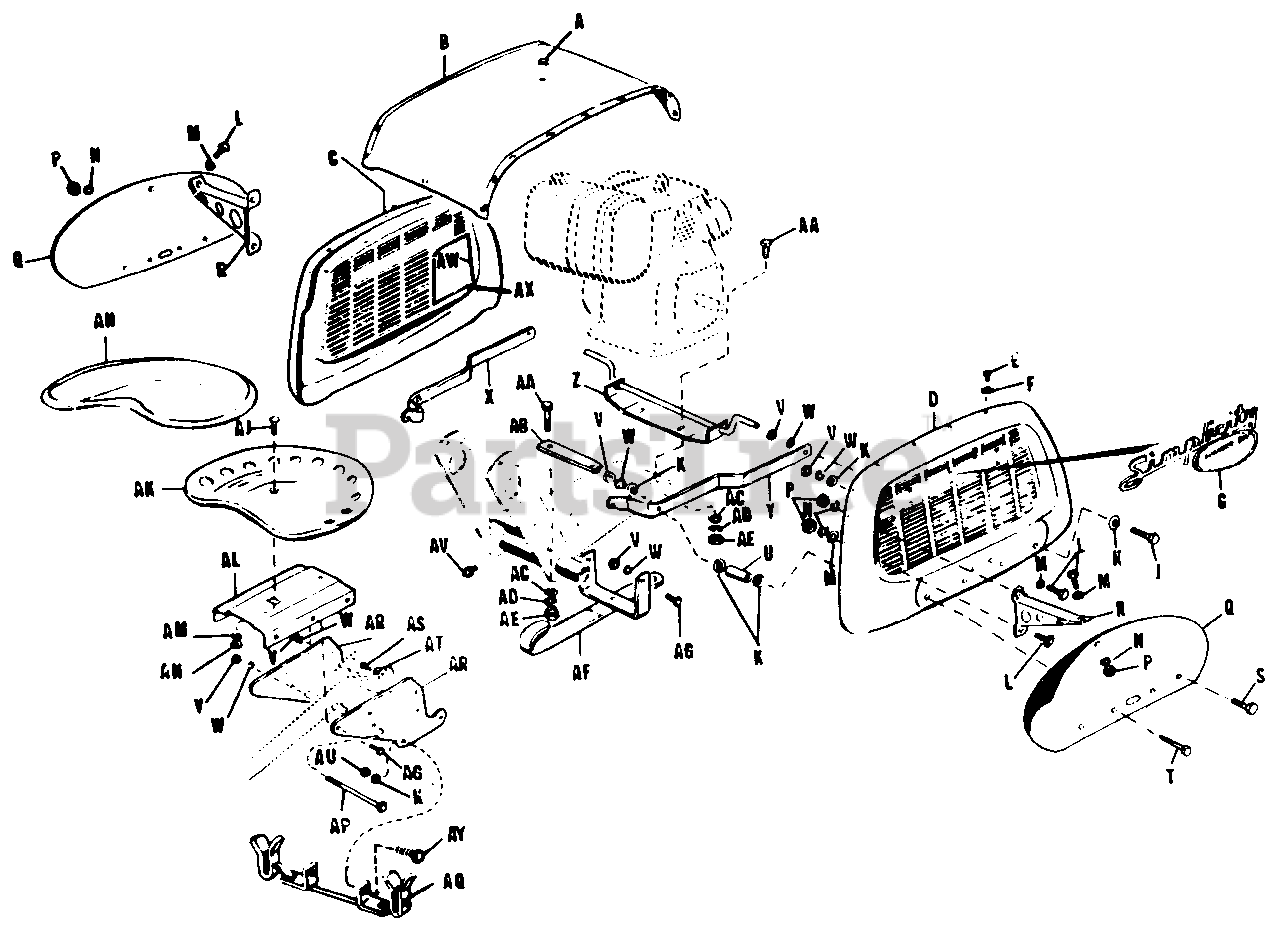

SEAT, HOOD, AND DRAWBAR ASSEMBLY-Model 600 Parts Diagram

  • Title

A

Simplicity 121246

Plug Button

$

$

Not available

B

Simplicity 121091

Panel, Top

$

$

Not available

C

Simplicity 121268

Panel, Side, R.H.

$

$

Not available

D

Simplicity 121270

Panel, Side, L.H.

$

$

Not available

E

Simplicity 2714003

Screw, #10 x 1/2

$

$

Not available

F

Simplicity 718016

Speed Nut

$

$

Not available

G

Simplicity 2153099

Emblem, Simplicity-Wonder-Boy "600"

$

$

Not available

J

Simplicity 2705016

Capscrew, Hex Hd., 3/8-16 x 1 1/4

$

$

Not available

K

Simplicity 2720002

Washer, Lock

$

$

Not available

L

Simplicity 2705002

Capscrew, Hex Hd., 1/4-20 x 1/2

$

$

Not available

M

Simplicity 2719006

Washer, Plain, 1/4

$

$

Not available

N

Simplicity 2720003

Lockwasher, 1/4

$

$

Not available

P

Simplicity 2717005

Nut, Full Hex, 1/4-20

$

$

Not available

Q

Simplicity 121251

Fender

$

$

Not available

R

Simplicity 121199

Brace, Fender

$

$

Not available

S

Simplicity 2705011

Capscrew, Hex Hd., 3/8-16 x 5/8

$

$

Not available

T

Simplicity 2705006

Capscrew, Hex Hd., 3/8-16 x 2

$

$

Not available

U

Simplicity 2121121

Spacer, Latch

$

$

Not available

V

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

W

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

X

Simplicity 121248

Latch Arm, R.H.

$

$

Not available

Y

Simplicity 121247

Latch Arm, L.H.

$

$

Not available

Z

Simplicity 121229

Bracket Assembly, Pivot

$

$

Not available

AA

Simplicity 2705023

Capscrew, Hex Hd., 5/16-18 x 1 3/4

$

$

Not available

AB

Simplicity 121227

Spacer, Engine

$

$

Not available

AC

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

AD

Simplicity 2720001

Washer, Lock, 5/16

$

$

Not available

AE

Simplicity 2717001

Nut, Full Hex, 5/16-18

$

$

Not available

AF

Simplicity 121252

Draw Bar Assembly

$

$

Not available

AG

Simplicity 2705005

Capscrew, Hex Hd., 3/8-16 x 1

$

$

Not available

AH

Simplicity 121392

Pad, Seat

$

$

Not available

AJ

Simplicity 703001

Carriage Bolt, 1/2-13 x 1

$15.99

$

Usually ships in 2-12 days

0

AK

Simplicity 121029

Seat

$

$

Not available

AL

Simplicity 121212

Support, Seat

$

$

Not available

AM

Simplicity 2720004

Washer, Lock, 1/2

$

$

Not available

AN

Simplicity 2717006

Nut, Full Hex, 1/2-13

$

$

Not available

AP

Simplicity 701001

Bolt, Sq. Hd. Machine, 3/8-16 x 6

$

$

Not available

AQ

Simplicity 121288

Catch Assembly

$

$

Not available

AR

Simplicity 121027

Side Plate

$

$

Not available

AS

Simplicity 706011

Capscrew, Hex Hd., 7/16-20 x 3/4

$147.99

$

Usually ships in 2-12 days

0

AT

Simplicity 721504

Washer, Lock, 7/16 Internal Shakeproof

$

$

Not available

AU

Simplicity 2717003

Nut, Full Hex

$

$

Not available

AV

Simplicity 2727006

Grease Fitting, Alemite #1637

$

$

Not available

AW

Simplicity 121244

Trim, Side Panel

$

$

Not available

AX

Simplicity 121245

Clip, for trim

$

$

Not available

AY

Simplicity 2705031

Cap Screw

$

$

Not available
