60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Transmission - Four Speed Parts Diagram

Riding Mower

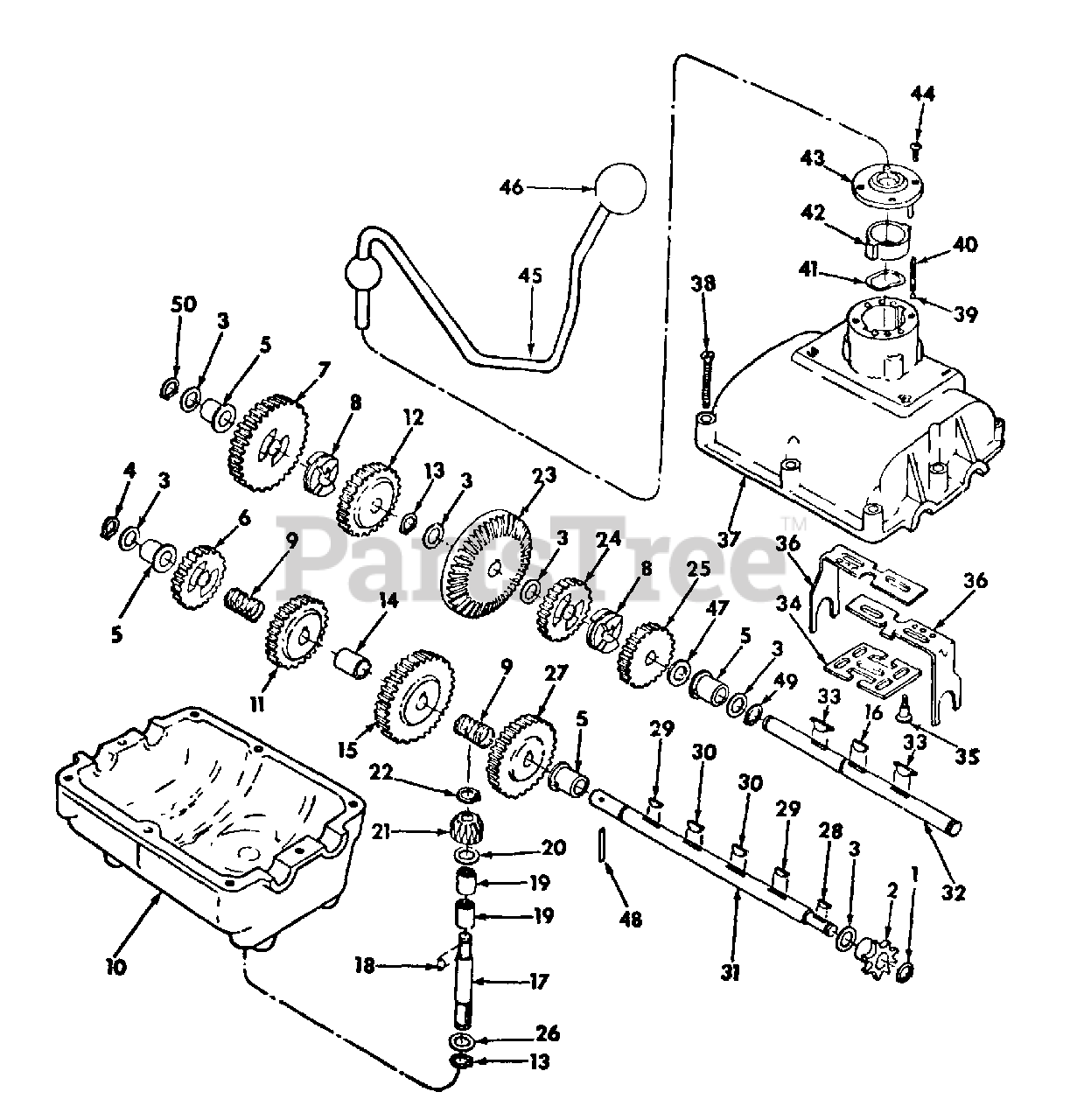

Transmission - Four Speed Parts Diagram

  • Title

Cub Cadet IH-489414-R94

TRANSMISSION ASSY

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

1

Cub Cadet IH-603540-C1

RING, RETAINING 461 X .035

$

$

Not available

2

Cub Cadet IH-490696-R1

SPROCKET, 8 TEETH

$

$

Not available

3

Cub Cadet IH-490697-R1

WASHER, PLAIN .030
(Superseded to 936-0336)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 7

0

Cub Cadet IH-490698-R1

WASHER, PLAIN .040
(Superseded to 936-0337)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-490699-R1

WASHER. PLAIN .050

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493511-R1

WASHER, PLAIN .036

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493512-R1

WASHER, PLAIN .026

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493513-R1

WASHER, PLAIN .046

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493514-R1

WASHER, PLAIN .020
(Superseded to 936-0349)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-373523-R1

RING, RETAINING

$

$

Not available

5

Cub Cadet IH-490700-R1

BEARING, FLANGE
(Superseded to 748-0867)

$

$

Not available

6

Cub Cadet IH-490701-R1

GEAR, SPUR - 20 TEETH

$

$

Not available

7

Cub Cadet IH-490702-R1

GEAR, SPUR - 30 TEETH

Note: SERIAL NO. 35586 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-77715-C1

GEAR, SPUR - 30 TEETH

Note: -REPLACES IH-493517-R1- -SERIAL NO 35587 AND ABOVE-

$

$

Not available

8

Cub Cadet IH-490703-R2

COLLAR, CLUTCH
(Superseded to FF-1574)

$

$

Not available

9

Cub Cadet IH-490704-R1

SPRING, COMPRESSION

$

$

Currently unavailable

10

Cub Cadet IH-490706-R1

HOUSING, LOWER

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

11

Cub Cadet IH-77716-C1

GEAR, SPUR - 25 TEETH

Note: REPLACES IH-490707-R1

$

$

Currently unavailable

12

Cub Cadet IH-77717-C1

GEAR, SPUR - 25 TEETH

Note: REPLACES IH-490708-R1

$

$

Currently unavailable

13

Cub Cadet IH-267805-R1

RING, RETAINING
(Superseded to 916-0115)

$

$

Not available

14

Cub Cadet IH-490709-R1

SPACER

$

$

Currently unavailable

15

Cub Cadet IH-490710-R2

GEAR, SPUR - 30 TEETH

$

$

Not available

16

Cub Cadet IH-124549

KEY, 3/16 X 3/4 WOODRUFF 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

17

Cub Cadet IH-63736-C91

SHAFT KIT, INPUT

$

$

Currently unavailable

18

Cub Cadet IH-124542

KEY, 3/32 X 1/2 WOODRUFF 2

$

$

Not available

19

Cub Cadet IH-490712-R91

BEARING, NEEDLE

$

$

Not available

20

Cub Cadet IH-490713-R1

WASHER, THRUST .093

$

$

Not available

21

PINION, BEVEL - 16 TEETH

Note: ORDER SHAFT KIT, IH-63736-C91

$

$

Not available

22

Cub Cadet IH-971043-R1

RING, RETAINING
(Superseded to 716-0865)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet IH-490715-R1

GEAR, BEVEL - 42 TEETH

$

$

Currently unavailable

24

Cub Cadet IH-490716-R1

GEAR, SPUR - 20 TEETH

$

$

Not available

25

Cub Cadet IH-490717-R1

GEAR, SPUR - 22 TEETH

$

$

Currently unavailable

26

Cub Cadet IH-350515-R1

WASHER, PLAIN 21/32 X 1 X 16 GA

$

$

Not available

27

Cub Cadet IH-490718-R1

GEAR, SPUR - 28 TEETH

$

$

Currently unavailable

28

Cub Cadet IH-547189-R1

KEY, WOODRUFF NO. 4 SPECIAL
(Superseded to 914-0129)

$

$

Not available

29

Cub Cadet IH-124543

KEY, 1/8 X 1/2 WOODRUFF 3 ALLOY

$

$

Not available

30

Cub Cadet IH-431787

KEY, 3/16 X 5/8 WOODRUFF 61 ALLOY

$

$

Not available

31

Cub Cadet IH-490719-R1

SHAFT, OUTPUT

$

$

Not available

32

Cub Cadet IH-126325-C1

SHAFT, DRIVE

Note: -REPLACES IH-490720-R1- -SERIAL NO. 35586 AND BELOW-

$

$

Currently unavailable

Cub Cadet IH-493516-R2

SHAFT WIRING

Note: -REPLACES IH-269174-R1- -SERIAL NO. 35587 AND ABOVE-

$

$

Not available

33

Cub Cadet IH-490721-R1

KEY, HI-PRO SPECIAL

$

$

Not available

34

Cub Cadet IH-490722-R1

PLATE, LOCK-OUT

$

$

Not available

35

Cub Cadet IH-490723-R1

SCREW, SHOULDER

$

$

Currently unavailable

36

Cub Cadet IH-490724-R2

FORK, SHIFTER

$

$

Not available

37

Cub Cadet IH-541447-R9

HOUSING, UPPER

Note: WILL WORK FOR IH-490705-R1

$

$

Currently unavailable

38

Cub Cadet IH-490725-R1

SCREW, TAPPING

$

$

Not available

39

Cub Cadet IH-17006-R1

BALL, 3/16 GRADE 25 METAL

$

$

Not available

40

Cub Cadet IH-490727-R1

SPRING, DETENT

$

$

Not available

41

Cub Cadet IH-490728-R1

WASHER, WAVE

$

$

Not available

42

Cub Cadet IH-490729-R1

INSERT, NYLON

$

$

Not available

43

Cub Cadet IH-490730-R1

COVER, NYLON

$

$

Currently unavailable

44

Cub Cadet IH-167084

SCREW, 10-24 X 1/2 C-Z PAN-HD TAP
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet IH-490731-R2

SHIFTER, HANDLE

$

$

Currently unavailable

46

Cub Cadet IH-173808-C1

KNOB, SHIFTER
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

47

Cub Cadet IH-490733-R1

WASHER, THRUST .093

Note: SERIAL NO. 35586 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-493515-R1

WASHER, THRUST .082

Note: SERIAL NO. 35587 AND ABOVE

$

$

Currently unavailable

48

Cub Cadet IH-23472-R1

PIN, 1/4 X 1-1/8 MED COILED SPRING

$

$

Currently unavailable

49

Cub Cadet IH-373523-R1

RING, RETAINING .048 X .042

Note: SERIAL NO. 35586 AND BELOW

$

$

Not available

50

Cub Cadet IH-373523-R1

RING, RETAINING .048 X .042

Note: SERIAL NO. 35586 AND BELOW

$

$

Not available

Cub Cadet IH-269174-R1

RING. RETAINING .579 X .035
(Superseded to 916-0115)

Note: SERIAL NO. 35587 AND ABOVE

$

$

Not available
