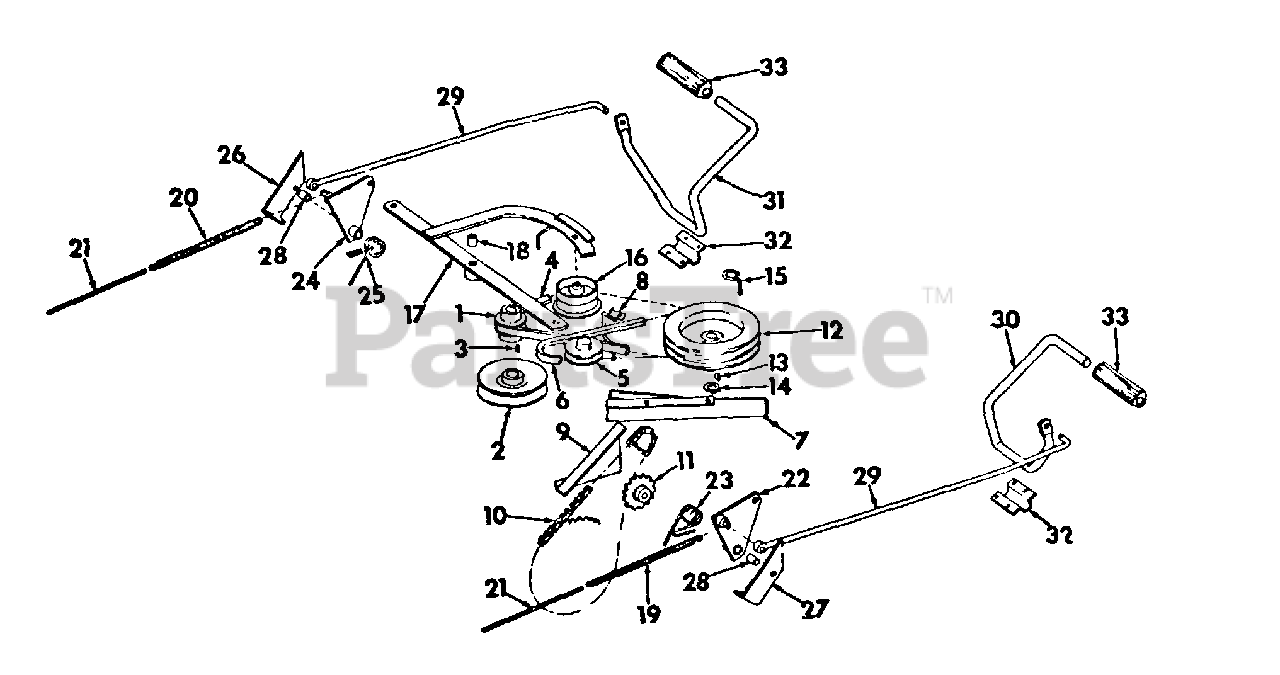

60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Transmission Drive Parts Diagram

Riding Mower

Transmission Drive Parts Diagram

  • Title

1

Cub Cadet IH-487991-R1

PULLEY, FORWARD DRIVE

$

$

Not available

2

Cub Cadet IH-489411-R1

PULLEY ASSY, MOWER DRIVE

$

$

Not available

Cub Cadet IH-202109-R1

SCREW, 3/8-24 X 1-1/8 C-1 HEX-HD NYLON PELLET INSERT

$

$

Currently unavailable

Cub Cadet IH-490196-R1

WASHER, 13/32 X 1-1/4 X 180
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

3

Cub Cadet IH-124546

KEY, 5/32 X 5/8 SAE 6 WOODRUFF

$

$

Not available

4

Cub Cadet IH-487994-R1

BELT, FORWARD DRIVE

$

$

Not available

5

Cub Cadet IH-487995-R1

PULLEY, REVERSE DRIVE

$

$

Not available

Cub Cadet IH-102571

SCREW, 1/4-20 X 5/16 HEX-SOC-HD CUP-PT SET

$

$

Not available

6

Cub Cadet IH-487996-R1

BELT, REVERSE DRIVE

$

$

Not available

7

Cub Cadet IH-487997-R1

GUIDE ASSY, BELT

$

$

Currently unavailable

Cub Cadet IH-102376

NUT, 5/16-18 HEX

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 C-Z HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

8

Cub Cadet IH-488000-R2

GUIDE ASSY, BELT

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

9

Cub Cadet IH-541858-R1

SHIELD, DRIVE CHAIN

Note: WILL WORK FOR IH-488003-R1

$

$

Currently unavailable

10

Cub Cadet IH-488004-R1

CHAIN, FINAL REDUCTION

$

$

Not available

Cub Cadet IH-1306D

LINK, #41 SINGLE PITCH CONNECTING
(Superseded to 913-0723)

$

$

Not available

Cub Cadet IH-541308D

LINK, #41 SINGLE PITCH OFFSET

$

$

Currently unavailable

10

Cub Cadet IH-312-R1

CHAIN, FINAL REDUCTION

$

$

Currently unavailable

Cub Cadet IH-1306-D

LINK, #41 SINGLE PITCH CONNECTING
(Superseded to 913-0723)

$

$

Not available

11

Cub Cadet IH-490376-R1

SPROCKET, CHAIN IDLER - 15 T

Note: SERIAL NO 47584 AND BELOW

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-22229-R1

SCREW, 1/2-13 X 2-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-151795-R1

WASHER, 17/32 X 27/32 X 120

$

$

Currently unavailable

Cub Cadet IH-135629

WASHER, 1/2 C-2 TYPE A EXT-TOOTH LOCK

$

$

Currently unavailable

12

Cub Cadet IH-488006-R1

PULLEY, TRANSMISSION DRIVE

$

$

Currently unavailable

13

Cub Cadet IH-124549

KEY, 3/16 X 3/4 WOODRUFF 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet IH-269174-R1

RING, RETAINING
(Superseded to 916-0115)

$

$

Not available

15

Cub Cadet IH-541311-R1

GUIDE ASSY, BELT

Note: WILL WORK FOR IH-485210-R1

$

$

Currently unavailable

16

Cub Cadet IH-488007-R1

PULLEY, FORWARD REVERSE IDLER

$

$

Not available

Cub Cadet IH-490273-R91

PULLEY, FORWARD REVERSE IDLER

$

$

Not available

Cub Cadet IH-15039-R1

BOLT, 3/8 X 1-1/2 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-114503

NUT, 3/8-16 HEX JAM

$

$

Currently unavailable

17

Cub Cadet IH-488009-R1

ARM ASSY, SHIFTER PIVOT

$

$

Currently unavailable

18

Cub Cadet IH-488015-R1

BUSHING, SHIFTER ARM

$

$

Not available

Cub Cadet IH-21079-R1

SCREW W/NYLON PELLET INSERT, 3/8-16 X 1-1/2 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-178372-R1

WASHER, 13/32 X 1-1/4 X 16 GA

$

$

Currently unavailable

19

Cub Cadet IH-489082-R1

SPRING, DRIVE TENSION FORWARD

$

$

Not available

20

Cub Cadet IH-489083-R1

SPRING, DRIVE TENSION REVERSE

$

$

Not available

21

Cub Cadet IH-489084-R1

ROD, SPRING

$

$

Not available

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179798

SCREW, 1/4-20 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

22

Cub Cadet IH-488022-R1

LEVER ASSY, CONTROL RH

$

$

Currently unavailable

23

Cub Cadet IH-488214-R2

SPRING, RETURN RH

$

$

Not available

24

Cub Cadet IH-488021-R1

LEVER ASSY, CONTROL LH

$

$

Currently unavailable

25

Cub Cadet IH-488213-R2

SPRING, RETURN LH

$

$

Not available

Cub Cadet IH-120394

WASHER, 13/32 X 13/16 X 065
(Superseded to 936-0140)

$

$

Not available

26

Cub Cadet IH-489085-R1

PLATE, STOP LH

$

$

Currently unavailable

27

Cub Cadet IH-489086-R1

PLATE, STOP RH

$

$

Currently unavailable

28

Cub Cadet IH-488026-R1

BUSHING, CONTROL LEVER

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 HEX
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-180128

SCREW, 3/8-16 X 1-3/4 HEX-HD CAP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-488028-R1

ROD, CONTROL

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

30

Cub Cadet IH-488033-R1

ROD, TRANSMISSION CONTROL PEDAL RH

Note: FURNISH IH-493724-R1 AND PIN, IH-19372-R1

$

$

Currently unavailable

Cub Cadet IH-19310-R1

PIN, 3/32 X 5/8 HV COILED SPRING

$

$

Currently unavailable

30

Cub Cadet IH-493724-R1

ROD TRANSMISSION CONTROL PEDAL RH

$

$

Currently unavailable

Cub Cadet IH-19372-R1

PIN 1/8 X 7/8 C-Z HV COILED SPRING
(Superseded to 715-3017)

$

$

Not available

31

Cub Cadet IH-488032-R1

ROD, TRANSMISSION CONTROL PEDAL LH

Note: FURNISH IH-493530-R1 AND PIN, IH-19372-R1

$

$

Currently unavailable

Cub Cadet IH-19310-R1

PIN, 3/32 X 5/8 HV COILED SPRING

$

$

Currently unavailable

31

Cub Cadet IH-493530-R1

ROD TRANSMISSION CONTROL PEDAL LH

$

$

Not available

Cub Cadet IH-19372-R1

PIN, 1/8 X 7/8 C-Z HV COILED SPRING
(Superseded to 715-3017)

$

$

Not available

32

Cub Cadet IH-488034-R1

CLAMP, PEDAL PIVOT

$

$

Currently unavailable

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

33

Cub Cadet IH-487961-R1

PEDAL, FOOT

$

$

Not available
