60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Seat & Support Parts Diagram

Riding Mower

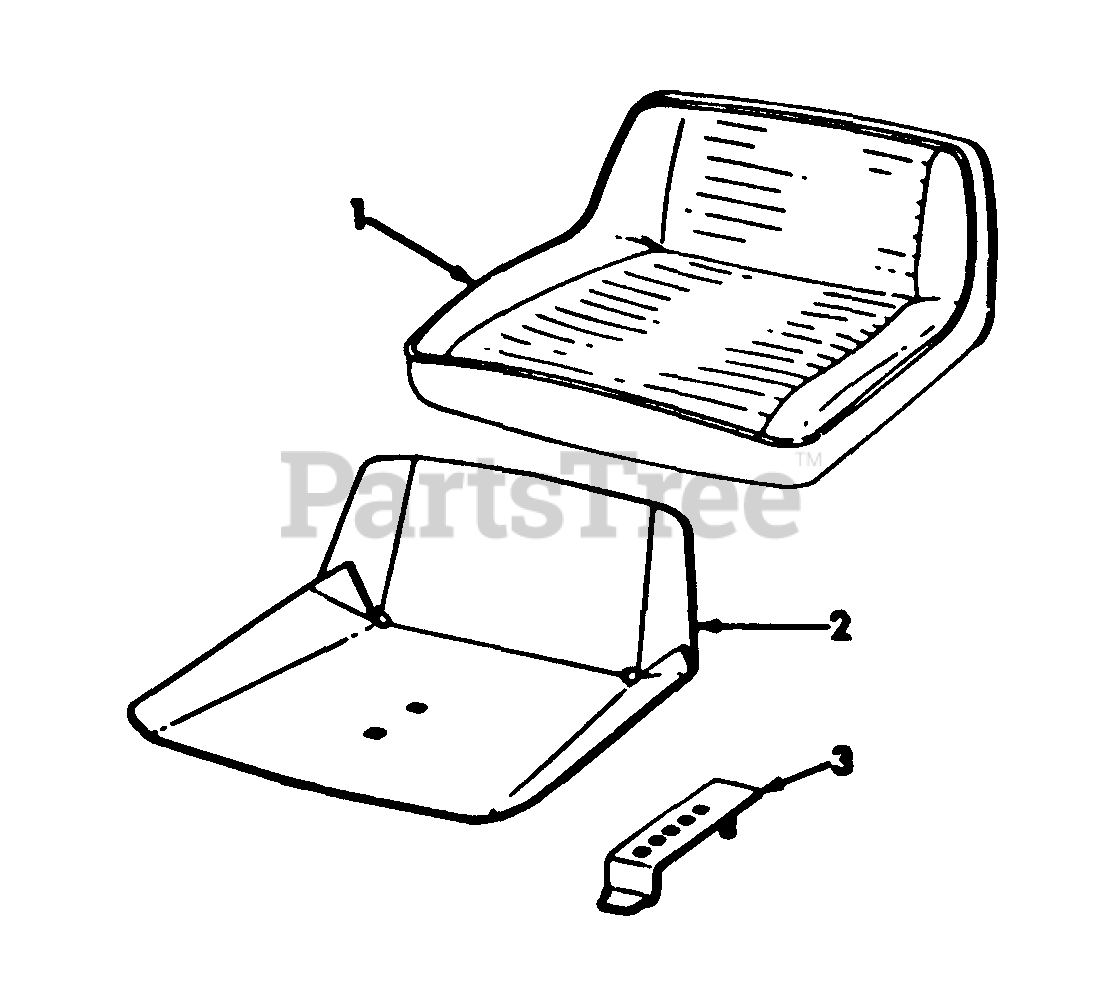

Seat & Support Parts Diagram

  • Title

1

Cub Cadet IH-539238-R5

SEAT, CUSHION

Note: WILL WORK FOR IH-488922-R1

$

$

Currently unavailable

2

Cub Cadet IH-534243-R91

PACKAGE, SEAT SERVICE

Note: WILL WORK FOR IH-488512-R1-

$

$

Currently unavailable

SEAT

Note: Not Available Seperately

$

$

Not available

Cub Cadet IH-180173

BOLT, 1/2 X 1 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-180173

SCREW, 1/2-13 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 ZND MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-18508-R1

BOLT, 3/8 X 3/4 C-Z SHORT SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120394

WASHER, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-17044-R1

NUT, 3/8-16 C-Z HEX LOCK

$

$

Currently unavailable

3

Cub Cadet IH-487964-R1

SUPPORT ASSY, SEAT ADJ

$

$

Not available

Cub Cadet IH-126032

NUT, 3/8 WING

$

$

Not available
