60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Engine Parts Diagram

Riding Mower

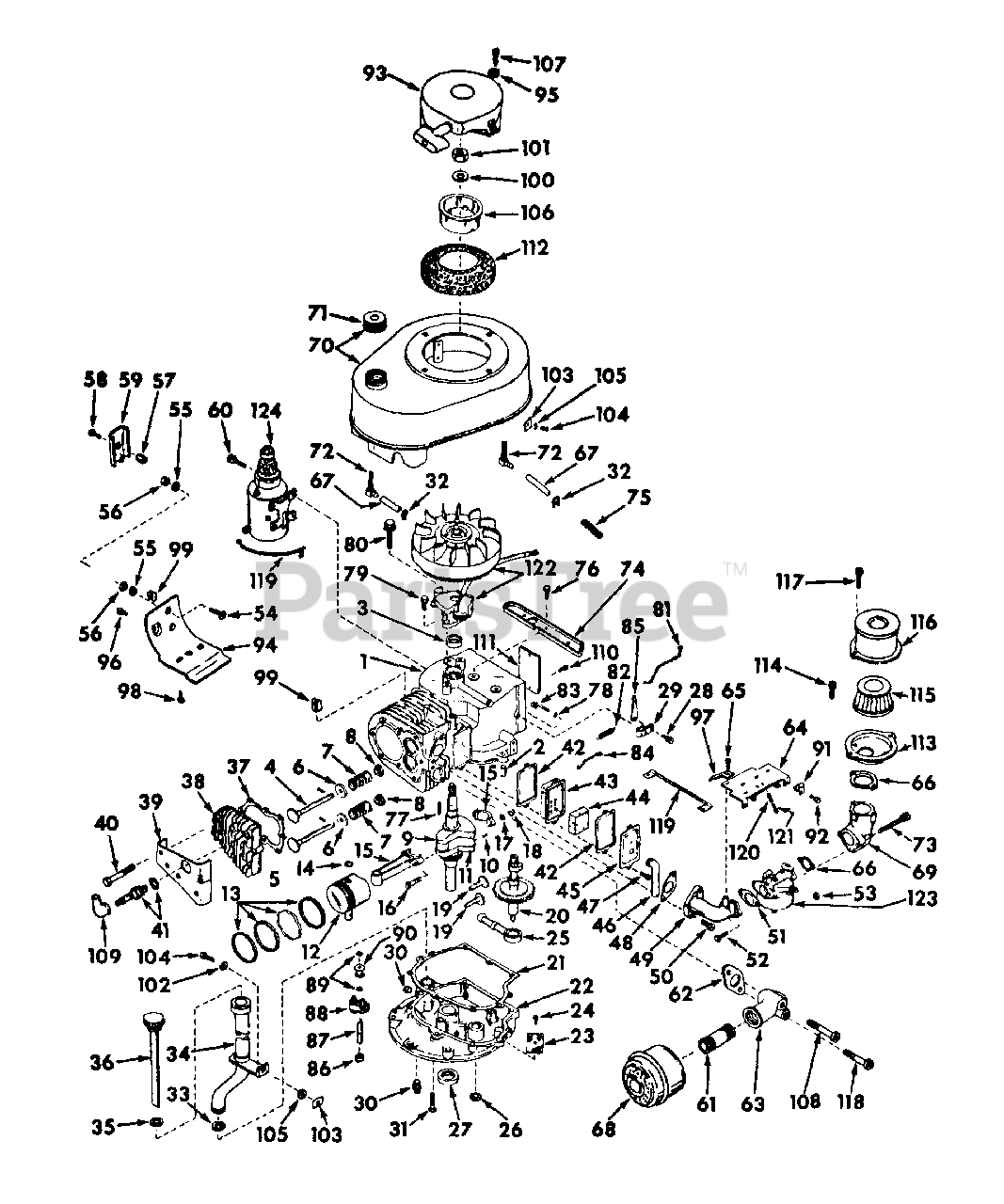

Engine Parts Diagram

  • Title

ENGINE ASSEMBLY -6 HP-

Note: TECUMSEH V-60-70149F; -EQUIPPED WITH ELECTRIC STARTER- -LESS MUFFLER AND RECTIFIER- -ORDER SHORT BLOCK, IH-490560-R91 AND GASKET SET, IH-488688-R91-

$

$

Not available

Cub Cadet IH-665447-R1

SCREW W/NYLON PELLET INSERT 5/16-18 X 3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

ENGINE ASSEMBLY -6 HP-

Note: TECUMSEH V-60-70148F; -EQUIPPED WITH RECOIL STARTER- -LESS MUFFLER- -ORDER SHORT BLOCK, IH-490560-R91 AND GASKET SET, IH-488688-R91-

$

$

Not available

Cub Cadet IH-665447-R1

SCREW W/NYLON PELLET INSERT 5/16-18 X 3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

1

Cub Cadet IH-490560-R91

BLOCK ASSY, SHORT

$

$

Currently unavailable

2

PIN, DOWEL

Note: Not Available Seperately

$

$

Not available

3

Cub Cadet IH-488532-R91

SEAL, OIL

$

$

Currently unavailable

4

Cub Cadet IH-488533-R1

VALVE, INTAKE - STD

$

$

Currently unavailable

5

Cub Cadet IH-488536-R1

VALVE, EXHAUST - STD

$

$

Not available

6

CAP, UPPER VALVE SPRING

Note: Not Available Seperately

$

$

Not available

7

SPRING, VALVE

Note: Not Available Seperately

$

$

Not available

8

Cub Cadet IH-488540-R1

CAP, LOWER VALVE SPRING
(Superseded to TC-32581)

$6.49

$

In Stock, Qty 10

0

9

Cub Cadet IH-488707-R91

CRANKSHAFT ASSY

Note: INCLUDES REF NOS 10 AND 11

$

$

Currently unavailable

10

SPIN, CRANKSHAFT GEAR

Note: Not Available Seperately

$

$

Not available

11

GEAR CRANKSHAFT

Note: Not Available Seperately

$

$

Not available

12

Cub Cadet IH-488545-R1

PISTON AND PIN ASSY, STD

$

$

Currently unavailable

13

Cub Cadet IH-488549-R91

RING SET, PISTON - STD

$

$

Not available

13

Cub Cadet IH-488550-R91

RING SET, PISTON - #10 OVERSIZE

$

$

Currently unavailable

14

Cub Cadet IH-488546-R1

RING, PISTON PIN RETAINING

$

$

Currently unavailable

15

Cub Cadet IH-488708-R91

ROD ASSY, CONNECTING

Note: INCLUDES REF NOS 16 AND 17

$

$

Not available

16

BOLT, CONNECTING ROD

Note: Not Available Seperately

$

$

Not available

17

Cub Cadet IH-131402-H

WASHER, 11/32 X 9/16 X 16 GA

$

$

Currently unavailable

18

Cub Cadet IH-488686-R1

NUT, 5/16-24 HEX

$

$

Currently unavailable

19

VALVE, LIFTER

Note: Not Available Seperately

$

$

Not available

20

Cub Cadet IH-488556-R1

CAMSHAFT ASSY

$

$

Currently unavailable

21

Cub Cadet IH-488689-R1

GASKET, MOUNTING FLANGE

$

$

Not available

22

FLANGE ASSY, MOUNTING

Note: ORDER COMPONENT PARTS

$

$

Not available

23

SCREEN, OIL FILTER

Note: Not Available Seperately

$

$

Not available

24

SCREW, 8-32 X 5/16 HEX-HD

Note: Not Available Seperately

$

$

Not available

25

PUMP ASSY, OIL

Note: Not Available Seperately

$

$

Not available

26

Cub Cadet IH-488560-R91

SEAL, OIL

$

$

Not available

27

Cub Cadet IH-488561-R91

SEAL, OIL

$

$

Not available

28

Cub Cadet IH-488564-R1

SCREW, 8-32 X 3/8 HEX. WASHER HD

$

$

Currently unavailable

29

CLAMP, GOVERNOR LEVER

Note: Not Available Seperately

$

$

Not available

30

Cub Cadet IH-20967-R1

PLUG, 1/4 MALL C-Z SQ-HD PIPE

$

$

Currently unavailable

31

SCREW, 1/4-20 X 1-1/4 HEX-HD

Note: Not Available Seperately

$

$

Not available

32

Cub Cadet IH-299486-R1

CLAMP, HOSE

$

$

Currently unavailable

33

Cub Cadet IH-379181-R1

O-RING, 5/8 X 3/4 X 1/16

$

$

Not available

34

Cub Cadet IH-488568-R1

TUBE, OIL FILLER

$

$

Currently unavailable

35

Cub Cadet IH-350818-R1

O-RING, 1 X 1-1/4 X 1/8

$

$

Not available

36

Cub Cadet IH-488569-R91

PLUG AND GAUGE ASSY, OIL

$

$

Currently unavailable

37

Cub Cadet IH-488690-R2

GASKET, CYLINDER HEAD

$

$

Not available

38

Cub Cadet IH-488570-R1

HEAD, CYLINDER

$

$

Not available

39

COVER, CYLINDER

Note: Not Available Seperately

$

$

Not available

40

Cub Cadet IH-488572-R1

SCREW, 5/16-18 X 2-1/2 HEX-HD CAP

$

$

Currently unavailable

41

Cub Cadet IH-J8

PLUG, SPARK -CHAMPION-

$

$

Currently unavailable

42

Cub Cadet IH-488691-R1

GASKET, VALVE CHAMBER COVER
(Superseded to TC-27896A)

$1.49

$

In Stock, Qty 10

0

43

BODY, BREATHER

Note: Not Available Seperately

$

$

Not available

44

Cub Cadet IH-488575-R1

ELEMENT, BREATHER
(Superseded to TC-28424)

$3.99

$

In Stock, only 3 left!

0

45

COVER, VALVE CHAMBER

Note: Not Available Seperately

$

$

Not available

46

Cub Cadet IH-488577-R1

TUBE, BREATHER

$

$

Currently unavailable

47

SCREW AND LOCKWASHER ASSY

Note: Not Available Seperately

$

$

Not available

48

Cub Cadet IH-488692-R1

GASKET, INTAKE PIPE
(Superseded to TC-27915A)

$5.99

$

In Stock, Qty 20+

0

49

PIPE, INTAKE

Note: Not Available Seperately

$

$

Not available

50

Cub Cadet IH-21562-R1

SCREW W/LOCKWASHER, 5/16-18 X 1-1/8 CR-REC-FIL-HD

$

$

Currently unavailable

51

Cub Cadet IH-488693-R1

GASKET, CARBURETOR
(Superseded to TC-26756)

$2.99

$

In Stock, Qty 8

0

52

Cub Cadet IH-181314

SCREW, 1/4-28 X 7/8 C-Z HEX-HD CAP

$

$

Currently unavailable

53

NUT AND WASHER ASSY

Note: Not Available Seperately

$

$

Not available

54

Cub Cadet IH-23156-R1

SCREW, 5-40 X 9/16 C-Z CR-REC-PAN-HD MACH

Note: FOR ELECTRIC START ENGINE

$

$

Currently unavailable

55

Cub Cadet IH-426231

WASHER, NO. 5 HV LOCK

Note: FOR ELECTRIC START ENGINE

$

$

Currently unavailable

56

Cub Cadet IH-426324

NUT, 5-40 C-Z HEX MACH SCREW

Note: FOR ELECTRIC START ENGINE

$

$

Currently unavailable

57

NUT, LONG

Note: FOR ELECTRIC START ENGINE; Not Available Seperately

$

$

Not available

58

Cub Cadet IH-21565-R1

SCREW, 5-40 X 3/8 SLT-RD-HD MACH

Note: FOR ELECTRIC START ENGINE

$

$

Currently unavailable

59

COVER, RECTIFIER PANEL

Note: FOR ELECTRIC START ENGINE; Not Available Seperately

$

$

Not available

60

SCREW AND LOCK WASHER ASSY

Note: FOR ELECTRIC START ENGINE; Not Available Seperately

$

$

Not available

61

Cub Cadet IH-144613

NIPPLE, 3/4 X 2-1/2 PIPE

Note: FOR RECOIL START ENGINE

$

$

Currently unavailable

62

Cub Cadet IH-489482-R1

GASKET

$

$

Not available

63

Cub Cadet IH-489483-R1

ELBOW, EXHAUST

$

$

Currently unavailable

64

Cub Cadet IH-488695-R1

CONTROL ASSY, SPEED

$

$

Currently unavailable

Cub Cadet IH-489150-R1

WASHER

$

$

Currently unavailable

65

SCREW AND LOCKWASHER ASSY

Note: Not Available Seperately

$

$

Not available

66

Cub Cadet IH-488694-R1

GASKET, AIR CLEANER
(Superseded to TC-27272A)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet IH-488583-R1

LINE, FUEL

$

$

Currently unavailable

68

Cub Cadet IH-488584-R1

MUFFLER

$

$

Not available

69

ELBOW, AIR CLEANER

Note: Not Available Seperately

$

$

Not available

70

Cub Cadet IH-488586-R1

TANK ASSY, FUEL

$

$

Currently unavailable

71

CAP, FUEL

Note: Not Available Seperately

$

$

Not available

72

Cub Cadet IH-488588-R1

FITTING, STRAINER AND ELBOW

$

$

Not available

73

Cub Cadet IH-454416

SCREW W/SPRING, LOCK WASHER

$

$

Currently unavailable

74

BRACKET, BLOWER HOUSING

Note: Not Available Seperately

$

$

Not available

75

SPRING, COIL

Note: Not Available Seperately

$

$

Not available

76

Cub Cadet IH-191509

SCREW W/EXT TOOTH LOCK WASHER, 1/4-20 X 5/8 HEX-HD MACH

$

$

Currently unavailable

77

Cub Cadet IH-488591-R1

KEY, FLYWHEEL

$

$

Not available

78

WASHER, FLAT

Note: Not Available Seperately

$

$

Not available

79

SCREW AND WASHER ASSY

Note: 2 USED FOR RECOIL. 1 FOR ELECTRIC ENGINE; Not Available Seperately

$

$

Not available

80

SCREW AND WASHER

Note: FOR ELECTRIC ENGINE

$

$

Not available

81

Cub Cadet IH-488593-R1

LINK, THROTTLE

$

$

Not available

82

Cub Cadet IH-488594-R1

SPRING, GOVERNOR

$

$

Not available

83

Cub Cadet IH-488595-R1

ROD, GOVERNOR

$

$

Not available

84

Cub Cadet IH-488597-R1

LINK, GOVERNOR SPRING

$

$

Not available

85

LEVER, GOVERNOR

Note: Not Available Seperately

$

$

Not available

86

SPACER

Note: Not Available Seperately

$

$

Not available

87

SHAFT, MECHANICAL GOVERNOR

Note: Not Available Seperately

$

$

Not available

88

Cub Cadet IH-488600-R1

GEAR ASSY, GOVERNOR
(Superseded to TC-30591)

$13.99

$

In Stock, only 1 left!

0

89

Cub Cadet IH-233045-R1

RING, RETAINING

$

$

Currently unavailable

90

Cub Cadet IH-488601-R1

SPOOL, GOVERNOR
(Superseded to TC-30588A)

$1.99

$

In Stock, only 4 left!

0

91

CLIP, CONDUIT

Note: Not Available Seperately

$

$

Not available

92

Cub Cadet IH-425623

SCREW W/EXT TOOTH LOCK WASHER, 10-32 X 3/8 HEX-HD MACH

$

$

Currently unavailable

93

Cub Cadet IH-488675-R91

STARTER ASSY REWIND
(Superseded to TC-590420A)

Note: FOR COMPONENTS SEE "REWIND STARTER" ILLUSTRATION AND PARTS LIST.

$68.99

$

In Stock, only 1 left!

0

94

EXTENSION, BLOWER HOUSING

Note: Not Available Seperately

$

$

Not available

95

Cub Cadet IH-21784-R1

WASHER, 17/64 X 1/2 X 16 GA
(Superseded to KH-X-25-63)

$

$

Not available

96

SCREW AND LOCK WASHER ASSY

Note: FOR RECOIL START ENGINE; Not Available Seperately

$

$

Not available

96

SCREW AND LOCK WASHER ASSY

Note: FOR ELECTRIC START ENGINE; Not Available Seperately

$

$

Not available

97

CLIP, FUEL LINE

Note: Not Available Seperately

$

$

Not available

98

SCREW AND LOCK WASHER ASSY

Note: Not Available Seperately

$

$

Not available

99

CLIP, HI-TENSION WIRE RETAINING

Note: Not Available Seperately

$

$

Not available

100

WASHER, BELLEVILLE

Note: Not Available Seperately

$

$

Not available

101

Cub Cadet IH-103028

NUT, 1/2-20 HEX.

$

$

Currently unavailable

102

Cub Cadet IH-131402-H

WASHER, 11/32 X 9/16 X 16 GA

$

$

Currently unavailable

103

PLATE, SECURING

Note: Not Available Seperately

$

$

Not available

104

Cub Cadet IH-225592

SCREW, 5/16-24 X 3/4 C-Z SLT-FIL-HD MACH

$

$

Currently unavailable

105

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

106

Cub Cadet IH-488612-R1

CUP, STARTER

$

$

Not available

107

Cub Cadet IH-488613-R1

SCREW W/EXT TOOTH LOCK WASHER

$

$

Currently unavailable

108

Cub Cadet IH-179827

SCREW, 5/16-18 X 2-1/4 HEX-HD CAP

$

$

Currently unavailable

109

COVER, SPARK PLUG

Note: Not Available Seperately

$

$

Not available

110

Cub Cadet IH-145377

SCREW, NO. 4 X 5/16 C-Z RD-HD BLUNT METAL DRIVE

$

$

Currently unavailable

111

PLATE, IDENTIFICATION

Note: Not Available Seperately

$

$

Not available

112

SCREEN, STARTER CAP

Note: Not Available Seperately

$

$

Not available

113

BRACKET, AIR CLEANER

Note: Not Available Seperately

$

$

Not available

114

Cub Cadet IH-21566-R1

SCREW W/SPRING LOCK WASHER

$

$

Currently unavailable

115

Cub Cadet IH-488619-R1

ELEMENT, CLEANER
(Superseded to TC-30727)

$7.49

$

In Stock, only 2 left!

0

116

Cub Cadet IH-488621-R1

BODY, AIR CLEANER
(Superseded to TC-31715)

$21.99

$

In Stock, Qty 7

0

117

Cub Cadet IH-131963

SCREW, 8-32 X 3/8 C-Z FIL-HD MACH

$

$

Currently unavailable

118

Cub Cadet IH-179829

SCREW, 5/16-18 X 2-3/4 HEX-HD CAP

$

$

Currently unavailable

119

WIRE, GROUND

Note: FOR RECOIL START ENGINE; Not Available Seperately

$

$

Not available

WIRE GROUND

Note: FOR ELECTRIC START ENGINE; Not Available Seperately

$

$

Not available

120

Cub Cadet IH-488625-R1

SPRING, COMPRESSION

$

$

Currently unavailable

121

Cub Cadet IH-224979

SCREW, 5-40 X 7/16 C-Z FIL-HD MACH

$

$

Currently unavailable

122

Cub Cadet IH-488626-R91

MAGNETO

Note: FOR RECOIL START ENGINE

$

$

Currently unavailable

Cub Cadet IH-488743-R91

MAGNETO

Note: FOR ELECTRIC START ENGINE; FOR COMPONENTS SEE "MAGNETO - RECOIL START ENGINE" ILLUSTRATION AND PARTS LIST.

$

$

Currently unavailable

123

Cub Cadet IH-488645-R91

CARBURETOR ASSY

Note: FOR COMPONENTS SEE "CARBURETOR" ILLUSTRATION AND PARTS LIST.

$

$

Not available

124

Cub Cadet IH-490736-R91

MOTOR, STARTER

Note: FOR COMPONENTS SEE "STARTER MOTOR" ILLUSTRATION AND PARTS LIST.

$

$

Currently unavailable

Cub Cadet IH-488688-R91

GASKET SET

Note: CONSISTS OF REF NOS 3, 21, 27, 37, 42, 48, 51 AND 66

$

$

Not available
