60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Disc Brake Connections Parts Diagram

Riding Mower

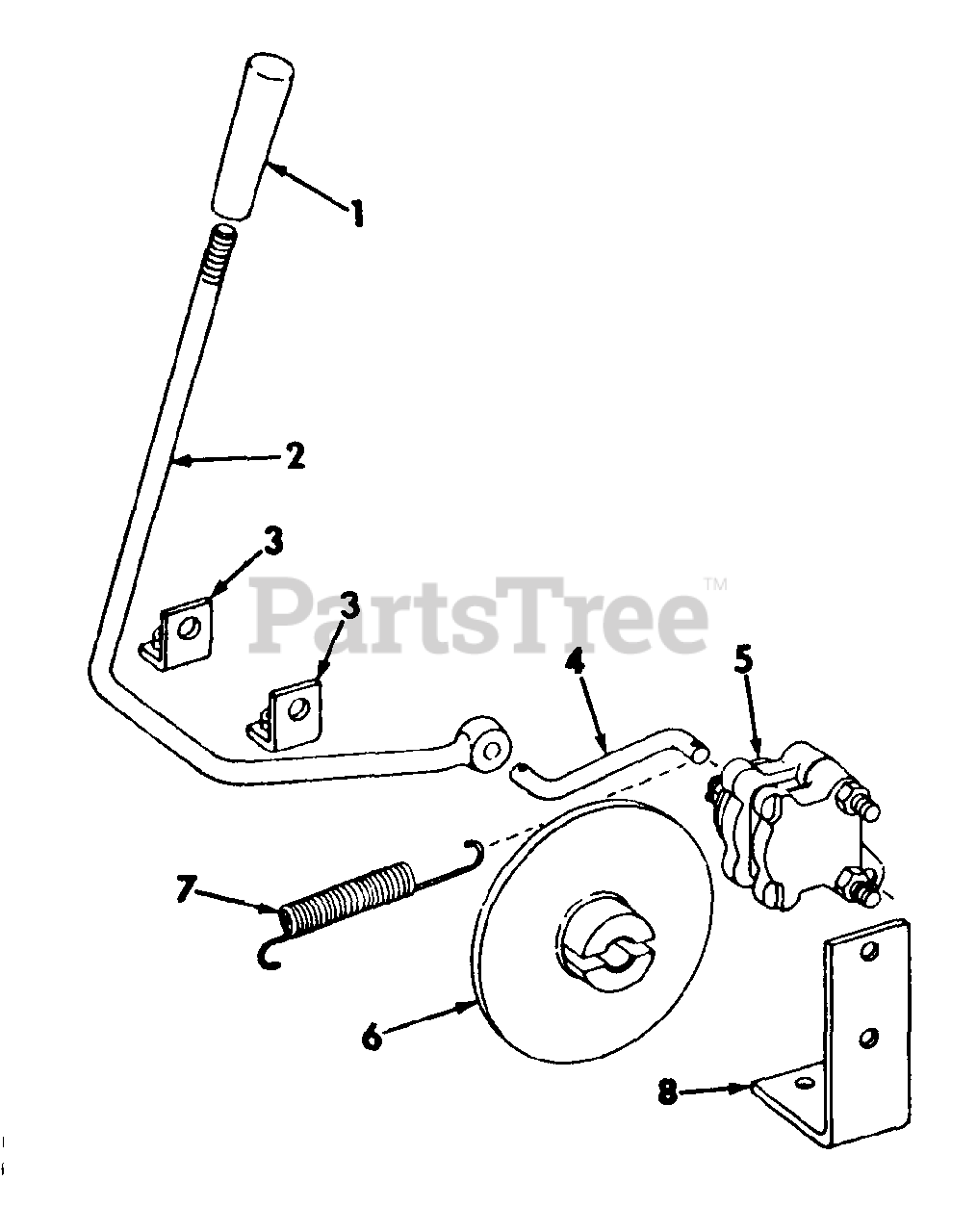

Disc Brake Connections Parts Diagram

  • Title

1

Cub Cadet IH-390001-R1

GRIP, SHIFTER HANDLE

$

$

Not available

2

Cub Cadet IH-489421-R1

LEVER, PARK BRAKE

$

$

Currently unavailable

3

Cub Cadet IH-489419-R1

BRACKET ASSY, BRAKE LEVER

$

$

Currently unavailable

Cub Cadet IH-180073

SCREW, 5/16-18 X 1/2 HEX-HD CAP
(Superseded to 710-3039)

$

$

Not available

4

Cub Cadet IH-489418-R1

LINK, BRAKE

$

$

Currently unavailable

Cub Cadet IH-619855-R1

WASHER, 11/32 X 3/4 X .59 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-107762

PIN, 3/32 X 5/8 PLAIN COTTER
(Superseded to 714-3010)

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet IH-489416-R1

BRAKE, DISC

Note: FOR COMPONENTS, SEE "DISC BRAKE" ILLUSTRATION AND PARTS LIST.

$

$

Currently unavailable

6

Cub Cadet IH-384648-R11

HUB ASSY, BRAKE DISC
(Superseded to 903-0213)

$190.99

$

In Stock, only 3 left!

0

Cub Cadet IH-19791-R1

PIN, 1/4 X 1-1/8 HV COILED SPRING
(Superseded to 915-3014)

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-489417-R1

SPRING, BRAKE RETURN

$

$

Not available

8

Cub Cadet IH-489415-R1

BRACKET, BRAKE

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 HEX. C-Z
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180073

SCREW, 5/16-18 X 1/2 C-Z HEX-HD CAP
(Superseded to 710-3039)

$

$

Not available
