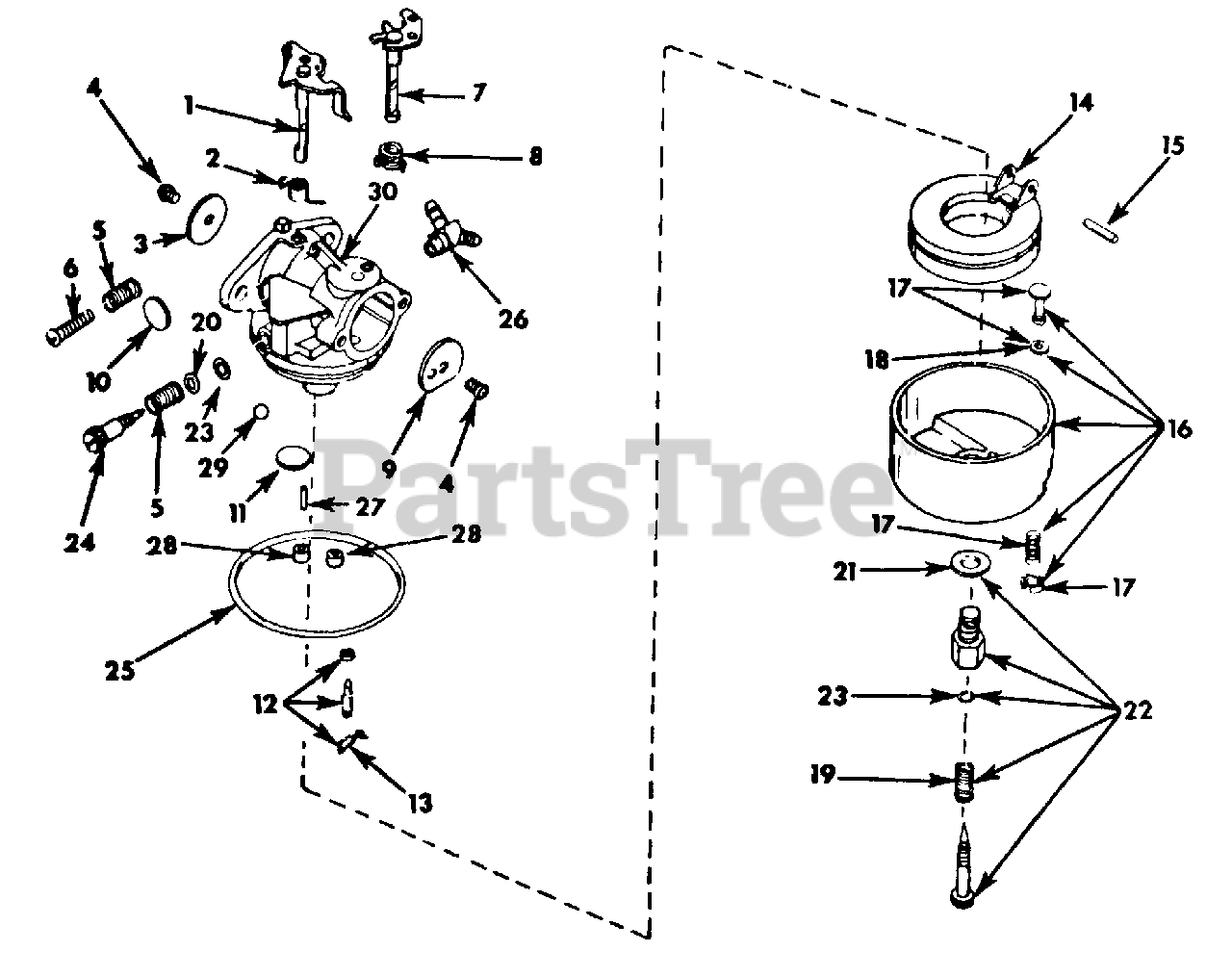

60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Carburetor Parts Diagram

Riding Mower

Carburetor Parts Diagram

  • Title

Cub Cadet IH-488645-R91

CARBURETOR ASSY

$

$

Not available

1

Cub Cadet IH-488646-R1

SHAFT AND LEVER ASSY, THROTTLE

$

$

Not available

2

SPRING, THROTTLE RETURN

Note: Not Available Seperately

$

$

Not available

3

SHUTTER, THROTTLE

Note: Not Available Seperately

$

$

Not available

4

SCREW, 4-40 X 3/16 RD-HD

Note: Not Available Seperately

$

$

Not available

5

SPRING, IDLE REGULATING SCREW

Note: Not Available Seperately

$

$

Not available

6

Cub Cadet IH-132768

SCREW, 8-32 X 3/4 C-2 SLT-RD-HD MACH

$

$

Currently unavailable

7

SHAFT AND LEVER ASSY, CHOKE

Note: Not Available Seperately

$

$

Not available

8

SPRING, CHOKE RETURN

Note: Not Available Seperately

$

$

Not available

9

SHUTTER, CHOKE

Note: Not Available Seperately

$

$

Not available

10

PLUG, WELCH

Note: Not Available Seperately

$

$

Not available

11

PLUG, WELCH

Note: Not Available Seperately

$

$

Not available

12

NEEDLE SEAT CLIP ASSY, INLET

Note: ORDER KIT, IH-488665-R91; Not Available Seperately

$

$

Not available

13

Cub Cadet IH-488667-R1

CLIP, INLET NEEDLE
(Superseded to TC-631029)

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet IH-488657-R1

FLOAT, CARBURETOR
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 10

0

15

SPIN, FLOAT

Note: ORDER KIT, IH-488665-R91; Not Available Seperately

$

$

Not available

16

Cub Cadet IH-488658-R91

BOWL AND DRAIN ASSY, FLOAT
(Superseded to TC-631867)

$3.49

$

In Stock, Qty 12

0

17

DRAIN ASSY, BOWL

Note: Not Available Seperately

$

$

Not available

18

Cub Cadet IH-488660-R1

GASKET, DRAIN PLUNGER
(Superseded to TC-27554)

$1.49

$

In Stock, Qty 16

0

19

SPRING, MAIN ADJUSTMENT SCREW

Note: Not Available Seperately

$

$

Not available

20

Cub Cadet IH-489151-R1

WASHER

$

$

Currently unavailable

21

GASKET, BOWL-TO-BODY

Note: ORDER KIT, IH-488665-R91; Not Available Seperately

$

$

Not available

22

SCREW ASSY, MAIN ADJ

Note: ORDER KIT, IH-488665-R91; Not Available Seperately

$

$

Not available

23

Cub Cadet IH-488672-R1

O-RING, ADJUSTMENT SCREW

$

$

Currently unavailable

24

SCREW, IDLE ADJUSTMENT

Note: ORDER KIT, IH-438665-R91; Not Available Seperately

$

$

Not available

25

GASKET, BOWL-TO-BODY

Note: ORDER KIT, IH-488665-R91; Not Available Seperately

$

$

Not available

26

FITTING, FUEL INLET TEE

Note: Not Available Seperately

$

$

Not available

27

PIN

Note: Not Available Seperately

$

$

Not available

28

PLUG, CUP

Note: DISCONTINUED FOR SERVICE

$

$

Not available

29

BALL, ALUMINUM

Note: Not Available Seperately

$

$

Not available

30

Note: NOT SERVICED SEPARATELY

$

$

Not available

Cub Cadet IH-488665-R91

KIT, CARBURETOR REPAIR
(Superseded to TC-631029)

Note: INCLUDES REF NOS 12, 15, 21, 22, 24 AND 25

$24.99

$

In Stock, only 4 left!

0
