6-9611 - Toro 54" Snow/Dozer Blade (1969) 54" BLADE Parts Diagram

54" Snow/Dozer Blade

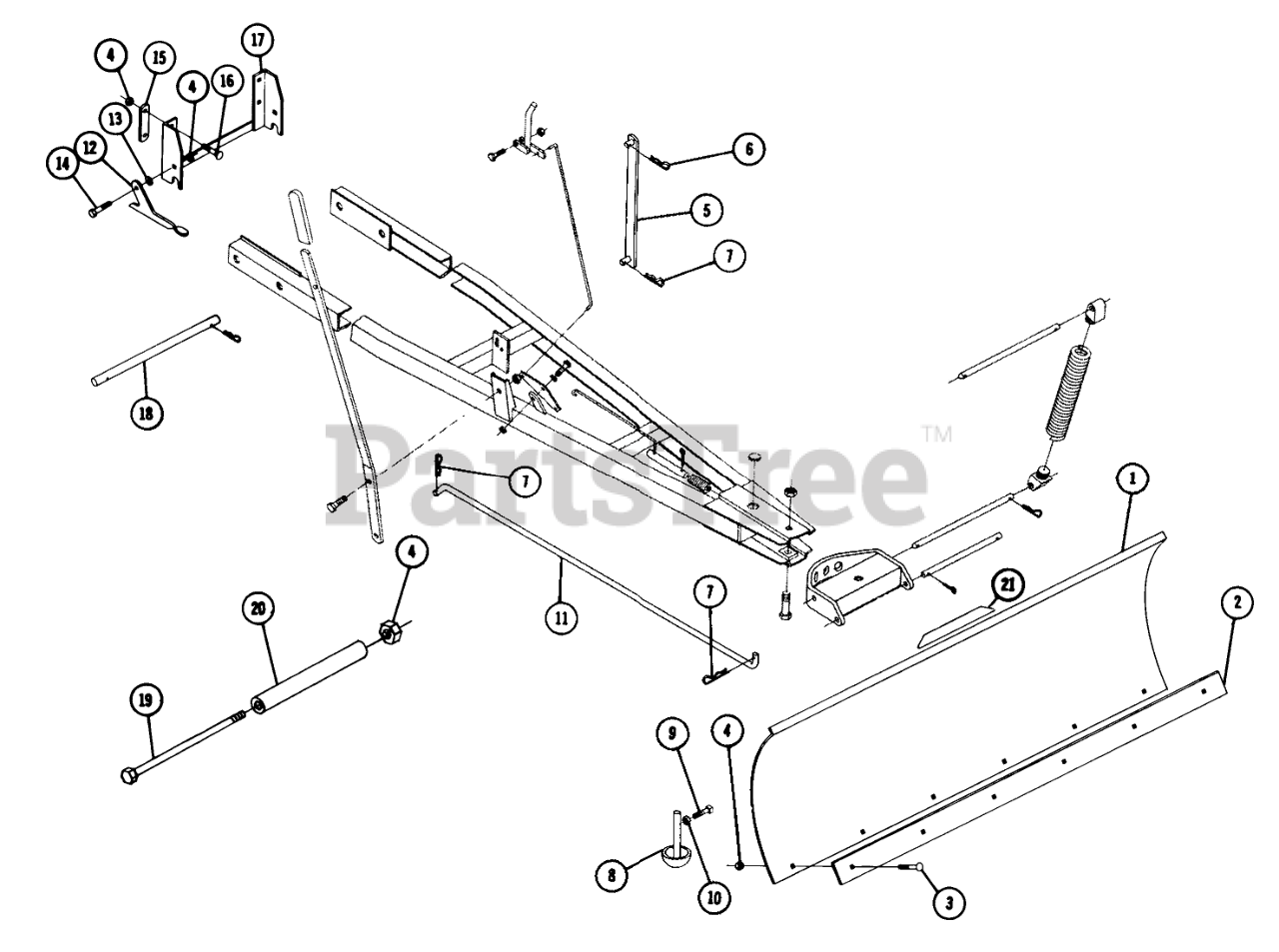

54" BLADE Parts Diagram

  • Title

1

Toro 3070

Ass-y-Blade

$

$

Not available

2

Toro 3087

Plate-Blade Edge

$

$

Not available

3

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

4

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

5

Toro 8735

Lift Bar

$

$

Not available

6

Toro 933505-4

Hairpin

$

$

Currently unavailable

7

Toro 933512-4

Hairpin

$

$

Currently unavailable

8

Toro 2399

Skid
(Superseded to 104742)

$

$

Not available

9

Toro 909551-4

Set Screw 3/8-16 x 5/8 Sq. HD.

$

$

Currently unavailable

10

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

11

Toro 5119

Rod-Blade Control

$

$

Not available

12

Toro 7704

Latch Hitch
(Superseded to 104657)

$42.99

$

Usually ships in 3-6 days

0

13

Toro 920009-4

Washer

$

$

Currently unavailable

14

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

15

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

16

Toro 900073-4

Bolt-Carr. 3/8-16 x 3 1/2

$

$

Currently unavailable

17

Toro 8010

Breather

$

$

Currently unavailable

18

Toro 9189

Shaft-Cross (6-9611 only)

$

$

Currently unavailable

19

Toro 900854-4

Bolt-Hex. 3/8-16 x 8 1/2

$

$

Currently unavailable

20

Toro 9193

Spacer (6-9611 only)

$

$

Currently unavailable

21

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available
