6-7451 - Toro 48" Snow Thrower Attachment (1973) 48" SNOW THROWER-MODEL NO. 6-7451 (SERIAL #983056 & UP) Parts Diagram

48" Snow Thrower Attachment

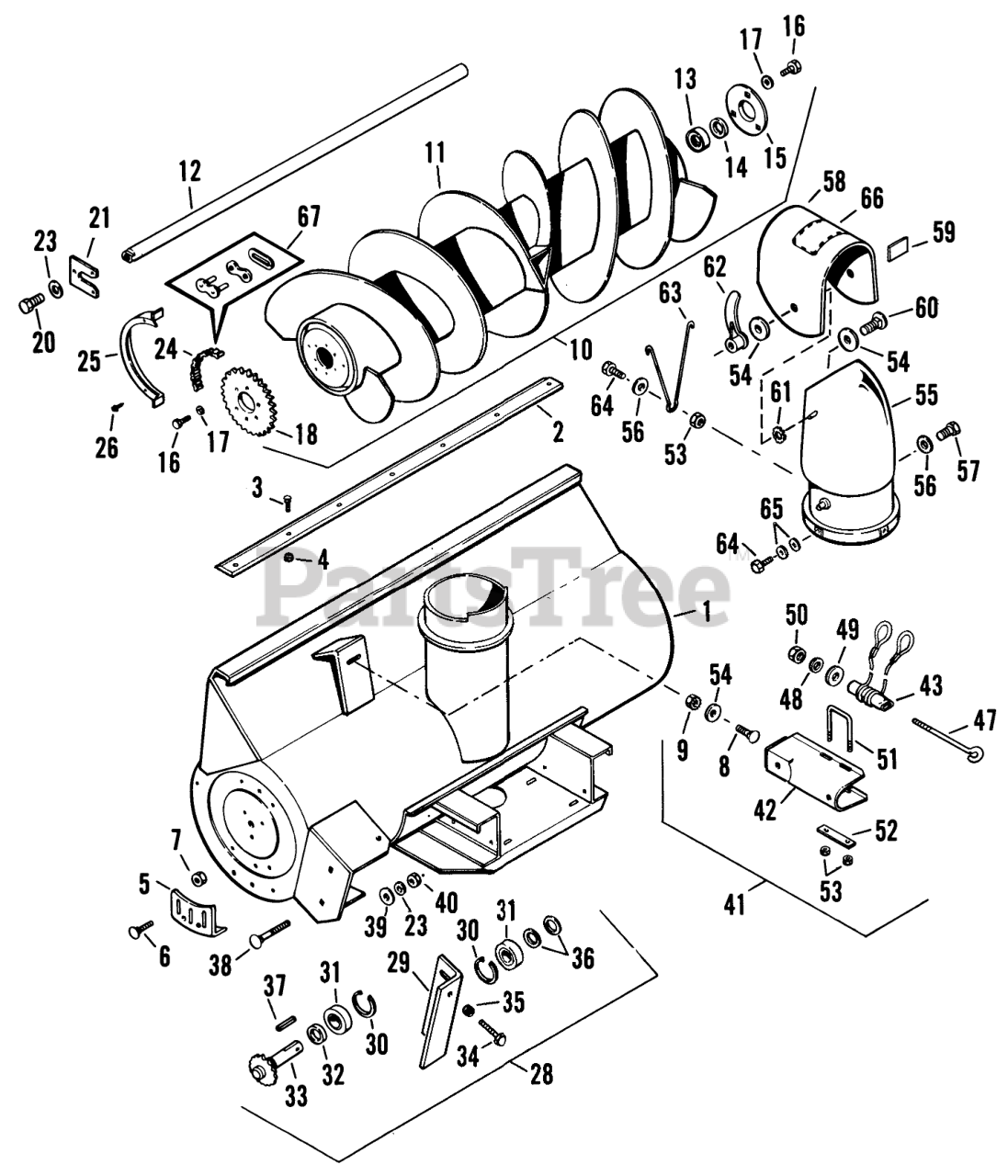

48" SNOW THROWER-MODEL NO. 6-7451 (SERIAL #983056 & UP) Parts Diagram

  • Title

1

Toro 200101

Assy.-Header Hsg. 48"

$

$

Not available

2

Toro 200102

Blade-Scraper
(Superseded to 200438)

$

$

Not available

3

Toro 200103

BOLT-BLADE TO HEADER

$

$

Not available

4

Toro 915968-4

Nut 1/4-20 Keps

$

$

Currently unavailable

5

Toro 200104

Shoe-Skid

$

$

Not available

6

Toro 900037-9

Bolt-5/16-18 x 3/4 Carr.

$

$

Currently unavailable

7

Toro 915972-4

Nut 5/16-18 Keps

$

$

Currently unavailable

8

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

9

Toro 915974-4

Nut, Jam, 3/8-24 Thd

$

$

Currently unavailable

10

Toro 200105

Auger Assembly

$

$

Not available

11

Toro 200106

Auger

$

$

Not available

12

Toro 200107

Hex Nut

$

$

Not available

13

Toro 200108

Bearing-Auger

$

$

Not available

14

Toro 200109

Washer-Auger

$

$

Not available

15

Toro 200110

Spring

$

$

Not available

16

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

17

Toro 920082-4

Lockwasher

$

$

Currently unavailable

18

Toro 200111

Control Rod-Traction

$

$

Not available

20

Toro 908058-4

Bolt Hex 1/2-13 x 1 1/4

$

$

Currently unavailable

21

Toro 200112

PLATE AUGER MOUNTING

$

$

Not available

23

Toro 920085-4

Lockwasher

$

$

Currently unavailable

24

Toro 200113

CHAIN-AUGER DRIVE

$

$

Not available

25

Toro 200114

Chain Guard

$

$

Not available

26

Toro 926585-4

Screw-1/4-14 x 1/2 Hex. Self Tap

$

$

Currently unavailable

28

Toro 200116

Jackshaft Housing w/Bearings

$

$

Not available

29

Toro 200117

Assy.-Jackshaft Hsg.

$

$

Not available

30

Toro 200118

Ring-Snap

$

$

Not available

31

Toro 200119

BEARING-GEAR BOX

$

$

Not available

32

Toro 200115

Spacer

$

$

Not available

33

Toro 200121

Jackshaft and Sprocket

$

$

Not available

34

Toro 926502

S.T. Bolt 5/16-18 x 2

$

$

Currently unavailable

35

Toro 915235-4

Nut 5/16-18 Jam

$

$

Currently unavailable

36

Toro 200120

WSHR SPROCKET TO BRG

$

$

Not available

37

Toro 200122

Key

$

$

Not available

38

Toro 900122-4

Bolt-1/2-13 x 3-1/2 Carr.

$

$

Currently unavailable

39

Toro 920040-4

Washer 7/16

$

$

Currently unavailable

40

Toro 915115-4

Nut, 1/2-13

$

$

Currently unavailable

41

Toro 200123

Stack Drive Bracket

$

$

Not available

42

Toro 200124

Assy.-Stack Drive Brkt.

$

$

Not available

43

Toro 200125

ASSEMBLY CABLE

$

$

Not available

47

Toro 200129

EYE BOLT DRIVE TUBE

$

$

Not available

48

Toro 200130

Spring Washer

$

$

Not available

49

Toro 920039-4

Washer

$

$

Currently unavailable

50

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

51

Toro 200131

U-BOLT

$

$

Not available

52

Toro 200132

Friction Strap

$

$

Not available

53

Toro 200133

NUT

$

$

Not available

54

Toro 200134

WASHER

$

$

Not available

55

Toro 200135

Assy.-Elbow & Pivot

$

$

Not available

56

Toro 200136

Washer

$

$

Not available

57

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

58

Toro 200137

Deflector Elbow

$

$

Not available

59

Toro 200138

MOLDING DEFLECTOR

$

$

Not available

60

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

61

Toro 920124-4

Washer

$

$

Currently unavailable

62

Toro 200139

STRAP-LOCKING

$

$

Not available

63

Toro 200140

Spring Hook

$

$

Not available

64

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

65

Toro 820081-4

Washer-1/4 Med. Lock

$

$

Currently unavailable
