6-6214 - Toro 42" Snow Thrower Attachment (1975) PARTS LIST-SNOW THROWER-FACTORY ORDER NUMBER 6-6214 Parts Diagram

42" Snow Thrower Attachment

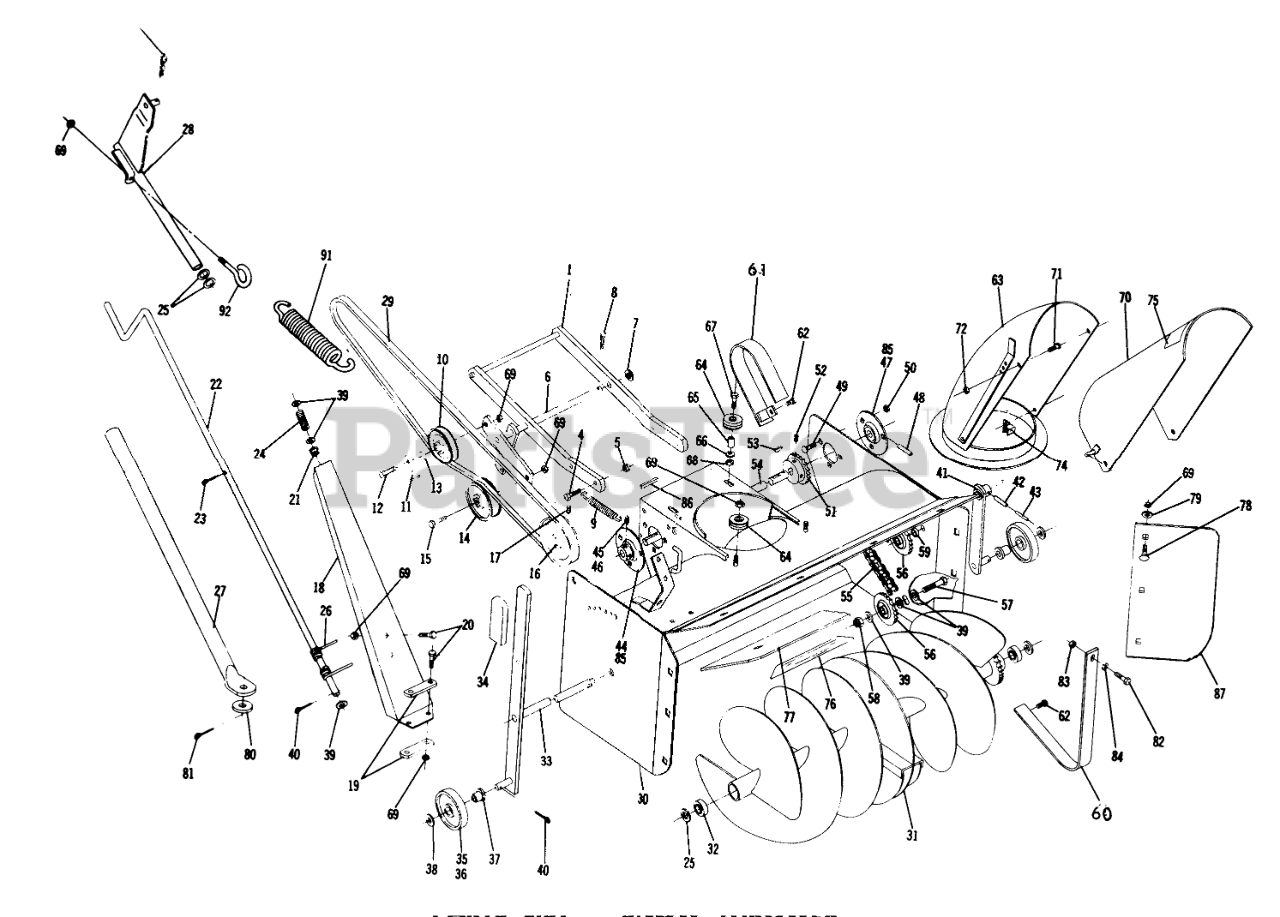

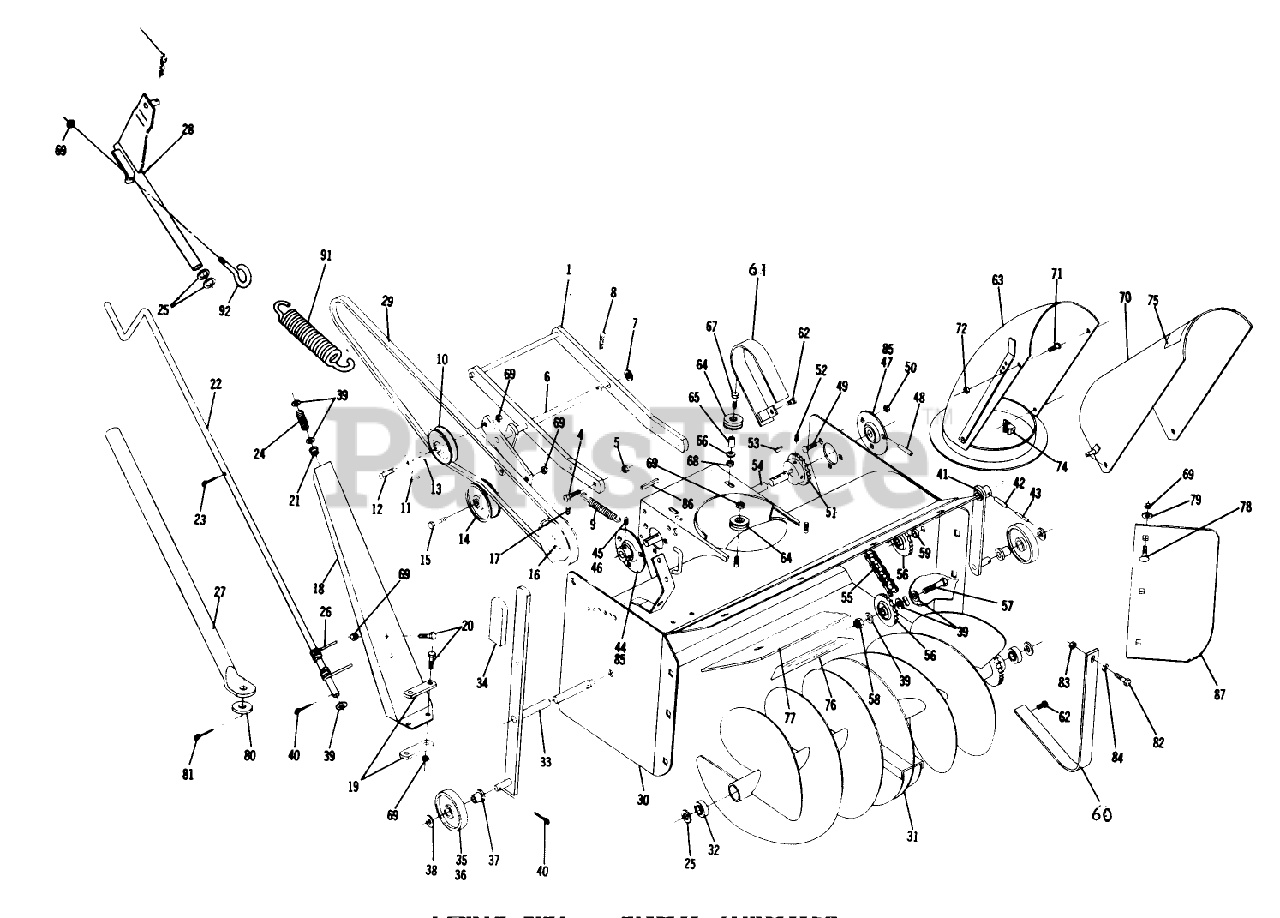

PARTS LIST-SNOW THROWER-FACTORY ORDER NUMBER 6-6214 Parts Diagram

  • Title
1

Toro 104604

Frame-Mounting
(Superseded to 104604-01)

$

$

Not available

4

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6

Toro 9596

ASSY IDLER ARM R

$

$

Not available

7

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

8

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

9

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

10

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 2 left!

0

11

Toro 7450

Spacer
(Superseded to 7450-01)

$14.99

$

Usually ships in 3-6 days

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 104662

SPACER

$8.99

$

In Stock, only 2 left!

0

14

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 2 left!

0

15

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

16

Toro 8158

Pulley
(Superseded to 88-2190)

$157.99

$

Usually ships in 3-6 days

0

17

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 6426

Crank Support
(Superseded to 107524)

$

$

Not available

Toro 104465

Decal Plate

$

$

Not available

Toro 104461

Decal-Snow Guide

$

$

Not available

19

Toro 7494

Bar-Reinforcing

$

$

Not available

20

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

21

Toro 5982

NYLINER BUSHING

$

$

Not available

22

Toro 104457

Crank Assembly

$

$

Not available

23

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

24

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

25

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

26

Toro 104460

CABLE

$22.99

$

In Stock, Qty 6

0

Toro 8874

Clip Wire

$

$

Currently unavailable

Toro 960127

Screw, #10-24 Whizlock

$

$

Not available

27

Toro 104663

Lift Tube
(Superseded to 107403)

$

$

Not available

28

Toro 101461

LIFT ROD ASM
(Superseded to 101461-03)

$

$

Not available

29

Toro 9750

V-BELT

$56.99

$

In Stock, only 2 left!

0

30

Toro 104470

Wrapper Assembly

$

$

Not available

31

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

32

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

33

Toro 4477

ASSY AUGER SHAFT R

$

$

Not available

34

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

35

Toro 2173

WHEEL BUSHING ASSY R

$

$

Not available

36

Toro 1987

Wheel
(Superseded to 2173)

$

$

Not available

37

Toro 1974

Bushing
(Superseded to 100284)

$

$

Not available

38

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

39

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

40

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

41

Toro 5157

Wheel Support

$

$

Not available

42

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

43

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

44

Toro 101702

Ball Bearing
(Superseded to 107743)

$178.99

$

Usually ships in 3-6 days

0

45

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

46

Toro 909963

SET SCREW

$

$

Not available

47

Toro 101782

Ball Bearing
(Superseded to 107744)

$

$

Not available

48

Toro 933216

PIN-ROLL, SPIROL

$3.49

$

In Stock, only 1 left!

0

49

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

50

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

51

Toro 6415

SPROCKET

$134.99

$

Usually ships in 3-6 days

0

52

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

53

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

54

Toro 103526

SHAFT

$

$

Not available

55

Toro 6416

CHAIN

$219.99

$

In Stock, only 1 left!

0

56

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$63.99

$

In Stock, Qty 8

0

57

Toro 908060

H H C S
(Superseded to 325-7)

$1.99

$

In Stock, Qty 20+

0

58

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

59

Toro 6417

SPACER

$

$

Not available

60

Toro 6418

Guard-Inner

$

$

Not available

61

Toro 2162

Guard-Outer

$

$

Not available

62

Toro 1391

SCREW

$

$

Not available

63

Toro 5220

S/A SHROUD R

$

$

Not available

64

Toro 1973

Roller

$

$

Not available

65

Toro 2163

SPACER

$

$

Not available

66

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

67

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

68

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

69

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

70

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

71

Toro 910836

MACH. SCREW

$

$

Not available

72

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

74

Toro 101447

CLAMP

$33.99

$

Usually ships in 3-6 days

0

75

Toro 103601

Decal-Caution

$

$

Not available

76

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

77

Toro 7495

Plate
(Superseded to 93-1616-01)

$

$

Not available

78

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

79

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

80

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

81

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

82

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

83

Toro 915968

Nut 1/4-20
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

84

Toro 920037

WASHER

$

$

Not available

85

Toro 100906

FLANGE

$25.99

$

Usually ships in 3-6 days

0

86

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, Qty 12

0

87

Toro 103552

Plate
(Superseded to 93-1617-01)

$90.99

$

Usually ships in 3-6 days

0

88

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

89

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

90

Toro 104049

Decal-Safety

$

$

Currently unavailable

91

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

92

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0
