6-6212 - Toro 37" Snow Thrower Attachment (1971) 6-6212 SNOW THROWER-BASIC UNIT Parts Diagram

37" Snow Thrower Attachment

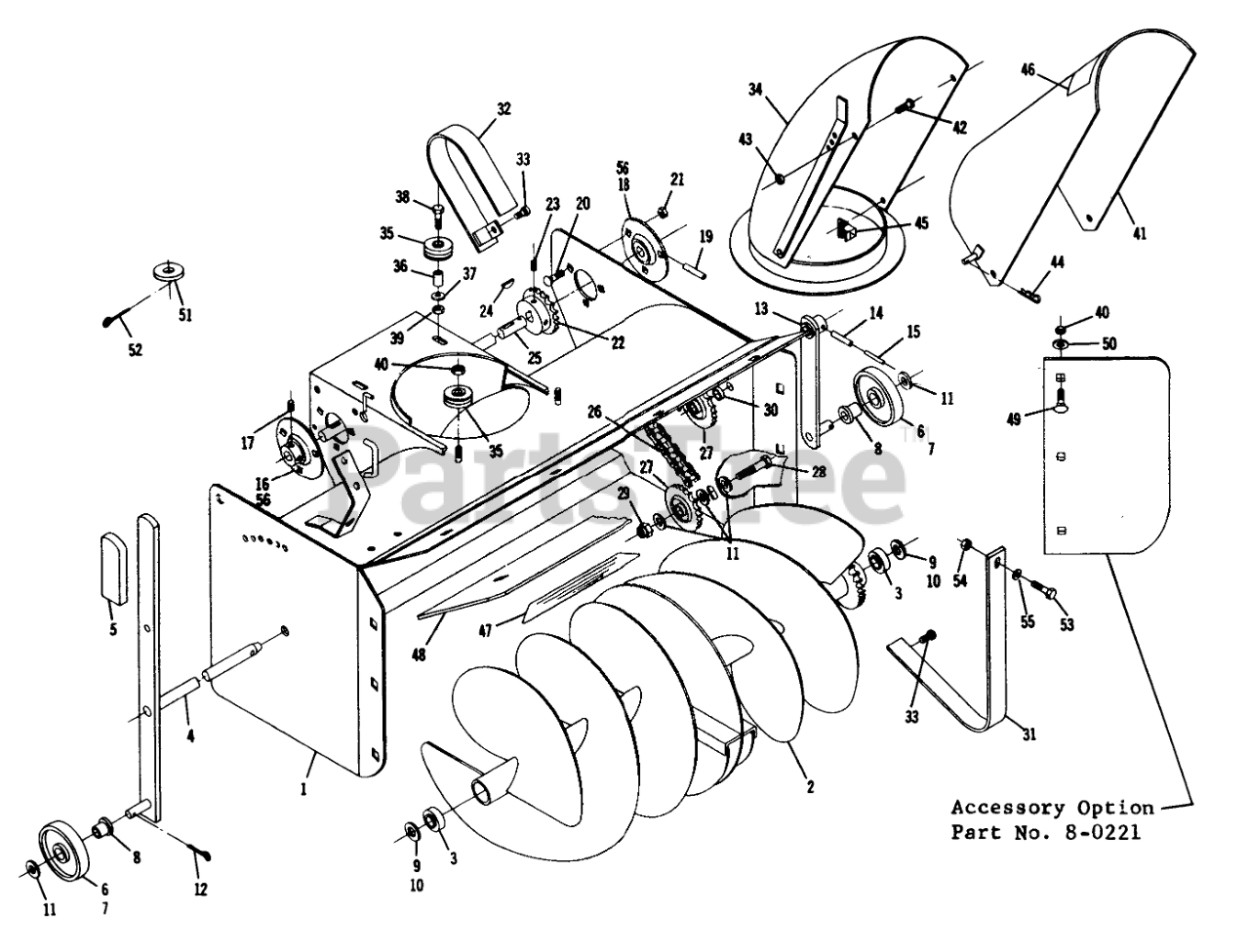

6-6212 SNOW THROWER-BASIC UNIT Parts Diagram

  • Title

1

Toro 6429

Wrapper Ass-y

$

$

Not available

2

Toro 4467

Auger
(Superseded to 105-1478)

$

$

Not available

3

Toro 1515

Ball
(Superseded to 101480)

$56.99

$

In Stock, only 3 left!

0

4

Toro 4477

ASSY AUGER SHAFT R

$

$

Not available

5

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

6

Toro 2173

WHEEL BUSHING ASSY R

$

$

Not available

7

Toro 1987

Wheel
(Superseded to 2173)

$

$

Not available

8

Toro 1974

Bushing
(Superseded to 100284)

$

$

Not available

9

Toro 920225-4

Washer

$

$

Currently unavailable

10

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

11

Toro 920011-4

Washer

$

$

Currently unavailable

12

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

13

Toro 5157

Wheel Support

$

$

Not available

14

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

15

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

16

Toro 101781

Ball Bearing-Self Aligning
(Superseded to 107743)

$178.99

$

Usually ships in 3-6 days

0

17

Toro 909862-5

Set Screw

$

$

Currently unavailable

18

Toro 101782

Ball Bearing
(Superseded to 107744)

$

$

Not available

19

Toro 933216

PIN-ROLL, SPIROL

$3.49

$

In Stock, only 1 left!

0

20

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

21

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

22

Toro 6415

SPROCKET

$134.99

$

Usually ships in 3-6 days

0

23

Toro 909848-5

Set Screw Nylok

$

$

Currently unavailable

24

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

25

Toro 4757

Shaft-Drive

$

$

Not available

26

Toro 6416

CHAIN

$219.99

$

In Stock, only 1 left!

0

27

Toro 2174

Idler Sprocket
(Superseded to 93-1614)

$63.99

$

In Stock, Qty 8

0

28

Toro 908060-4

Bolt-1/2-13-1 3/4

$

$

Currently unavailable

29

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

30

Toro 6417

SPACER

$

$

Not available

31

Toro 6418

Guard-Inner

$

$

Not available

32

Toro 2162

Guard-Outer

$

$

Not available

33

Toro 1391

SCREW

$

$

Not available

34

Toro 5220

S/A SHROUD R

$

$

Not available

35

Toro 1973

Roller

$

$

Not available

36

Toro 2163

SPACER

$

$

Not available

37

Toro 920007-4

Washer

$

$

Currently unavailable

38

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

39

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

40

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

41

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

42

Toro 910836-4

Bolt Pan Head 1/4-20 x 1/2

$

$

Currently unavailable

43

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

44

Toro 933503-4

Hairpin

$

$

Currently unavailable

45

Toro 101447

CLAMP

$33.99

$

Usually ships in 3-6 days

0

46

Toro 7637

Decal-Caution

$

$

Currently unavailable

47

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available

48

Toro 7495

Plate
(Superseded to 93-1616-01)

$

$

Not available

49

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

50

Toro 920009-4

Washer

$

$

Currently unavailable

51

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

52

Toro 932034-4

Cotter Pin 3/16 x 1

$

$

Currently unavailable

53

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

54

Toro 915968-4

Nut 1/4-20 Keps

$

$

Currently unavailable

55

Toro 920037-4

Washer

$

$

Currently unavailable

56

Toro 100906

FLANGE

$25.99

$

Usually ships in 3-6 days

0
