6-4114 - Toro 42" Snow/Dozer Blade Completing Package (1974) PARTS LIST-DOZER BLADE "A" FRAME-FACTORY ORDER NUMBER 6-4114 Parts Diagram

42" Snow/Dozer Blade Completing Package

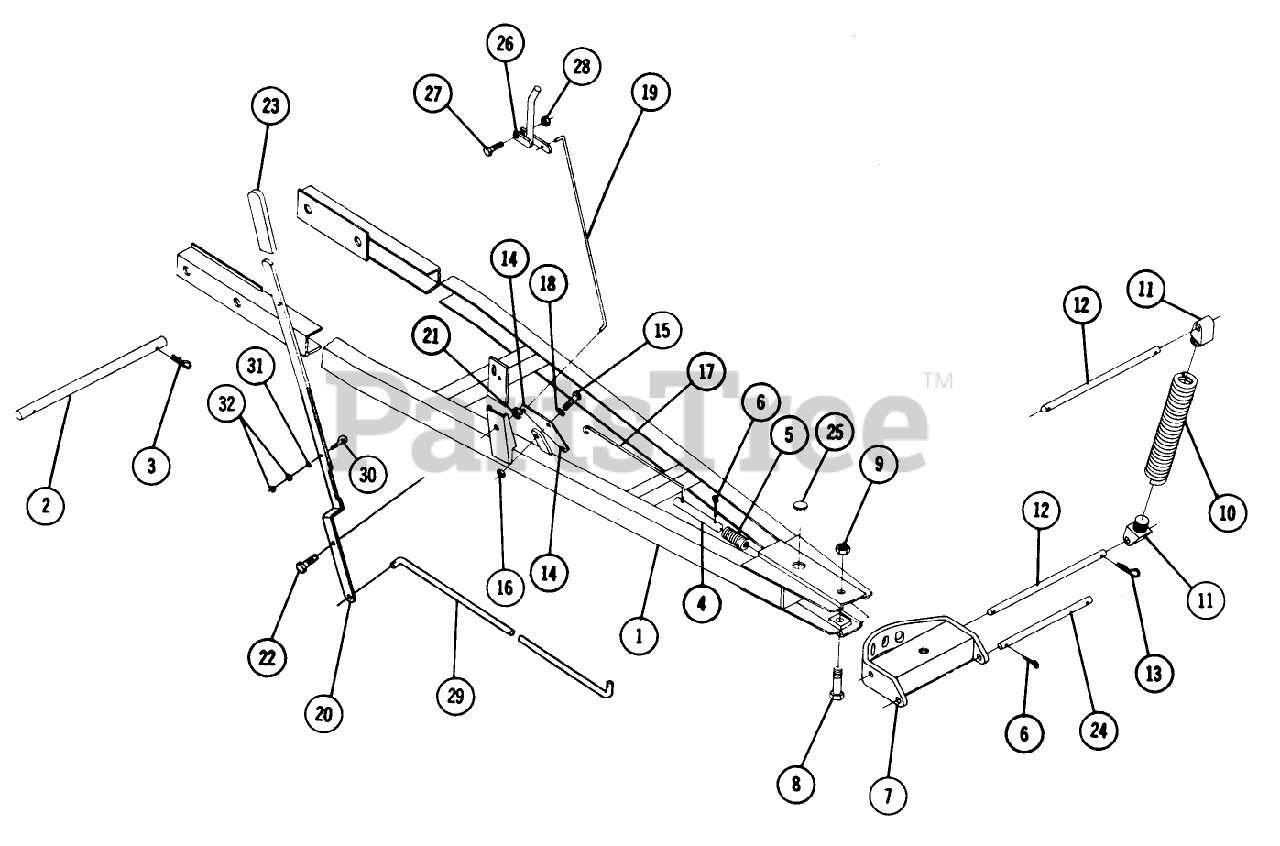

PARTS LIST-DOZER BLADE "A" FRAME-FACTORY ORDER NUMBER 6-4114 Parts Diagram

  • Title

1

Toro 7716

Ass-y. Frame
(Superseded to 108567)

$

$

Not available

2

Toro 7701

Mounting Shaft

$

$

Not available

3

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

4

Toro 5127

Index Pin

$

$

Not available

5

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

6

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 103475

Sector and Channel
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

8

Toro 908256

Bolt
(Superseded to 3216-7)

$21.99

$

Usually ships in 3-6 days

0

9

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

10

Toro 5117

Spring
(Superseded to 105-1386-03)

$129.99

$

Usually ships in 3-6 days

0

11

Toro 5125

Lug

$

$

Not available

12

Toro 5120

ROD-PIVOT, BLADE

$60.99

$

Usually ships in 3-6 days

0

13

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

14

Toro 3770

Index Plate
(Superseded to 92-7037)

$

$

Not available

15

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

16

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

17

Toro 3771

Head-Cylinder

$24.99

$

In Stock, only 1 left!

0

18

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

19

Toro 104341

UPPER INDEX ROD

$

$

Not available

20

Toro 104340

Index Lever
(Superseded to 94-6686-01)

$90.99

$

Usually ships in 3-6 days

0

21

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

22

Toro 908057

Bolt
(Superseded to 325-4)

$1.49

$

In Stock, only 2 left!

0

23

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

24

Toro 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

25

Toro 4944

PLUG

$8.99

$

Usually ships in 3-6 days

0

26

Toro 5107

INDEX LEVER

$

$

Not available

27

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

28

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

29

Toro 104338

ROD

$121.99

$

Usually ships in 3-6 days

0

30

Toro 104996

Eye Bolt
(Superseded to 108566)

$7.49

$

Usually ships in 3-6 days

0

31

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

32

Toro 915565

Nut, #10-24 Hex

$

$

Not available

30

Toro 104218

Eye Bolt
(Superseded to 108566)

$7.49

$

Usually ships in 3-6 days

0
