6-3211 - Toro 32" Snow Thrower Attachment (1968) PARTS LIST FOR SNOW THROWER-COMPLETING PACKAGE MODEL 6-9121 Parts Diagram

32" Snow Thrower Attachment

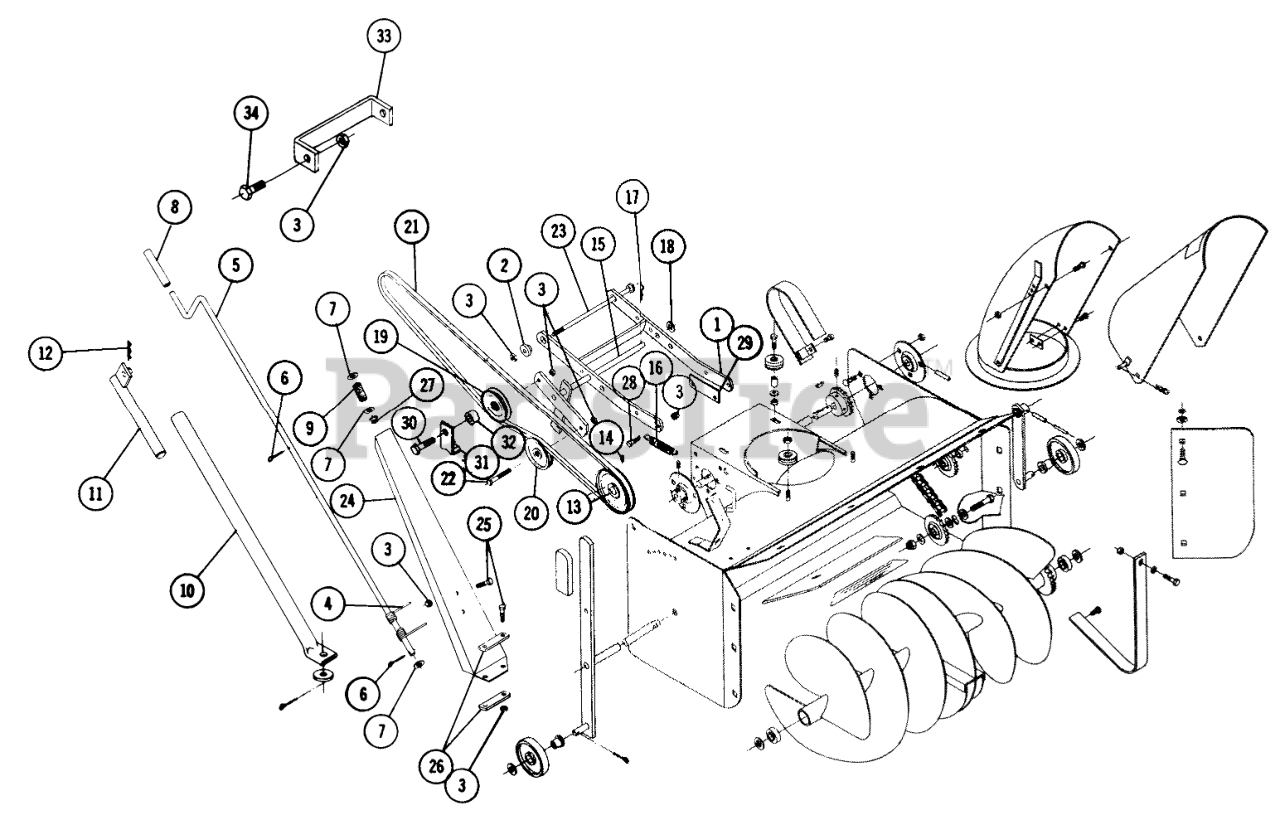

PARTS LIST FOR SNOW THROWER-COMPLETING PACKAGE MODEL 6-9121 Parts Diagram

  • Title

1

Toro 9706

Mounting Frame

$

$

Not available

2

Toro 1982

Spacer

$

$

Not available

3

Toro 915113-6

Nut

$

$

Currently unavailable

4

Toro 4795

Cable
(Superseded to 104460)

$22.99

$

In Stock, Qty 6

0

5

Toro 8157

Crank

$

$

Not available

6

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

7

Toro 920011-4

Washer

$

$

Currently unavailable

8

Toro 4569

Tube

$

$

Currently unavailable

9

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

10

Toro 8730

Tube and Bar
(Superseded to 107403)

$

$

Not available

11

Toro 8727

Lift Rod

$

$

Currently unavailable

12

Toro 933505-4

Hairpin

$

$

Currently unavailable

13

Toro 8158

Pulley
(Superseded to 88-2190)

$139.99

$

Usually ships in 3-6 days

0

14

Toro 909862-5

Set Screw

$

$

Currently unavailable

15

Toro 8159

Clip

$

$

Not available

16

Toro 6651

SPRING R

$21.99

$

In Stock, only 1 left!

0

17

Toro 933504-4

Hairpin

$

$

Currently unavailable

18

Toro 920011-4

Washer

$

$

Currently unavailable

19

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$22.99

$

In Stock, only 1 left!

0

20

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

21

Toro 8160

V-BELT

$115.99

$

Usually ships in 3-6 days

0

22

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

23

Toro 4776

Ass-y. Rod & Spacer

$

$

Not available

24

Toro 6426

Crank Support
(Superseded to 107524)

$

$

Not available

25

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

26

Toro 7494

Bar-Reinforcing

$

$

Not available

27

Toro 5982

NYLINER BUSHING

$

$

Not available

28

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

29

Toro 4774

Shim

$

$

Currently unavailable

30

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

31

Toro 7672

Spacer

$

$

Not available

32

Toro 7450

Spacer
(Superseded to 7450-01)

$13.99

$

Usually ships in 3-6 days

0

33

Toro 9705

Bracket-Steering Stop

$

$

Currently unavailable

34

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable
