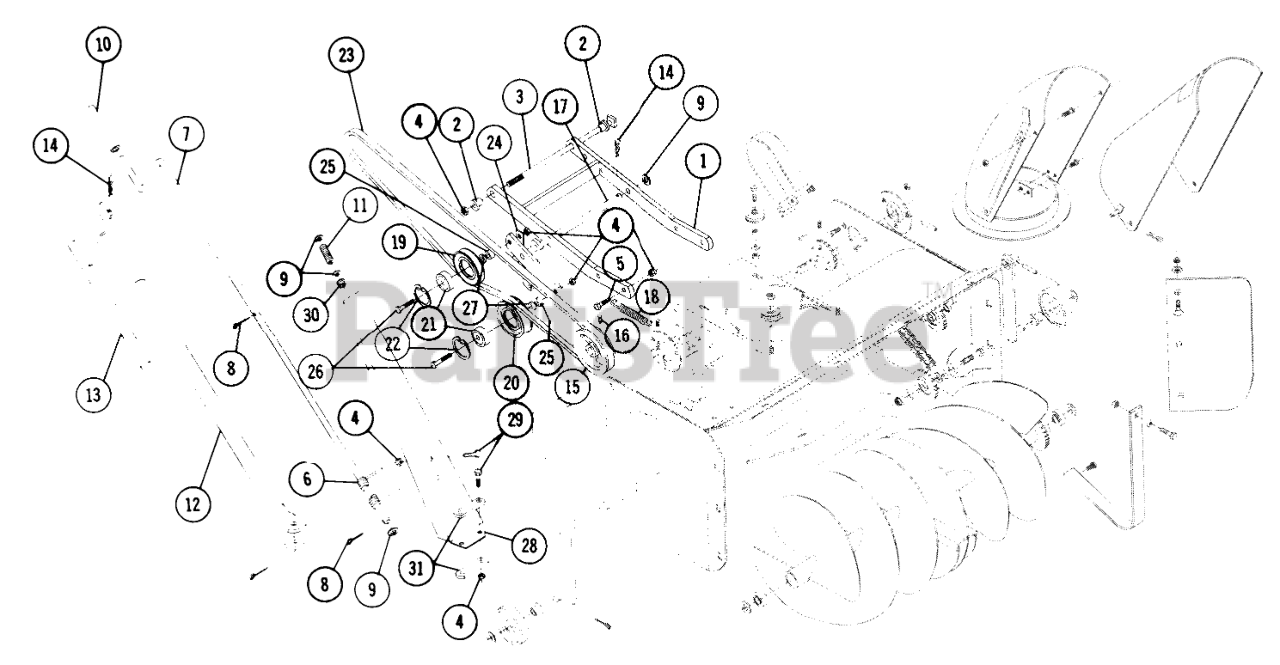

6-3111 - Toro 39" Dozer Blade (1968) PARTS LIST FOR SNOW THROWER-COMPLETING PACKAGE MODEL 6-9111 Parts Diagram

39" Dozer Blade

PARTS LIST FOR SNOW THROWER-COMPLETING PACKAGE MODEL 6-9111 Parts Diagram

  • Title

1

Toro 6424

Mounting Frame

$

$

Not available

2

Toro 1982

Spacer

$

$

Not available

3

Toro 900854-4

Bolt-Hex. 3/8-16 x 8 1/2

$

$

Currently unavailable

4

Toro 915113-6

Nut

$

$

Currently unavailable

5

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

6

Toro 4795

Cable
(Superseded to 104460)

$22.99

$

In Stock, Qty 6

0

7

Toro 6413

Crank

$

$

Not available

8

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

9

Toro 920011-4

Washer

$

$

Currently unavailable

10

Toro 4569

Tube

$

$

Currently unavailable

11

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

12

Toro 6427

Ass-y. Tube & Bar
(Superseded to 107403)

$

$

Not available

13

Toro 1986

Lid Rod
(Superseded to 101461-03)

$

$

Not available

14

Toro 933504-4

Hairpin

$

$

Currently unavailable

15

Toro 2707

Pulley

$

$

Not available

16

Toro 909862-5

Set Screw

$

$

Currently unavailable

17

Toro 6420

Idler Arm Ass-y

$

$

Currently unavailable

18

Toro 6651

SPRING R

$21.99

$

In Stock, only 1 left!

0

19

Toro 4974

PULLEY IDLER

$

$

Not available

20

Toro 6740

PULLEY IDLER

$

$

Not available

21

Toro 4567

BEARING

$99.99

$

Usually ships in 3-6 days

0

22

Toro 936024

INTERNAL SNAPRING

$3.49

$

Usually ships in 3-6 days

0

23

Toro 8231

BELT

$

$

Not available

24

Toro 6423

Bracket-Belt Guide

$

$

Not available

25

Toro 6309

Spacer

$

$

Not available

26

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

27

Toro 7672

Spacer

$

$

Not available

28

Toro 6426

Crank Support
(Superseded to 107524)

$

$

Not available

29

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

30

Toro 5982

NYLINER BUSHING

$

$

Not available

31

Toro 7494

Bar-Reinforcing

$

$

Not available
