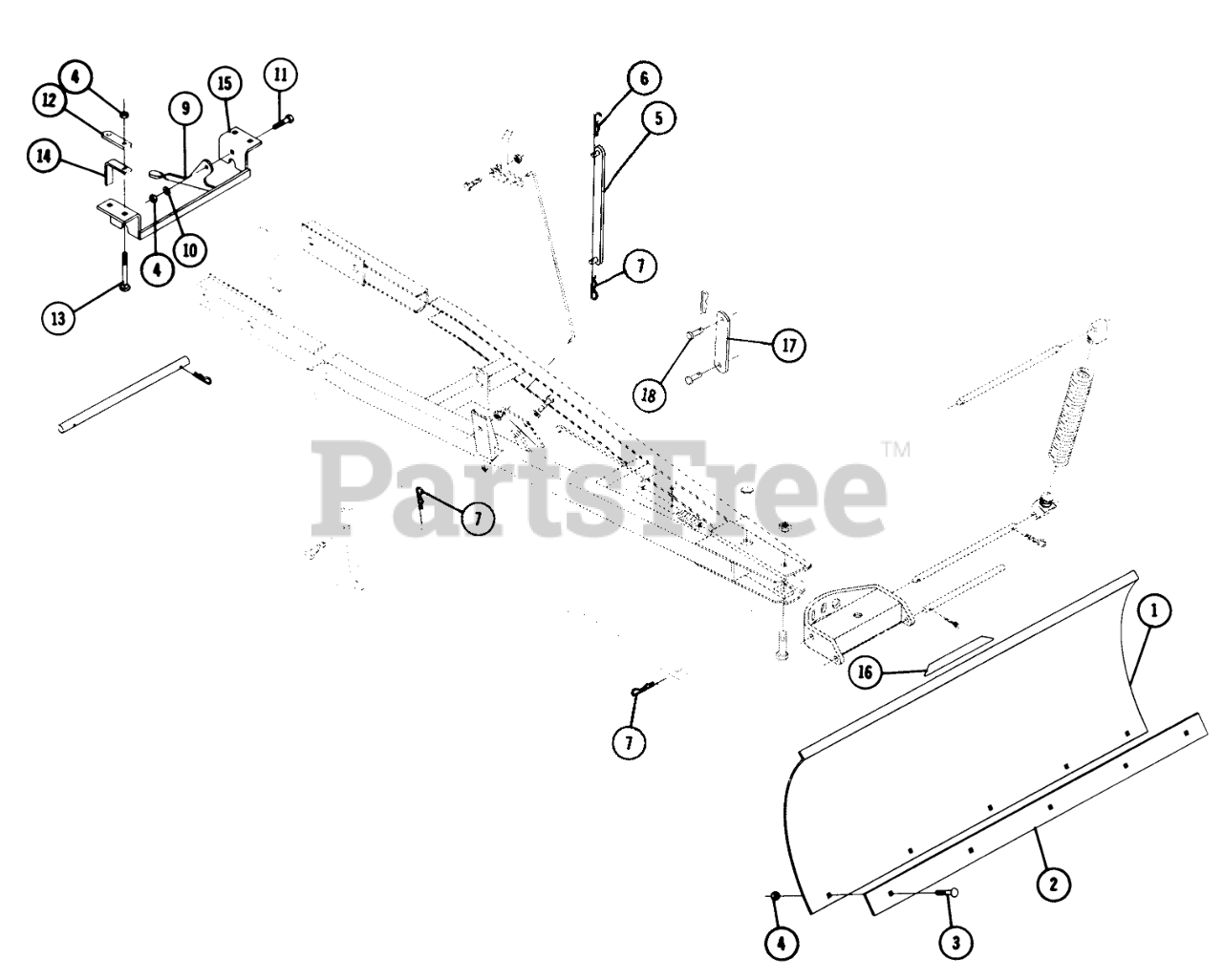

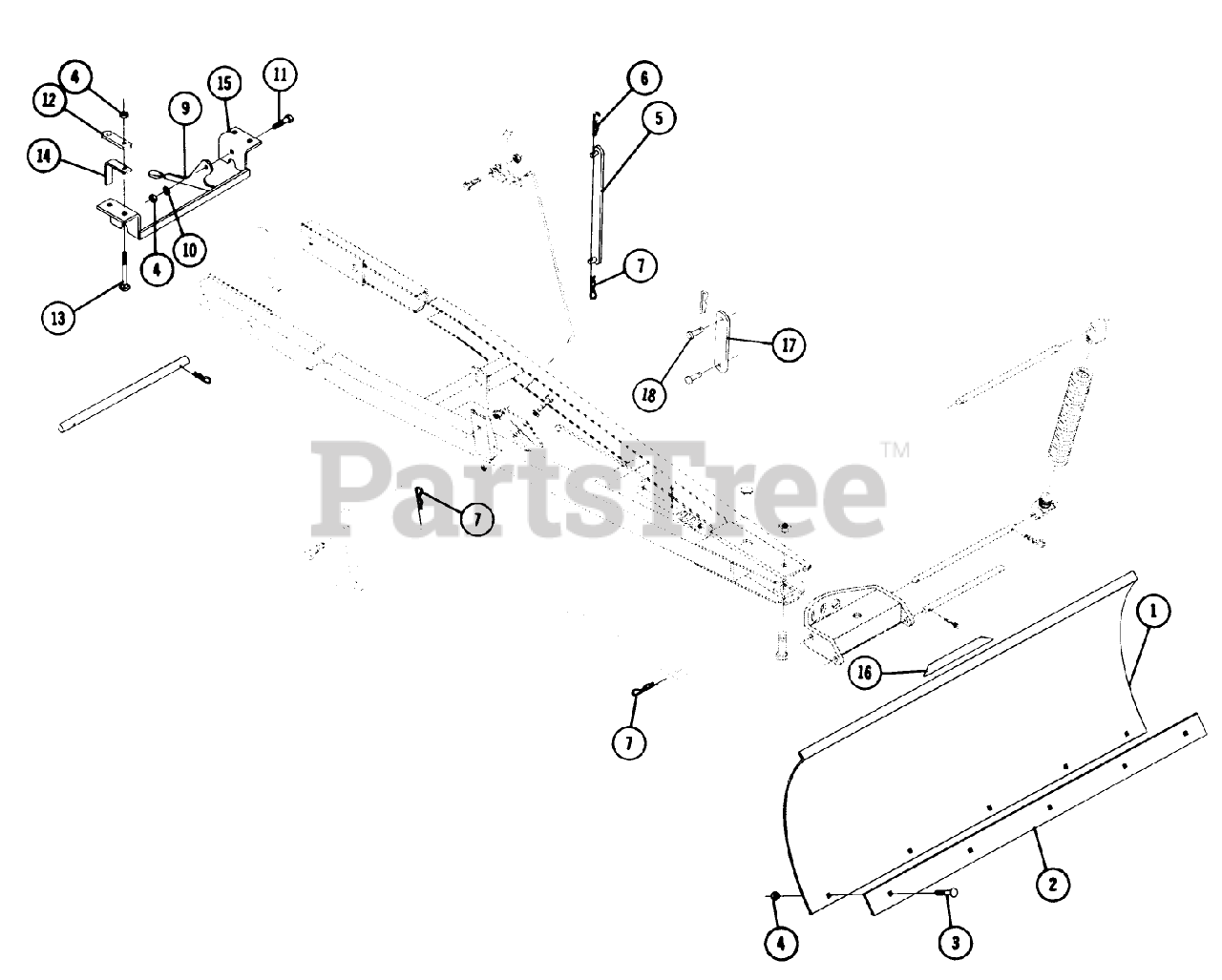

6-2131 - Toro 42" Dozer Blade (1974) PARTS LIST-42" BLADE WITH MOUNTING ASSEMBLY FACTORY ORDER NUMBER 6-9623 Parts Diagram

42" Dozer Blade

PARTS LIST-42" BLADE WITH MOUNTING ASSEMBLY FACTORY ORDER NUMBER 6-9623 Parts Diagram

  • Title

1

Toro 5109

Blade

$

$

Not available

2

Toro 2346

Plate
(Superseded to 92-6034-03)

$94.99

$

Usually ships in 3-6 days

0

3

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

5

Toro 7706

LIFT BAR ASSY R
(Superseded to 7706-01)

$

$

Not available

6

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

7

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

9

Toro 7704

Latch Hitch
(Superseded to 104657)

$42.99

$

Usually ships in 3-6 days

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

13

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

$5.49

$

In Stock, only 2 left!

0

14

Toro 7713

SPACER-BRACKET

$

$

Not available

15

Toro 104659

Bracket
(Superseded to 104659-01)

$199.99

$

Usually ships in 3-6 days

0

16

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

17

Toro 102665

Link-Short
(Superseded to 105052)

$32.99

$

In Stock, only 3 left!

0

18

Toro 932962

Pin
(Superseded to 9329624)

$

$

Not available

Toro 104956

Caution Decal

$

$

Not available
