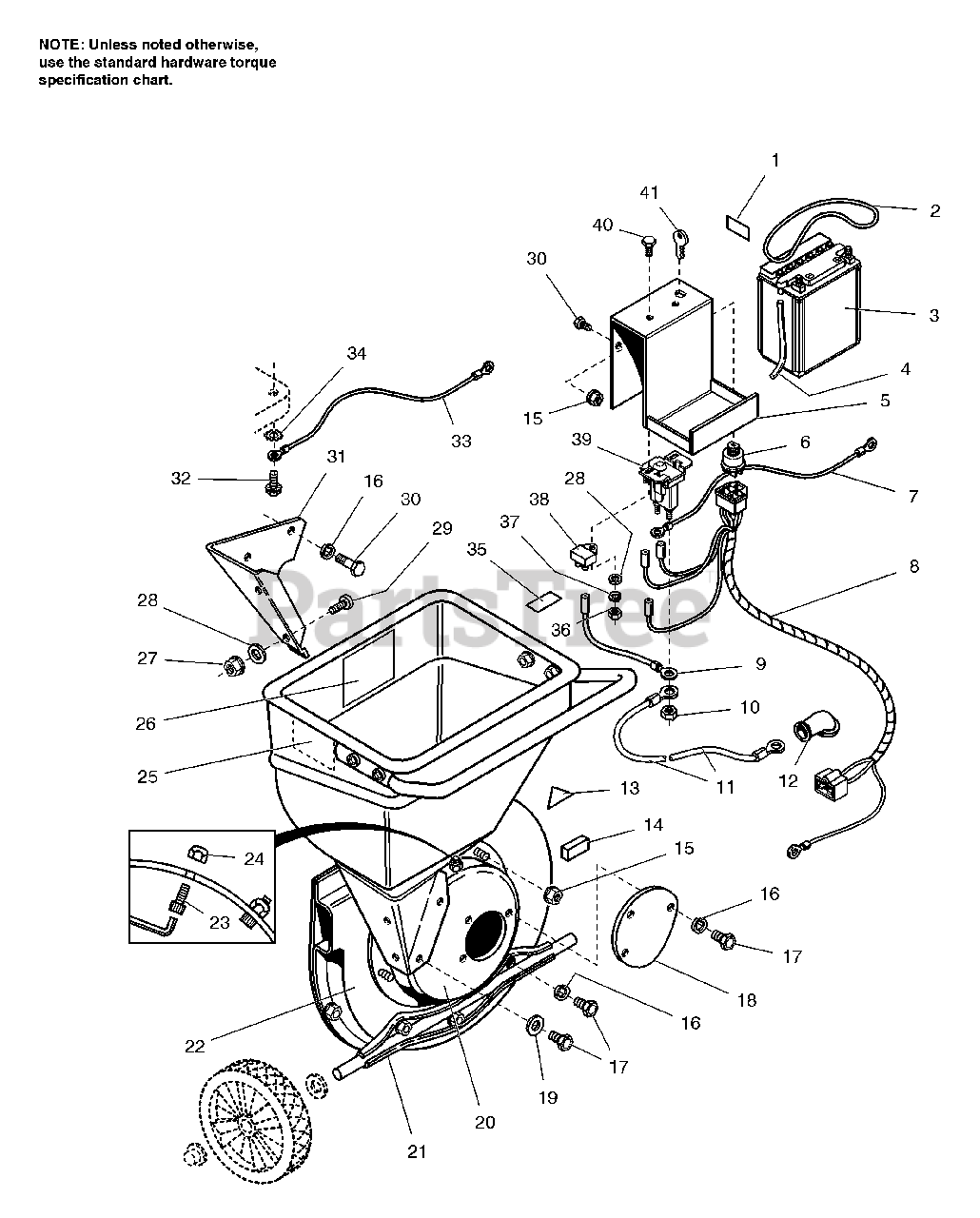

6/14 E (1692902) - Simplicity Chipper Shredder, 6hp Housing & Electrical Group Parts Diagram

Chipper Shredder, 6hp

Housing & Electrical Group Parts Diagram

  • Title

1

Simplicity 1716893

DECAL, Ignition Switch

$

$

Not available

2

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

3

Simplicity 1686695SM

BATTERY

$

$

Not available

4

TUBE, Battery

$

$

Not available

5

Simplicity 1716892SM

BOX, Battery

$

$

Not available

6

Simplicity 1686734SM

KEY SWITCH

$32.99

$

In Stock, Qty 20+

0

7

Simplicity 1707056SM

CABLE, #6 x 15, 5/16 + 1/4

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716894SM

WIRE ASSY.

$

$

Not available

9

Simplicity 1665237SM

WIRE ASSY, Circuit Breaker

$11.99

$

In Stock, Qty 7

0

10

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1668819SM

CABLE, #6 x 25, 5/16 + 1/4

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

13

DECAL, OPEI

$

$

Not available

14

Simplicity 1713337SM

PAD, Foam

$16.99

$

Usually ships in 2-12 days

0

15

Simplicity 1931277SM

NUT, Hex whiz lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1920787SM

CAPSCREW, Hex. Hd., 5/16-18 x 1/2, Grade 5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1729174SM

COVER, Rotor Housing

$26.99

$

Usually ships in 2-12 days

0

19

Simplicity 1924874SM

WASHER, Plain, 11/32 x 7/8 x 1/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1729175SM

HOUSING ASSY., Rotor

$153.99

$

Usually ships in 2-12 days

0

21

Simplicity 1729164SM

AXLE ASSY.

$165.99

$

Usually ships in 2-12 days

0

22

Simplicity 1729160SM

FAN HOUSING ASSY.

$313.99

$

Usually ships in 2-12 days

0

23

Simplicity 1729214SM

CAPSCREW, Socket Hd., 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1919438SM

NUT, Fiber lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

26

Simplicity 1729208SM

DECAL, Caution/Operate

$

$

Not available

27

Simplicity 1930642SM

NUT, Flange, 2-way Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

28

Simplicity 1921319SM

WASHER, Plain, 17/64 x 5/8 x 3/64
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1960507SM

SCREW, Button Hd. Hex Socket, 1/4-20 x 3/4

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

31

Simplicity 1729176SM

LINER, Hopper

$73.99

$

Usually ships in 2-12 days

0

32

Simplicity 1928635SM

SCREW, taptite, 3/8-16 X 1-1/4

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1703589SM

CABLE, #6 x 31, 3/8 + 1/4

$12.99

$

Usually ships in 2-12 days

0

34

Simplicity 2820427SM

LOCKWASHER, Ext., Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

DECAL, Patent

$

$

Not available

36

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

38

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

39

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

40

Simplicity 1921959SM

CAPSCREW, Hex Hd. 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

41

Simplicity 1717163SM

KEY, Ignition

$8.99

$

In Stock, Qty 20+

0
