6-1131 - Toro 54" Snow/Dozer Blade (1973) PARTS LIST FOR DOZER BLADES Parts Diagram

54" Snow/Dozer Blade

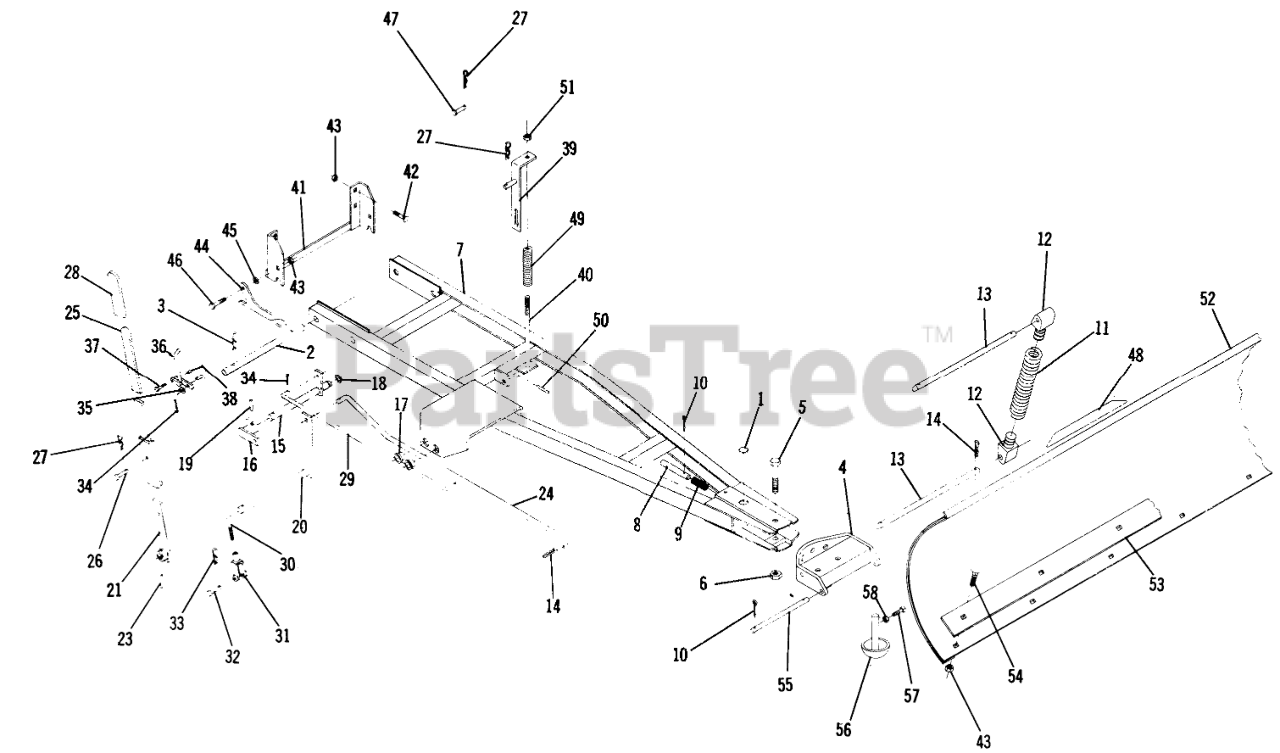

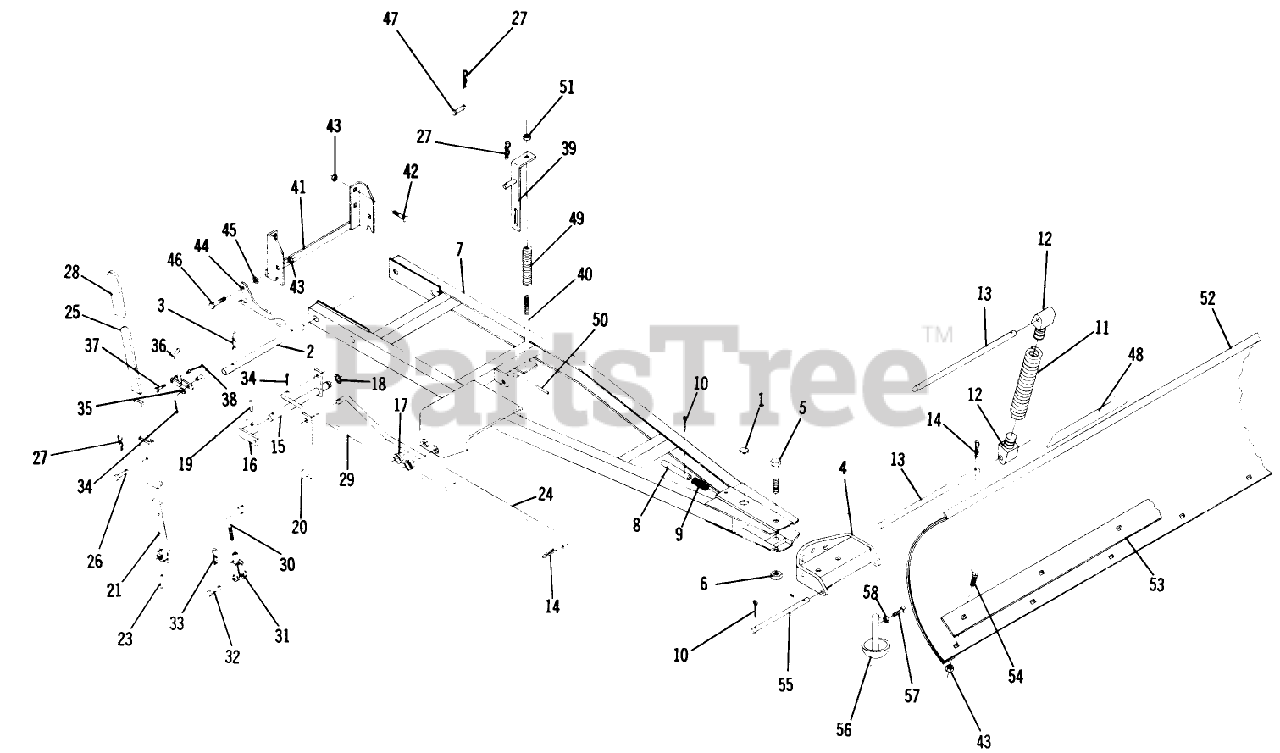

PARTS LIST FOR DOZER BLADES Parts Diagram

  • Title

1

Toro 4944

PLUG

$8.49

$

Usually ships in 3-6 days

0

2

Toro 7701

Mounting Shaft

$

$

Not available

3

Toro 933506-4

Hairpen

$

$

Currently unavailable

4

Toro 103475

Sector and Channel
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

5

Toro 908256-4

Bolt Hex 3/4-16 x 3 3/4

$

$

Currently unavailable

6

Toro 915640-4

Nut-3/4-16 E.S.

$

$

Currently unavailable

7

Toro 102988

Frame Assembly

$

$

Not available

8

Toro 103498

Index Pin

$

$

Not available

9

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

10

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

11

Toro 5117

Spring
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

12

Toro 5125

Lug

$

$

Not available

13

Toro 103019

ROD-TRIP RETURN

$

$

Not available

14

Toro 933512-4

Hairpin

$

$

Currently unavailable

15

Toro 103499

Bushing

$

$

Not available

16

Toro 103501

Sat Collar

$

$

Not available

17

Toro 103007

BUSHING

$

$

Not available

18

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

19

Toro 933243

SPIROL PIN 3/8X1 3/4

$

$

Not available

20

Toro 102997

Assembly-Blade Index Arm

$

$

Not available

21

Toro 103011

Assembly-Handle Bar

$

$

Not available

22

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

23

Toro 933244

SPIROL PIN 3/8X1 1/2

$

$

Not available

24

Toro 103008

Blade Control Rod

$

$

Not available

25

Toro 103504

HANDLE ASM

$

$

Not available

26

Toro 932963-4

Clevis Pin

$

$

Currently unavailable

27

Toro 933505-4

Hairpin

$

$

Currently unavailable

28

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

29

Toro 103009

ROD LOWER INDEX

$

$

Not available

30

Toro 103010

ROD UPPER INDEX

$

$

Not available

31

Toro 103509

YOKE

$46.99

$

Usually ships in 3-6 days

0

32

Toro 932120-4

Pin

$

$

Currently unavailable

33

Toro 933503-4

Hairpin

$

$

Currently unavailable

34

Toro 932001-4

Cotter Pin

$

$

Currently unavailable

35

Toro 920007-4

Washer

$

$

Currently unavailable

36

Toro 103507

Assembly Index Lever

$

$

Not available

37

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

38

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

39

Toro 103013

Assembly-Lift Bar

$

$

Not available

40

Toro 103015

Assembly Lift Rod

$

$

Not available

41

Toro 8010

Breather

$

$

Currently unavailable

42

Toro 900073-4

Bolt-Carr. 3/8-16 x 3 1/2

$

$

Currently unavailable

43

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

44

Toro 7704

Latch Hitch
(Superseded to 104657)

$42.99

$

Usually ships in 3-6 days

0

45

Toro 920009-4

Washer

$

$

Currently unavailable

46

Toro 903036-4

Bolt, 3/8-16 x 1 1/2

$

$

Currently unavailable

47

Toro 933000-4

Pin Clevis

$

$

Currently unavailable

48

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

49

Toro 103018

SPRING

$

$

Not available

50

Toro 933171

Spirol Pin
(Superseded to 32121-94)

$

$

Not available

51

Toro 915665-4

Nut-ES 1/2-13

$

$

Currently unavailable

52

Toro 103000

Assembly Blade-54"

$

$

Not available

52

Toro 103615

Blade Assembly

$

$

Not available

53

Toro 3087

Plate-Blade Edge

$

$

Not available

53

Toro 103618

PLATE-BLADE EDGE
(Superseded to 103618-03)

$

$

Not available

54

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

55

Toro 4564

ROD-LOWER

$35.99

$

Usually ships in 3-6 days

0

56

Toro 2399

Skid
(Superseded to 104742)

$

$

Not available

57

Toro 909554-4

Set Screw-3/8-16 x 1

$

$

Currently unavailable
