6-1121 - Toro 54" Snow/Dozer Blade (1968) DOZER BLADE MODEL 6-2111 (FORMERLY BD-4267) Parts Diagram

54" Snow/Dozer Blade

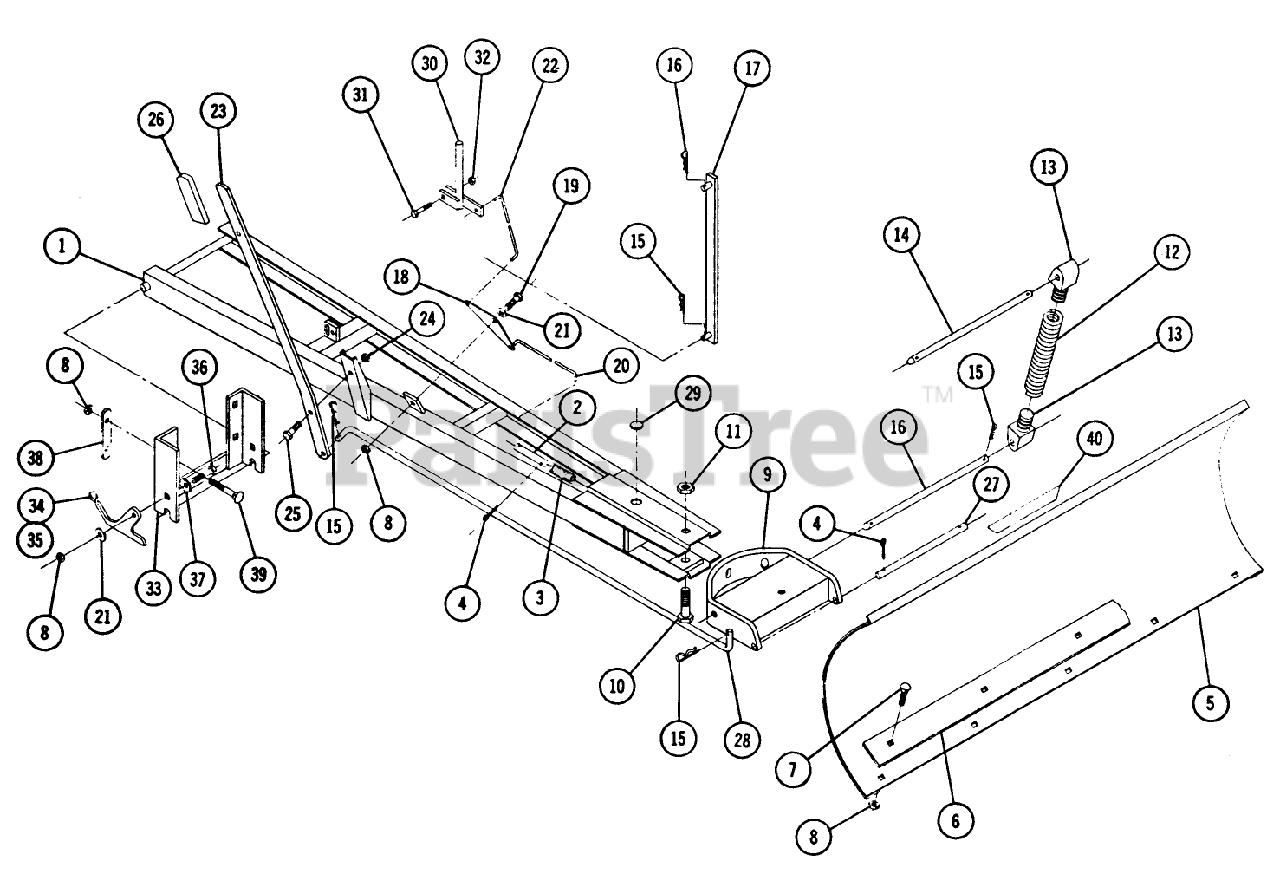

DOZER BLADE MODEL 6-2111 (FORMERLY BD-4267) Parts Diagram

  • Title
1

Toro 5332

Ass-y-Frame
(Superseded to 108567)

$

$

Not available

2

Toro 5127

Index Pin

$

$

Not available

3

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

4

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

5

Toro 5109

Blade

$

$

Not available

6

Toro 2346

Plate
(Superseded to 92-6034-03)

$94.99

$

Usually ships in 3-6 days

0

7

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

8

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

9

Toro 5102

Sector and Channel
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

10

Toro 908256-4

Bolt Hex 3/4-16 x 3 3/4

$

$

Currently unavailable

11

Toro 915640-4

Nut-3/4-16 E.S.

$

$

Currently unavailable

12

Toro 5117

Spring
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

13

Toro 5125

Lug

$

$

Not available

14

Toro 5120

ROD-PIVOT, BLADE

$55.99

$

Usually ships in 3-6 days

0

15

Toro 933512-4

Hairpin

$

$

Currently unavailable

16

Toro 933505-4

Hairpin

$

$

Currently unavailable

17

Toro 5331

Bar-Lift

$

$

Not available

18

Toro 3770

Index Plate
(Superseded to 92-7037)

$

$

Not available

19

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

20

Toro 3771

Head-Cylinder

$24.99

$

In Stock, only 1 left!

0

21

Toro 920009-4

Washer

$

$

Currently unavailable

22

Toro 5329

Rod-Upper Index

$

$

Currently unavailable

23

Toro 5330

Lever

$

$

Currently unavailable

24

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

25

Toro 908057-4

Bolt Hex 1/2-13 x 1

$

$

Currently unavailable

26

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

27

Toro 4564

ROD-LOWER

$35.99

$

Usually ships in 3-6 days

0

28

Toro 4594

Rod-Blade Control

$

$

Not available

29

Toro 4944

PLUG

$8.49

$

Usually ships in 3-6 days

0

30

Toro 5107

INDEX LEVER

$

$

Not available

31

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

32

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

33

Toro 5145

Ass-y Bracket-Mtg.

$

$

Not available

34

Toro 5135

Plate-Latching R.H.
(Superseded to 104657)

$42.99

$

Usually ships in 3-6 days

0

35

Toro 5136

Plate-Latching L.H.
(Superseded to 104657)

$42.99

$

Usually ships in 3-6 days

0

36

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

37

Toro 1336

WASHER

$

$

Not available

38

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

39

Toro 900072-4

Bolt-Carriage 3/8-16 x 3 1/4

$

$

Currently unavailable

40

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available
