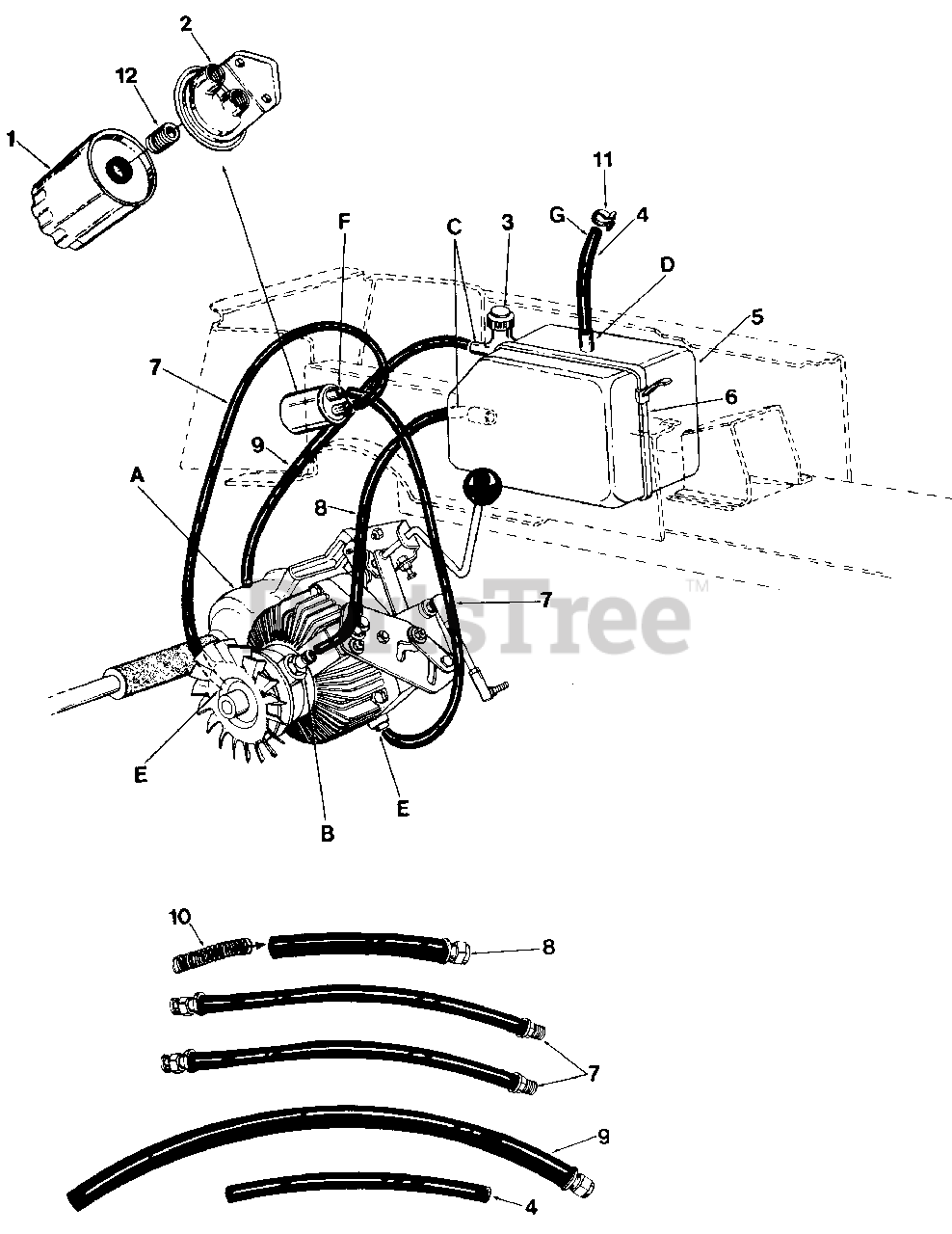

5Z028 (147-862-135) - MTD Garden Tractor (1987) (W.W. Grainger) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 727-0162

Oil Filter

$

$

Not available

2

MTD 727-0163

Filter Base

$

$

Not available

3

MTD 737-0203

Oil Reservoir Cap

$

$

Currently unavailable

4

MTD 751-0173

Gas Line-13" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

5

MTD 737-0202

Oil Reservoir

$

$

Not available

6

MTD 726-0230

Cable Tie 34.25" Lg.

$27.99

$

In Stock, only 1 left!

0

7

MTD 727-0303

Hose Ass'y. 3/8" I.D. x 16.5" Lg.

$

$

Not available

8

MTD 727-0305

Hose Ass'y. 5/8" I.D. x 9" Lg.

$

$

Not available

9

MTD 727-0304

Hose Ass'y. 1/2" I.D.

$

$

Not available

10

Spring-Part of Ref. No. 8

$

$

Not available

11

MTD 726-0161

Wire Retainer

$

$

Not available

12

MTD 726-0164

Plug Expansion 13/16

$

$

Not available

A

MTD 737-0205

7/8-14 SAE Boss to 3/4-16 JIC.

$

$

Not available

B

MTD 737-0204

Adapter-"O"-Ring, Boss to Male JIC.

$

$

Currently unavailable

C

MTD 726-0207

Hose Clamp .406 Dia. for Ref. No. 9

$

$

Not available

MTD 736-0232

Clamp Adj. 1.25 x .66 I.D. for Ref. No. 8

$4.99

$

In Stock, Qty 12

0

D

MTD 726-0207

Hose Clamp 3/8" Dia.

$

$

Not available

E

MTD 737-0206

1/2-20 SAE Boss to 1/2-20 JIC.

$

$

Currently unavailable

F

MTD 727-0222

Pipe Reducer 1/2-14 to 3/8-18 NPT

$

$

Not available

G

MTD 726-0199

Hose Clamp .37 Dia. Finish-Green Paint

$

$

Not available
