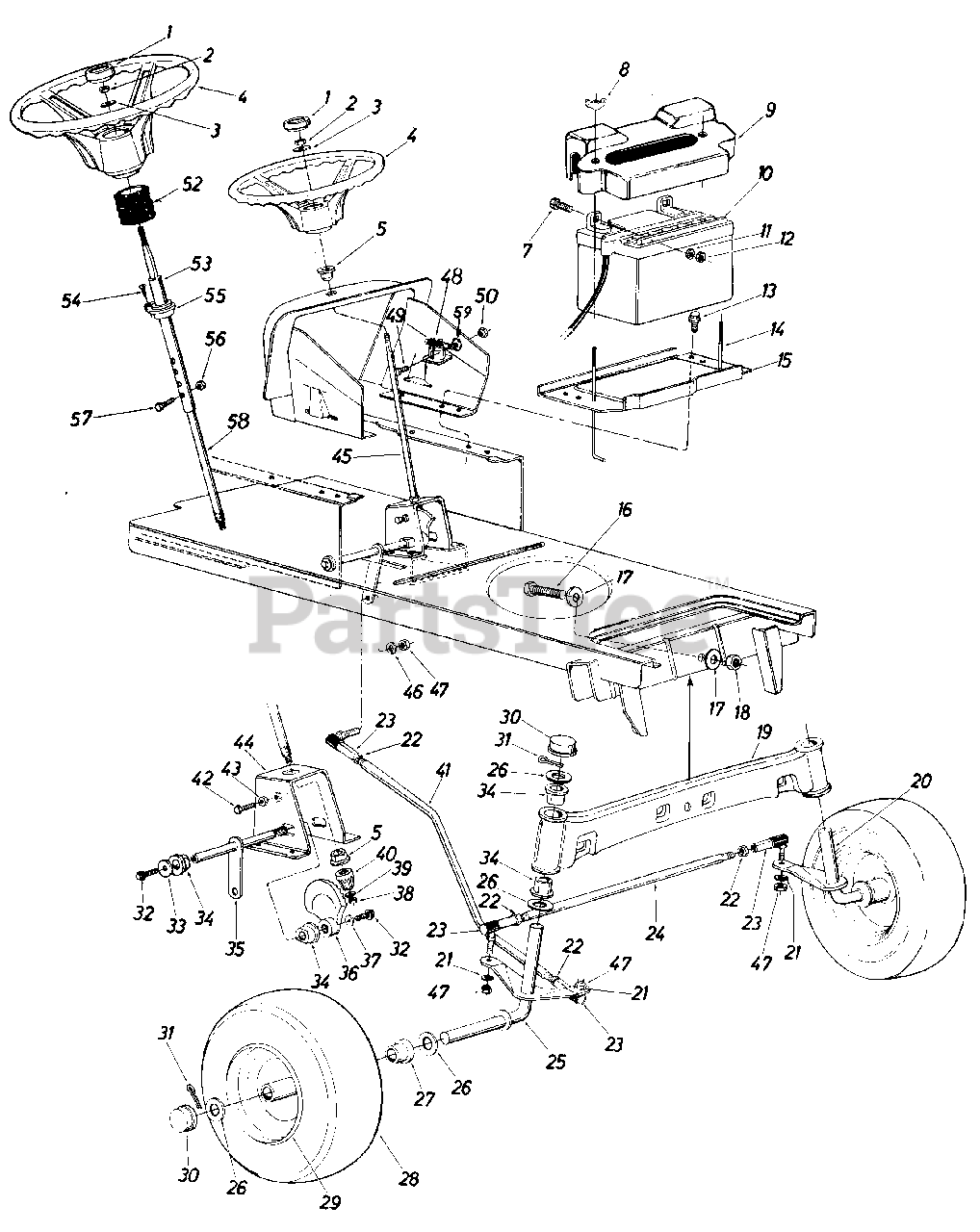

5Z028 (147-862-135) - MTD Garden Tractor (1987) (W.W. Grainger) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0806

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

5

MTD 741-0225

Plastic Hex Bearing 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

7

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

9

MTD 731-0707

Battery Cover

$

$

Not available

10

MTD 725-0453

12-V Battery

$

$

Not available

11

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

13

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

MTD 13379

Battery Plate

$

$

Not available

16

MTD 710-0533

Hex Scr. 5/8-18 x 2.50" Lg.*

$

$

Not available

17

MTD 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

$

$

Not available

18

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 13865

Front Pivot Bar Ass'y.

$

$

Currently unavailable

20

MTD 13839

Front Axle Ass'y.-L.H.

$

$

Currently unavailable

21

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 723-0156

Ball Joint Ass'y.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

MTD 747-0301

Tie Rod

$

$

Not available

25

MTD 13838

Front Axle Ass'y.-R.H.

$

$

Currently unavailable

26

MTD 736-0316

Fl-Wash. .780 I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

27

Flange Bearing

$

$

Not available

MTD 741-0312

Flange Bearing (16 x 6.50) Rib Tread
(Superseded to 941-0312)

$8.99

$

In Stock, only 1 left!

0

MTD 741-0312

Flange Bearing (16 x 6.50) Turf Tread
(Superseded to 941-0312)

$8.99

$

In Stock, only 1 left!

0

28

Front Wheel Ass'y. Comp.

$

$

Not available

MTD 734-1006

Wheel Ass'y. Comp. (16 x 6.50) Rib Tread

$

$

Not available

MTD 734-1223

Wheel Ass'y. Comp. (16 x 6.50) Turf Tread

$

$

Not available

29

Front Wheel Rim Only

$

$

Not available

MTD 734-0787

Rim Only (16 x 6.50) Rib Tread

$

$

Not available

MTD 734-0787

Rim Only (16 x 6.50) Turf Tread

$

$

Not available

30

MTD 731-0484

Dust Cover
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

31

MTD 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

32

MTD 710-0180

Hex Scr. 3/8-24 x .75" Lg. Grade 5

$6.99

$

In Stock, only 3 left!

0

33

MTD 736-0133

Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090

$5.49

$

In Stock, Qty 7

0

34

MTD 741-0199

Flange Double "D" Brg. .753 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

35

MTD 12749

Steering Arm Shaft Ass'y.

$

$

Not available

36

MTD 748-0236

Side Gear-Steering

$101.99

$

In Stock, only 1 left!

0

37

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

39

MTD 736-0264

Fl-Wash. 5/16" I.D. x .62 O.D. x .059

$6.99

$

In Stock, only 1 left!

0

40

MTD 748-0237

Pinion Gear-Steering
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

41

MTD 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

MTD 710-0670

Hex Nylon Scr. 3/8-16 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

44

MTD 12850

Steering Gear Sup. Ass'y.

$

$

Not available

45

MTD 738-0697

Steering Shaft

$

$

Not available

46

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

49

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

50

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

52

MTD 731-0559

Steering Bellow
(Superseded to 731-0559B)

$

$

Not available

53

MTD 16512

Upper Steering Shaft

$

$

Not available

54

MTD 710-0837

Oval Hd. Cr.-Sunk Scr. #10 x 518" Lg.

$4.49

$

In Stock, Qty 5

0

55

MTD 741-0356

Fl-Bearing .89" I.D. x 1.36" O.D.
(Superseded to 741-0356A)

$7.49

$

In Stock, only 3 left!

0

56

MTD 712-0324

Hex L-Nut 1/4-20 Thd

$3.99

$

In Stock, Qty 16

0

57

MTD 710-0959

Hex Bolt 1/4-20 x 1.31" Lg.

$7.49

$

Usually ships in 3-6 days

0

58

MTD 738-0588

Lower Steering Shaft

$

$

Not available

59

MTD 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0
