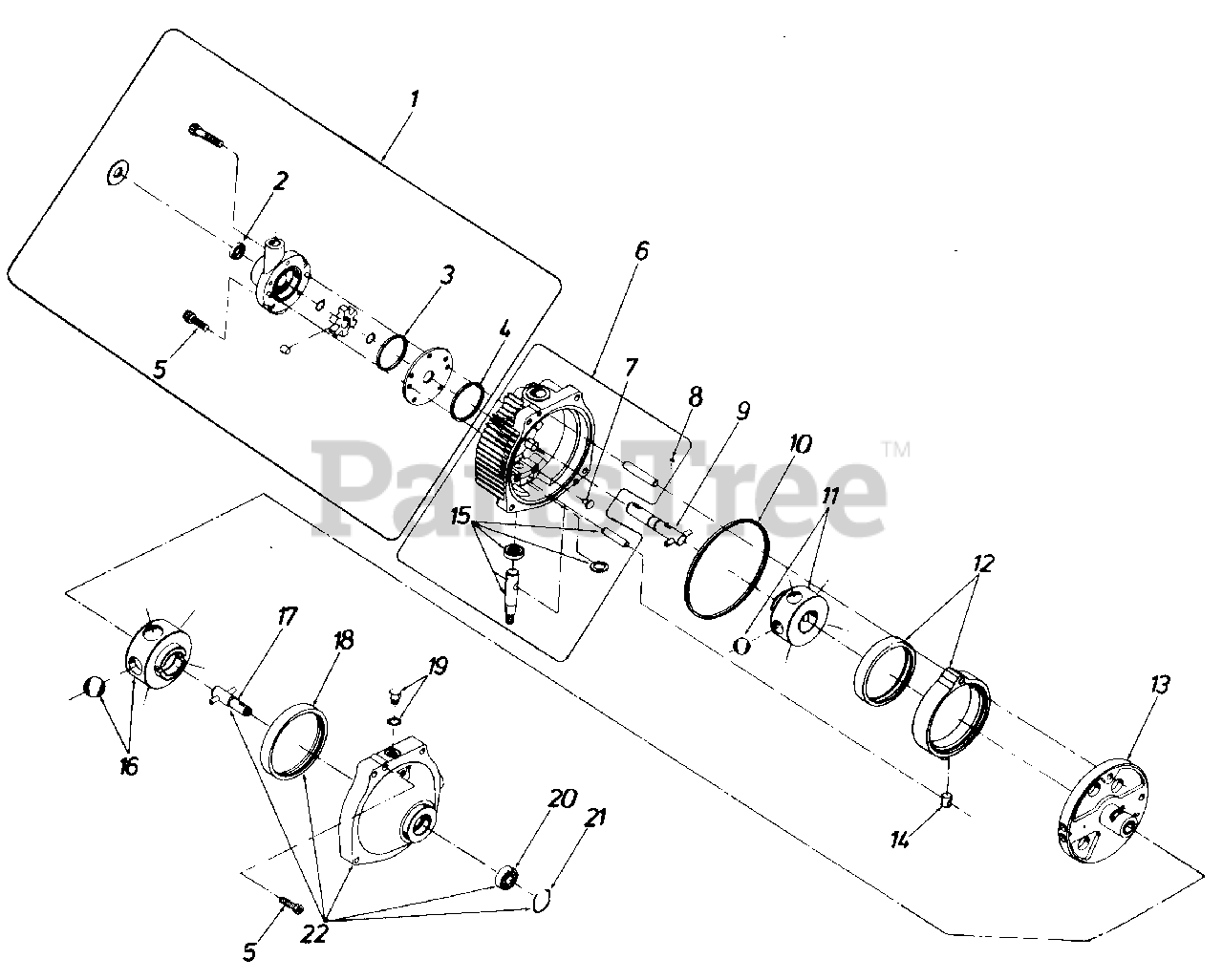

5Z028 (147-862-135) - MTD Garden Tractor (1987) (W.W. Grainger) Hydrostatic Transmission Parts Diagram

Garden Tractor

Hydrostatic Transmission Parts Diagram

  • Title

1

MTD ET-990147-000

Charge Pump Kit

$

$

Currently unavailable

2

MTD ET-093955-000

Oil Seal

$

$

Not available

3

MTD ET-008771-036

Square Cut Seal Ring .036

$

$

Not available

4

MTD ET-008771-038

Square Cut Seal Ring .038

$

$

Not available

5

MTD ET-095912-125

Socket Head Cap Screw 5/16-18 x 1.25" Long

$

$

Currently unavailable

6

MTD ET-990114-000

Cover Subassembly

$

$

Not available

7

MTD ET-101597-000

Button

$

$

Currently unavailable

8

MTD ET-090880-000

Drive Pin

$

$

Currently unavailable

9

MTD ET-024490-000

Input Shaft Subassembly

$

$

Currently unavailable

10

MTD ET-008771-166

Square Cut Seal Ring .166

$17.99

$

Usually ships in 3-6 days

0

11

MTD ET-101470-000

Pump Rotor-Ball Sub-assembly

$

$

Currently unavailable

12

MTD ET-102603-000

Cam Ring Subassembly

$

$

Currently unavailable

13

MTD ET-101975-000

Pintle Subassembly

$

$

Currently unavailable

14

MTD ET-097841-000

Cam Ring Insert

$

$

Not available

15

MTD ET-990136-000

Control Shaft Kit

$

$

Currently unavailable

16

MTD ET-101853-000

Motor Rotor-Ball Sub-assembly

$

$

Currently unavailable

17

MTD ET-024608-000

Output Shaft Subassembly

$

$

Currently unavailable

18

MTD ET-040525-000

Motor Race

$

$

Not available

19

MTD ET-025083-006

"O"-Ring Plug Subassembly

$

$

Not available

20

MTD ET-090797-000

Ball Bearing

Note: (output)

$

$

Not available

21

MTD ET-101680-156

Retaining Ring

$

$

Not available

22

MTD ET-102576-000

Body Subassembly

$

$

Currently unavailable
