5X70MT - Cub Cadet 196cc Engine 5X70MT General Assembly Parts Diagram

196cc Engine

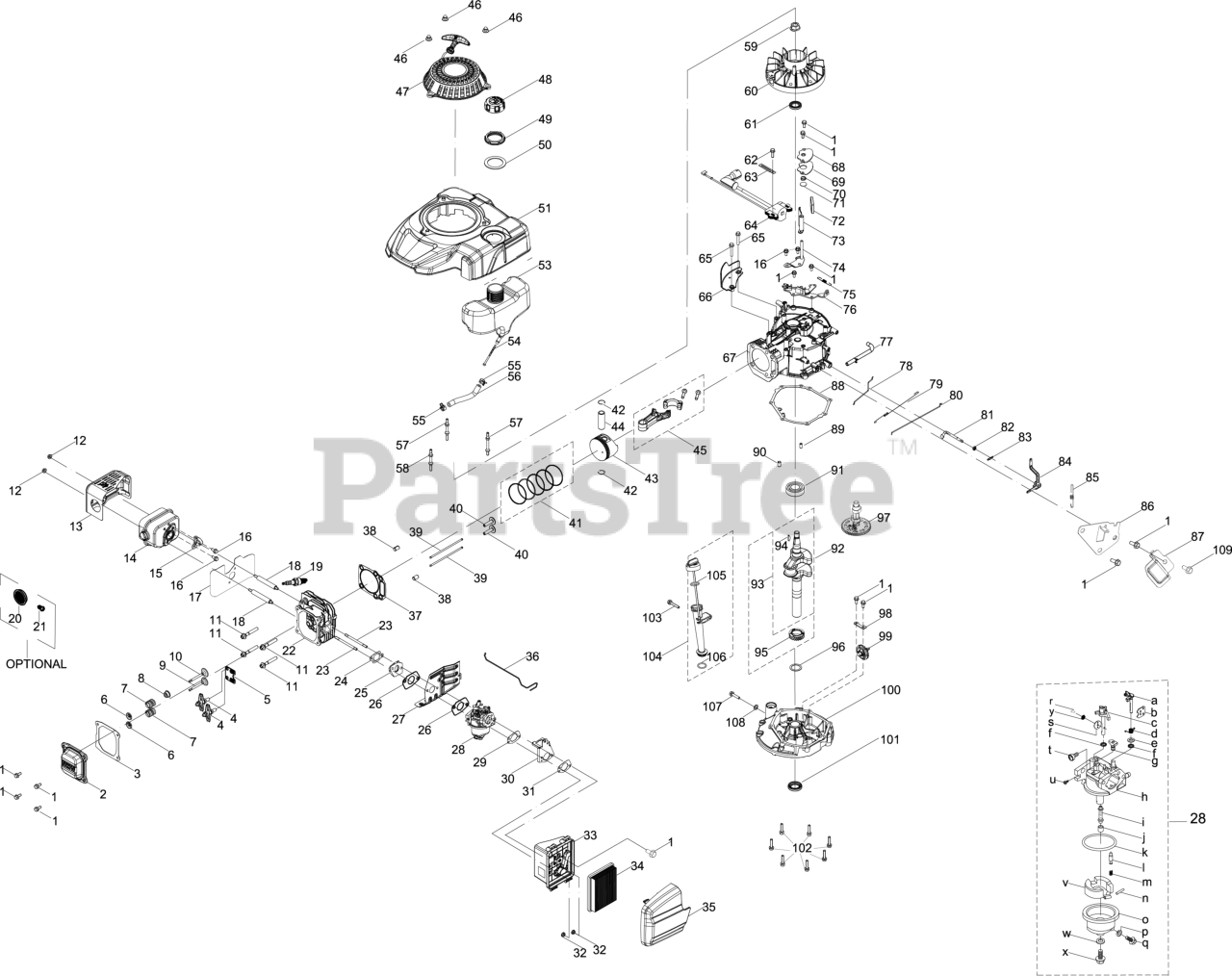

5X70MT General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet 951-14609A

VALVE COVER

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P18586A

VALVE COVER GASKET

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606A

ROCKER ARM

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-16027A

PUSH ROD GUIDE

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 751P12000A

INTAKE VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-12116A

VALVE SPRING

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 921-04237A

INTAKE VALVE SEAL

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-15669A

EXHAUST VALVE

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 751P14099A

INTAKE VALVE

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 951-15566

MUFFLER SHIELD

$27.99

$

In Stock, only 1 left!

0

14

Cub Cadet 951-14429

MUFFLER ASSEMBLY
(Superseded to 951-14429A)

$63.99

$

In Stock, only 3 left!

0

15

Cub Cadet 951-14428A

CHOKE TEMP CONTROL THERMOSTAT

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

17

Cub Cadet 751P18909A

MUFFLER GASKET

$6.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 951-14437A

SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 951-10351A

SPARK ARRESTOR

$55.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-16028A

CYLINDER HEAD

$80.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751P18910A

MUFFLER GASKET

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 951-15671A

CARBURETOR INSULATOR

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 721P05941A

CARBURETOR GASKET

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 751P18913A

HEAT SHIELD

$5.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 951-05538

CARBURETOR ASSEMBLY HY-5X70A

$89.99

$

In Stock, only 2 left!

0

29

Cub Cadet 721P05942A

AIR FILTER BRACKET GASKET

$5.99

$

In Stock, Qty 6

0

30

Cub Cadet 908-05265

AIR FILTER BRACKET

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-14419A

AIR FILTER BASE GASKET

$8.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 931-13118A

AIR FILTER HOUSING BASE

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 951-15245

AIR FILTER

$14.99

$

In Stock, Qty 20+

0

35

Cub Cadet 931-13119A

AIR FILTER COVER

$11.99

$

In Stock, only 1 left!

0

36

Cub Cadet 751-18969A

CHOKE LINKAGE

$

$

Currently unavailable

37

Cub Cadet 921-04257

CYLINDER HEAD GASKET

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-16026

PUSH ROD

$7.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14432A

TAPPET

$8.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-14317

PISTON RING 4PC SET
(Superseded to 951-14317A)

$27.99

$

In Stock, Qty 6

0

42

Cub Cadet 951-11632A

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-15675

PISTON ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751P11633A

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-05539

CONNECTING ROD ASSEMBLY

$27.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

47

Cub Cadet 951-05360A

RECOIL STARTER ASSEMBLY

$57.99

$

In Stock, Qty 19

0

48

Cub Cadet 651P05182

FUEL CAP ASSEMBLY

$2.99

$

In Stock, Qty 12

0

49

Cub Cadet 931-10290A

FUEL TANK NUT

$5.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-14406A

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 631P06879

ENGINE SHROUD

$18.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 731P20471

FUEL TANK

$12.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

55

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

In Stock, Qty 12

0

56

Cub Cadet 935-05202

FUEL HOSE

$4.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

In Stock, only 1 left!

0

58

Cub Cadet 951-14398

STARTER/SHROUD FRONT STUD

$9.99

$

In Stock, only 1 left!

0

59

Cub Cadet 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-14401A

FLYWHEEL

$117.99

$

In Stock, only 1 left!

0

61

Cub Cadet 951-11596A

UPPER CRANKSHAFT SEAL

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-04918

BOLT M6-1 x 20 GR8.8

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-11622A

FLEXIBLE CLAMP

$3.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 925-07165

IGNITION COIL ASSEMBLY

$99.99

$

In Stock, only 4 left!

0

65

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-14597

ENGINE BRAKE COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 751P17947

CRANKCASE

$75.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-14405A

BREATHER GASKET

$8.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-11730A

BREATHER SCREEN

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11529A

AIR VANE

$7.49

$

In Stock, only 1 left!

0

74

Cub Cadet 751P18911

AIR VANE BRACKET

$5.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 932-05566A

ENGINE BRAKE SPRING

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-05530

ENGINE BRAKE ASSEMBLY

$35.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-15678

BREATHER HOSE ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-15679A

CHOKE LINKAGE

$5.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-11258A

THROTTLE SPRING

$4.49

$

In Stock, Qty 5

0

80

Cub Cadet 951-15677A

THROTTLE LINKAGE

$5.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11902A

OIL SEAL

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

85

Cub Cadet 951-15680

GOVERNOR SPRING

$6.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 908-05254

COMPONENT BRACKET

$6.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 908-05255

GOVERNOR SHIELD

$4.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 751P18908A

CRANKCASE COVER GASKET

$7.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 751P11369A

BEARING

$5.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 651P06795

CRANKSHAFT

$75.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 751P18914

CRANKSHAFT

$58.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 9

0

95

Cub Cadet 951-15130A

DRIVE TIMING GEAR

$11.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 736-04491A

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 751P18912

CAMSHAFT

$26.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-11609A

GOVERNOR GEAR MOUNTING PLATE

$4.49

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-05336A

GEAR GOVERNOR

$8.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-15685

CRANKCASE COVER

$88.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-15686A

LOWER CRANKSHAFT OIL SEAL

$9.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

103

Cub Cadet 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

104

Cub Cadet 951-05540A

OIL DIPSTICK

$19.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 921-04795A

O-RING

$3.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 921-04697A

O-RING

$2.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 11

0

108

Cub Cadet 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

109

Cub Cadet 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet 951-05538

CARBURETOR ASSEMBLY HY-5X70A

$89.99

$

In Stock, only 2 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Choke Return Spring

$

$

Not available

e

Cub Cadet 736-04556

WASHER

$4.49

$

Usually ships in 3-6 days

0

f

Cub Cadet 721P04427A

THROTTLE SHAFT GASKET

$2.99

$

Usually ships in 3-6 days

0

g

Idle Jet Assembly

$

$

Not available

h

Carburetor Body

$

$

Not available

i

Emulsion Tube

$

$

Not available

j

Main Jet

$

$

Not available

k

Cub Cadet 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

l

Cub Cadet 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 9

0

m

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

n

Cub Cadet 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

o

Cub Cadet 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

p

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

q

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 8

0

r

Cub Cadet 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

s

Throttle Plate

$

$

Not available

t

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

u

Cub Cadet 793P00129A

IDLE MIXTURE SCREW

$2.99

$

Usually ships in 3-6 days

0

v

Cub Cadet 731P09132A

FLOAT

$5.49

$

Usually ships in 3-6 days

0

w

FUEL BOWL GASKET

$

$

Not available

x

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 12

0

y

Cub Cadet 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet 752Z5X70MT

COMPLETE ENGINE

$

$

Currently unavailable
