5X65VU - Cub Cadet 159cc Engine att 5X65VU General Assembly Parts Diagram

159cc Engine

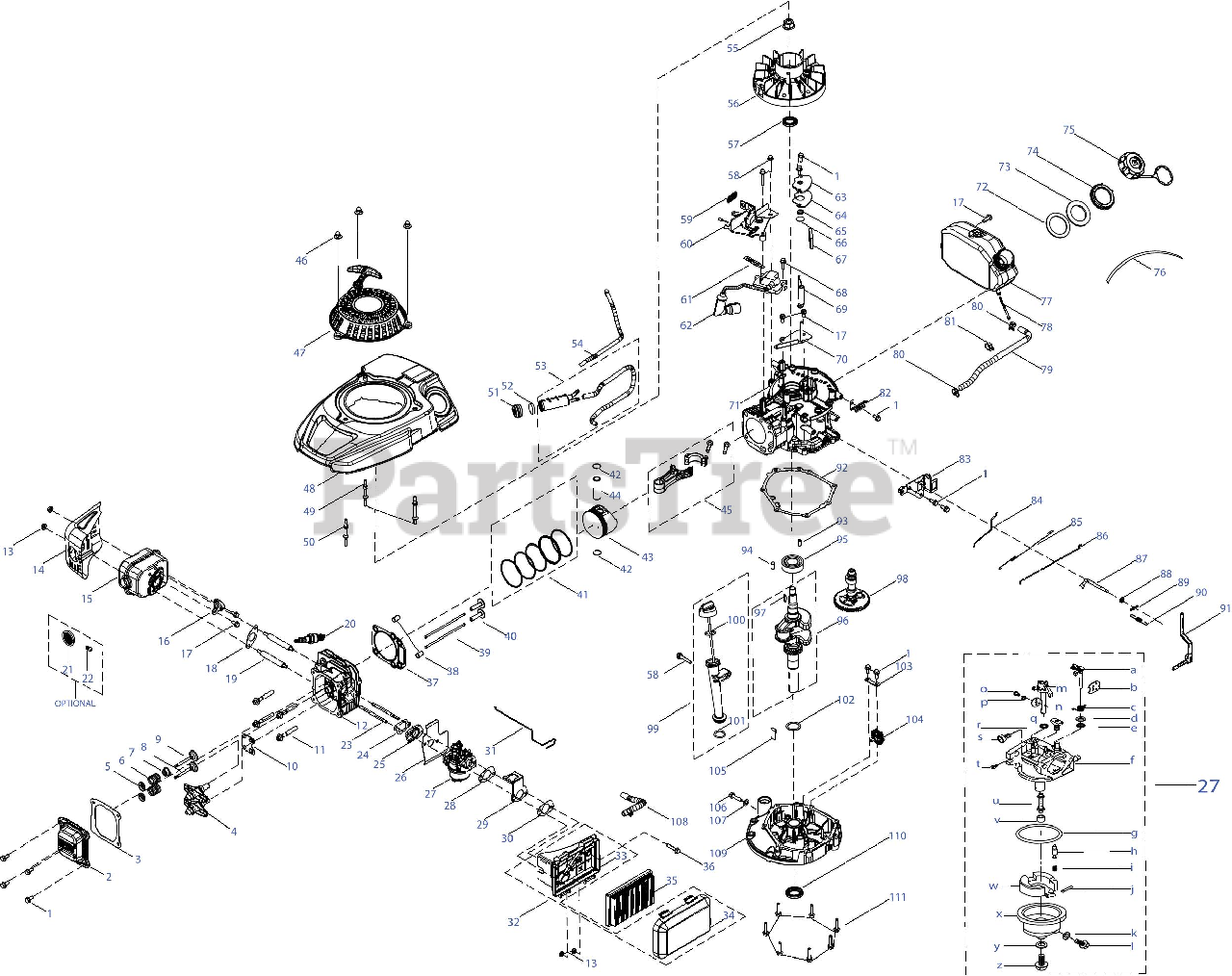

5X65VU General Assembly Parts Diagram

  • Title

1

MTD 710-04916

Bolt M6x14

$4.49

$

Usually ships in 3-6 days

0

2

MTD 951-14609

Valve Cover
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, only 4 left!

0

4

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

5

MTD 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

6

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

7

MTD 921-04237

Intake Valve Seal
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

8

MTD 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

9

MTD 951-14640

Intake Valve
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

11

MTD 910-06185

Bolt M8x54 Cylinder Head

$6.99

$

Usually ships in 3-6 days

0

12

MTD 951-14639

Cylinder Head

$123.99

$

Usually ships in 3-6 days

0

13

MTD 712-05015

Nut M6X10

$6.99

$

In Stock, Qty 6

0

14

MTD 951-15072

Muffler Shield

$25.99

$

Usually ships in 3-6 days

0

15

MTD 951-14429

Muffler Assembly
(Superseded to 951-14429A)

$63.99

$

In Stock, only 2 left!

0

16

MTD 951-14428

Choke Thermal Control
(Superseded to 951-14428A)

$41.99

$

In Stock, only 1 left!

0

17

MTD 710-04915

Bolt M6x12

$4.49

$

In Stock, only 3 left!

0

18

MTD 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, only 1 left!

0

19

MTD 710-05094

Muffler Stud M6x95

$4.49

$

In Stock, only 2 left!

0

20

MTD 951-14437

Spark Plug/F5RTC

$8.49

$

In Stock, Qty 20+

0

21

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

22

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

23

MTD 951-14425

Carb Stud M6x87

$7.49

$

Usually ships in 3-6 days

0

24

MTD 951-11528

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 6

0

25

MTD 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

$5.49

$

Usually ships in 3-6 days

0

26

MTD 951-14424

Carburetor Gasket

$10.99

$

In Stock, only 2 left!

0

27

MTD 951-05298

Carburetor Assembly

$95.99

$

In Stock, only 4 left!

0

28

MTD 951-14422

Air Filter Bracket Gasket

$7.99

$

In Stock, only 1 left!

0

29

MTD 951-14420

Choke Thermal Control Bracket
(Superseded to 951-14420A)

$10.99

$

In Stock, only 3 left!

0

30

MTD 951-14419

Air Filter Base Gasket
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

31

MTD 951-14421

Temp Control Linkage

$

$

Not available

32

MTD 951-14631

Air Filter Assembly

$18.99

$

In Stock, only 1 left!

0

33

Air Filter Base

$

$

Not available

34

MTD 931-10202

Air Filter Cover

$10.99

$

In Stock, only 1 left!

0

35

MTD 951-14632

Air Filter Element, Paper
(Superseded to 951-14632A)

$15.99

$

In Stock, only 3 left!

0

36

MTD 710-04969

Bolt M6x30

$4.49

$

In Stock, only 3 left!

0

37

MTD 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

38

MTD 715-04108

Cylinder Head Dowel Pin 10x16

$4.49

$

In Stock, only 1 left!

0

39

MTD 747-04862

Push Rod

$6.49

$

In Stock, Qty 6

0

40

MTD 951-14432

Tappet
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

41

MTD 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$39.99

$

In Stock, only 2 left!

0

42

MTD 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

43

MTD 951-14434

Piston
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

44

MTD 951-14435

Piston Pin

$12.99

$

Usually ships in 3-6 days

0

45

MTD 951-14436

Connecting Rod Assembly

$

$

Not available

46

MTD 712-04276

Starter Acorn Nut
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

47

MTD 951-05360

Starter Recoil Assembly
(Superseded to 951-05360A)

$57.99

$

In Stock, only 2 left!

0

48

MTD 631-05112

Engine Shroud Assembly
(Superseded to 931-05112)

$35.99

$

Usually ships in 3-6 days

0

49

MTD 951-14397

Shroud Stud M6x78.5

$9.99

$

Usually ships in 3-6 days

0

50

MTD 951-14398

Shroud Stud M6x74

$9.99

$

Usually ships in 3-6 days

0

51

MTD 951-14127

Carbon Canister Filter Cap

$7.49

$

Usually ships in 3-6 days

0

52

MTD 951-14400

Carbon Canister Filter

$13.99

$

Usually ships in 3-6 days

0

53

MTD 951-14629

Carbon Canister Assembly

$29.99

$

Usually ships in 3-6 days

0

54

MTD 935-05046

Carbon Canister Purge Hose

$7.49

$

In Stock, only 1 left!

0

55

MTD 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

56

MTD 951-14401

Flywheel
(Superseded to 951-14401A)

$117.99

$

In Stock, only 1 left!

0

57

MTD 951-11596

Upper Crankshaft Seal

$6.49

$

In Stock, only 1 left!

0

58

MTD 710-04980

Bolt M6x35

$3.99

$

In Stock, only 1 left!

0

59

MTD 732-04546

Brake Spring
(Superseded to 932-04546)

$5.99

$

In Stock, only 1 left!

0

60

MTD 751-15543

Brake Assembly
(Superseded to 951-15543)

$39.99

$

Usually ships in 3-6 days

0

61

MTD 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

62

MTD 725-07281

Ignition Coil Assembly
(Superseded to 925-07281)

$49.99

$

Usually ships in 3-6 days

0

63

MTD 951-14404

Breather Cover Plate

$14.99

$

Usually ships in 3-6 days

0

64

MTD 951-14405

Breather Gasket

$10.99

$

Usually ships in 3-6 days

0

65

MTD 732-04718

Breather Valve Spring

$4.49

$

In Stock, only 1 left!

0

66

MTD 951-11614

Breather Valve

$4.49

$

In Stock, only 1 left!

0

67

MTD 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

68

MTD 710-04918

Bolt M6x20

$4.49

$

Usually ships in 3-6 days

0

69

MTD 951-11529

Air Vane
(Superseded to 951-11529A)

$7.49

$

Usually ships in 3-6 days

0

70

MTD 951-14719

Air Vane Bracket

$8.49

$

Usually ships in 3-6 days

0

71

MTD 951-14635

Crankcase

$191.99

$

Usually ships in 3-6 days

0

72

MTD 731-08133

Fuel Tank Lower Grommet

$8.49

$

Usually ships in 3-6 days

0

73

MTD 951-14406

Fuel Tank Upper Grommet

$12.99

$

Usually ships in 3-6 days

0

74

MTD 731-08104

Fuel Tank Nut

$7.49

$

In Stock, only 2 left!

0

75

MTD 951-14407

Fuel Cap Assembly

$14.99

$

In Stock, only 4 left!

0

76

MTD 725-06031

Plastic Tie 150Mm

$2.49

$

Usually ships in 3-6 days

0

77

MTD 931-04629

Fuel Tank

$69.99

$

In Stock, Qty 10

0

78

MTD 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

79

MTD 935-05047

Fuel Hose

$15.99

$

Usually ships in 3-6 days

0

80

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

81

MTD 723-04071

Plastic Support Clamp, Hose
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

82

MTD 951-11680

Flexible Clamp

$4.49

$

Usually ships in 3-6 days

0

83

MTD 751-15800

Component Bracket
(Superseded to 951-15800)

$5.99

$

Usually ships in 3-6 days

0

84

MTD 951-14408

Choke Linkage

$6.49

$

In Stock, only 2 left!

0

85

MTD 951-14409

Throttle Linkage Spring

$8.99

$

In Stock, only 2 left!

0

86

MTD 951-14410

Throttle Linkage

$8.49

$

In Stock, only 1 left!

0

87

MTD 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

88

MTD 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

89

MTD 714-04078

Governor Arm Shaft Cotter Pin

$4.49

$

In Stock, only 1 left!

0

90

MTD 951-14411

Governor Spring

$9.99

$

Usually ships in 3-6 days

0

91

MTD 651-05485

Governor Arm Assembly
(Superseded to 951-05485)

$7.99

$

Usually ships in 3-6 days

0

92

MTD 951-14415

Crankcase Cover Gasket

$14.99

$

In Stock, only 3 left!

0

93

MTD 715-04092

Crankcase Cover Dowel Pin 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

94

MTD 715-04096

Crankcase Cover Dowel Pin 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

95

MTD 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

96

MTD 951-14417

Crankshaft Assembly

$212.99

$

Usually ships in 3-6 days

0

97

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

98

MTD 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

99

MTD 951-05438

Dipstick Assembly

$13.99

$

In Stock, only 2 left!

0

100

MTD 921-04795

Dipstick / Oil Fill Tube O-Ring
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 921-04697

Dipstick / Oil Fill Tube O-Ring

$3.49

$

Usually ships in 3-6 days

0

102

MTD 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

103

MTD 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

104

MTD 951-11549

Governor Gear/Shaft Assembly

$12.99

$

Usually ships in 3-6 days

0

105

MTD 951-11733

Oil Return Seal

$4.99

$

In Stock, only 1 left!

0

106

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

107

MTD 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

108

MTD 951-11520

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

109

MTD 951-14418

Crankcase Cover

$

$

Not available

110

MTD 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

111

MTD 710-04943

Bolt M6x28

$4.49

$

In Stock, only 2 left!

0

27

MTD 951-05298

Carburetor Assembly

$95.99

$

In Stock, only 4 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Choke Return Spring

$

$

Not available

d

Choke Shaft Washer

$

$

Not available

e

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

f

Carburetor Body

$

$

Not available

g

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

h

Needle Valve

$

$

Not available

i

Needle Valve Spring

$

$

Not available

j

Float Pin

$

$

Not available

k

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

l

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

m

Throttle Shaft

$

$

Not available

n

Idle Jet Assembly

$

$

Not available

o

Screw M3x6 Throttle Plate

$

$

Not available

p

MTD 736-04638

Throttle Plate Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

q

Throttle Plate

$

$

Not available

r

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

s

Idle Speed Adjusting Screw

$

$

Not available

t

Idle Mixture Screw

$

$

Not available

u

Emulsion Tube

$

$

Not available

v

Main Jet

$

$

Not available

w

Float

$

$

Not available

x

MTD 908-05001

Fuel Bowl

$8.49

$

In Stock, only 1 left!

0

y

MTD 951-11348

Fuel Bowl Mounting Bolt Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

Z

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

MTD 952Z5X65VU

Complete Engine
(Superseded to 952Z5X65VUC)

$

$

Not available
