5W694 (9308-0) - Generac 4,000 Watt Portable Generator Generator Model No. 5W964 Parts Diagram

4,000 Watt Portable Generator

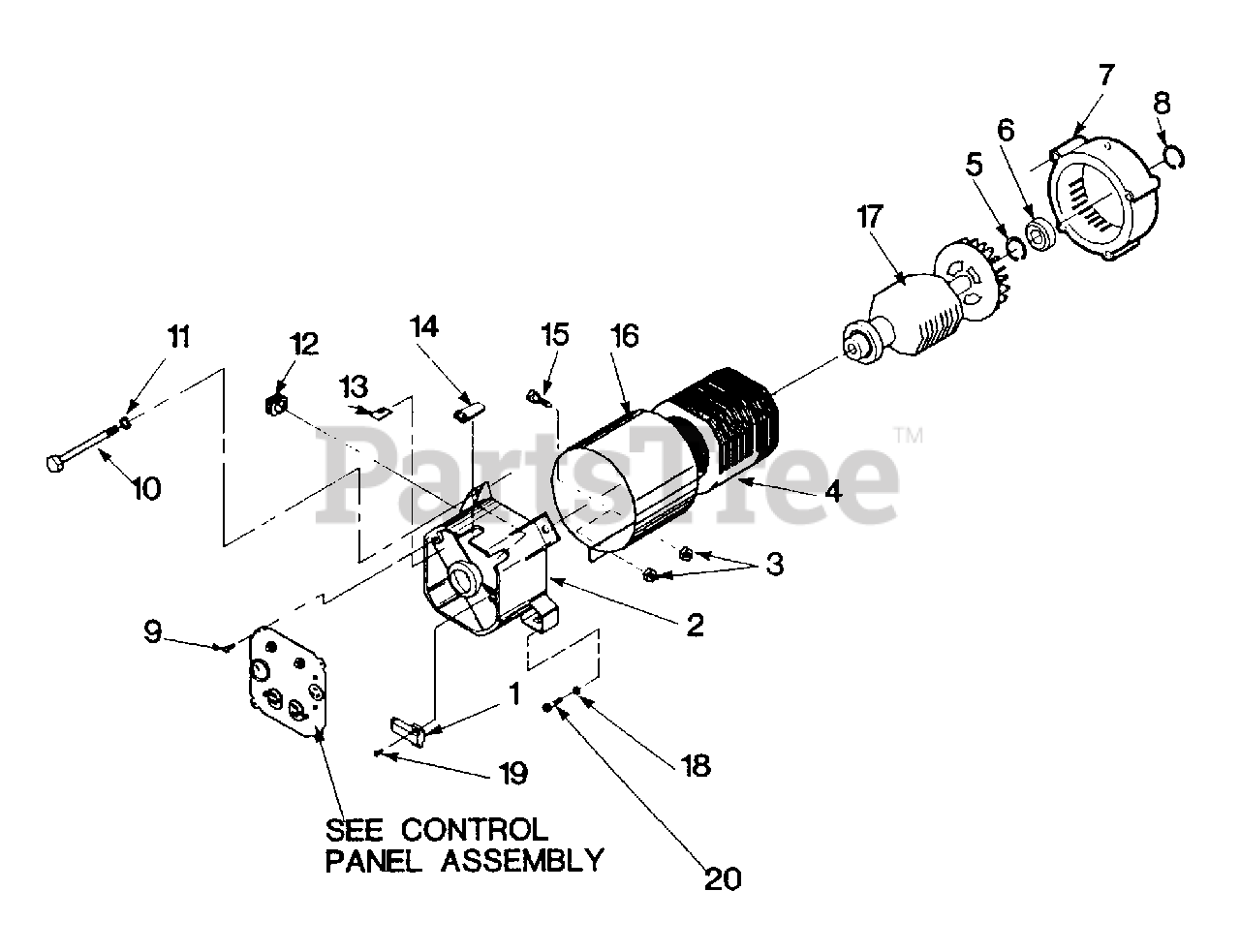

Generator Model No. 5W964 Parts Diagram

  • Title

1

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

2

Briggs & Stratton 84115

Rear bearing carrier

$

$

Currently unavailable

3

Briggs & Stratton 52856

M5-0.8 Locking nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77259G

Stator assembly

$

$

Currently unavailable

5

Briggs & Stratton 22816

Snap ring
(Superseded to 5022816)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 31971

Ball bearing

$

$

Not available

7

Briggs & Stratton 81133

Front bearing carrier

$

$

Currently unavailable

8

Briggs & Stratton 22122

Snap ring

$

$

Currently unavailable

9

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66449E

M6-1.0 x 115mm Bolt

$

$

Currently unavailable

11

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66850

Bridge rectifier assembly
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84242

Plastic grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52618

M5-0.8 x 12mm Hex head screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81887A

Alternator wrap
(Superseded to 81887AGS)

$18.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89798G

Rotor assembly

$

$

Not available

18

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

Note: Contact Generac for quantity required.

$462.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66849

M5-0.8 x 16mm Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 90164

M6-1.0 x 16mm Phillips pan head screw

$

$

Not available
