5W694 (9308-0) - Generac 4,000 Watt Portable Generator Control Panel Model No. 5W964 Parts Diagram

4,000 Watt Portable Generator

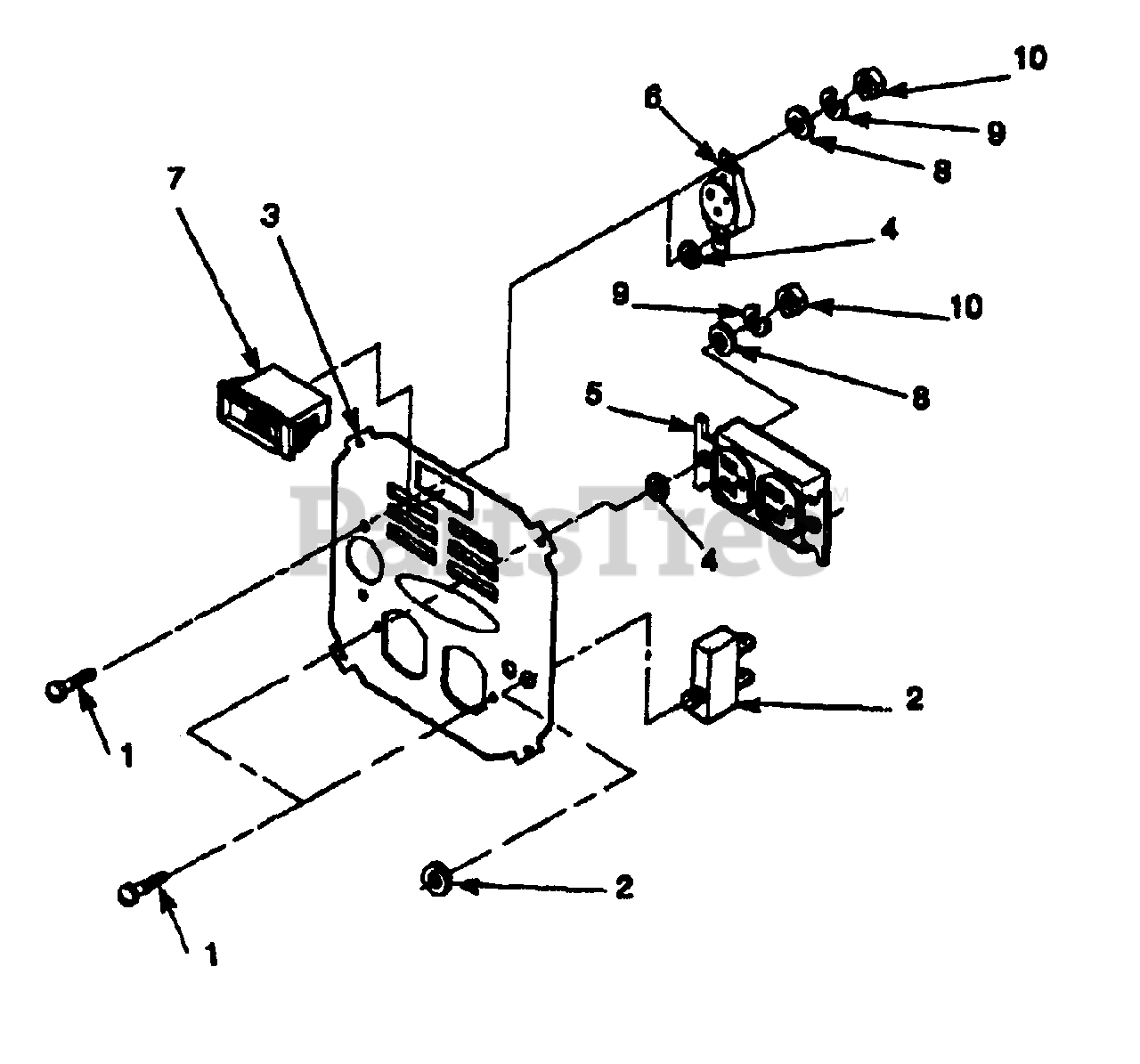

Control Panel Model No. 5W964 Parts Diagram

  • Title
1

Briggs & Stratton 75476

M4-0.7 x 16mm Phillips pan head machine screw
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 66819

20 amp Circuit breaker

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68759

120 volts, 20 amp Duplex receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 68735

240 volts, 20 amp Receptacle

$

$

Not available

7

$

$

Currently unavailable

8

Briggs & Stratton 22985

M4 Flatwasher

$

$

Not available

9

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

10

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0
