5W693 (9307-0) - Generac 2,000 Watt Portable Generator Generator No. 9307-0 Model No. 5W963 Parts Diagram

2,000 Watt Portable Generator

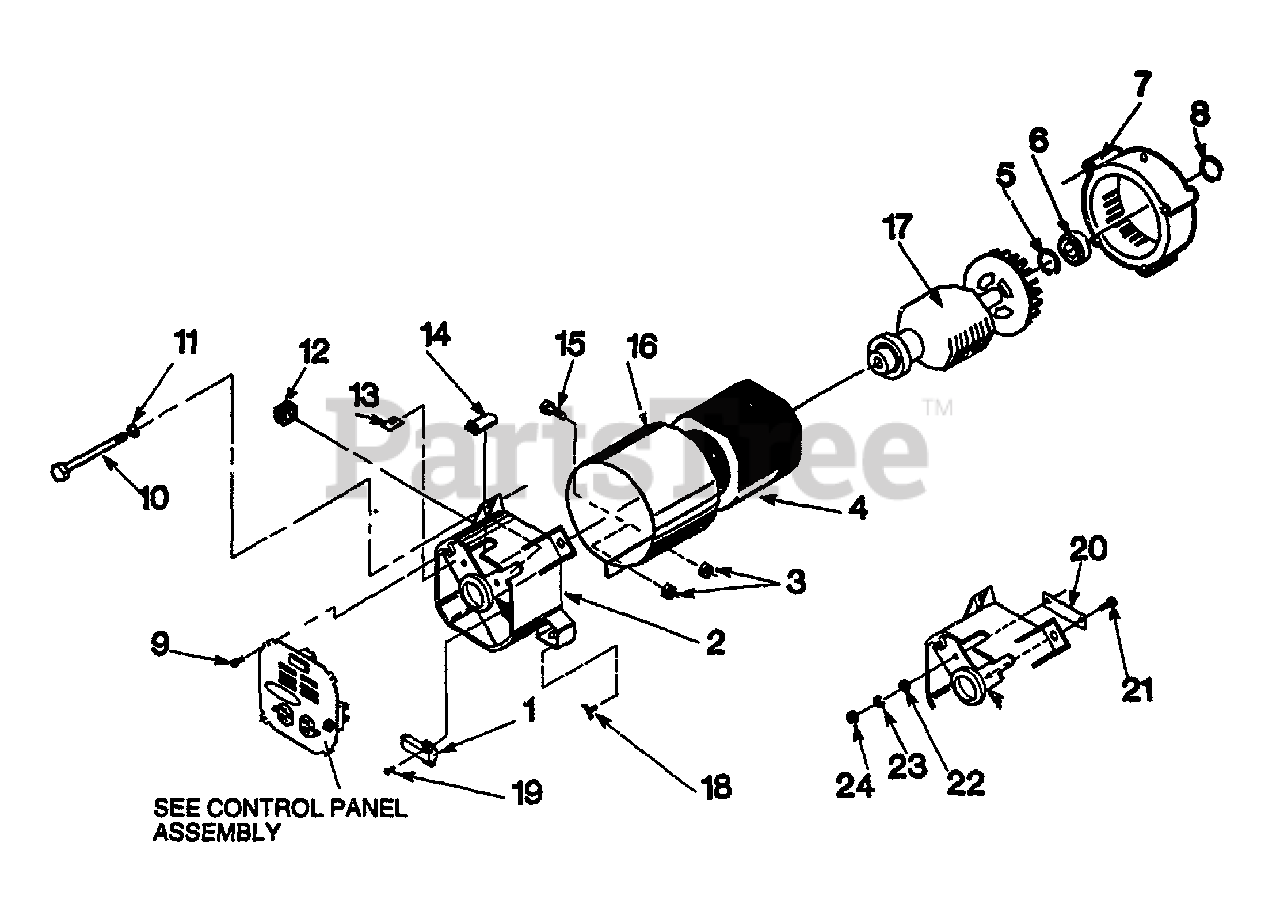

Generator No. 9307-0 Model No. 5W963 Parts Diagram

  • Title
1

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

2

Briggs & Stratton 90083

Rear bearing carrier

$

$

Currently unavailable

3

Briggs & Stratton 52856

M5-0.8 Locking nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77258G

Stator assembly

$

$

Not available

5

Briggs & Stratton 22816

Snap ring
(Superseded to 5022816)

$3.99

$

Usually ships in 2-12 days

0

6

$

$

Not available

7

Briggs & Stratton 81133

Front bearing carrier

$

$

Currently unavailable

$

$

Currently unavailable

9

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66449C

M6-1.0 x 80mm Bolt

$

$

Currently unavailable

11

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66850

Bridge rectifier assembly
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84242

Plastic grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52618

M5-0.8 x 12mm Hex head screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81887A

Alternator wrap
(Superseded to 81887AGS)

$18.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89582G

Rotor assembly

$

$

Currently unavailable

18

Briggs & Stratton 86494

M6-1.0 x 16mm Thumb screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66849

M5-08 x 16mm Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 90080

Retaining bar

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 51787

M4-0.7 x 16mm Hex head capscrew

$

$

Not available

22

Briggs & Stratton 22985

M4 Flatwasher

$

$

Not available

23

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

24

Briggs & Stratton 51715

M4 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0
