5R65MU - Troy-Bilt 149cc Engine 5R65MU General Assembly Parts Diagram

149cc Engine

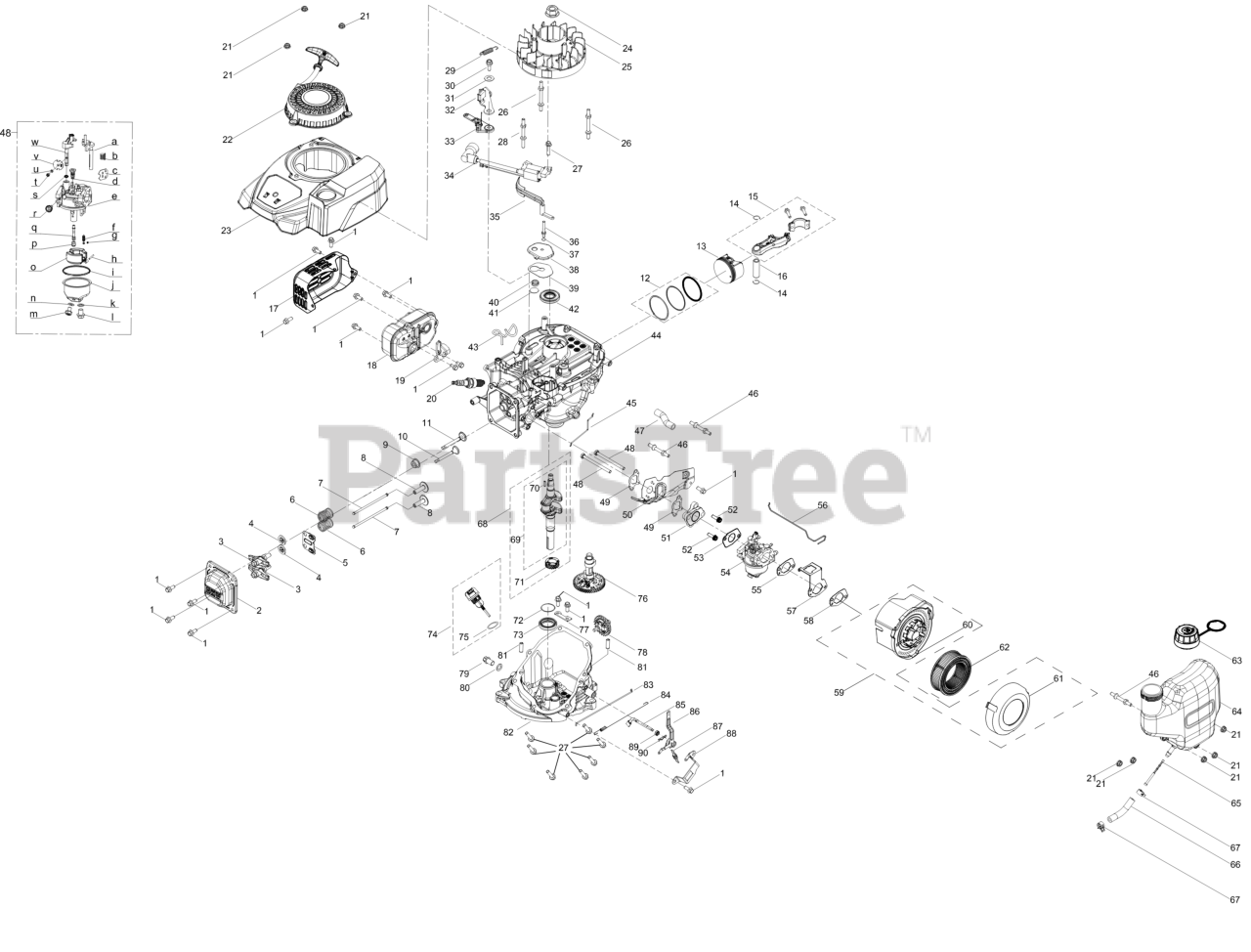

5R65MU General Assembly Parts Diagram

  • Title
1

Troy-Bilt 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

Troy-Bilt 751P15154A

VALVE COVER

$5.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 751P15178

PUSH ROD GUIDE

$1.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 5

0

7

Troy-Bilt 751P16029

PUSH ROD GUIDE

$1.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 951-11607

TAPPET (LIFTER)

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 921-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 951-11603A

WRIST PIN CLIP

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 651P05695

CONNECTING ROD ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 751P15133A

MUFFLER GUARD

$11.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 751P21750

MUFFLER ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 751P21751

CHOKE CONTROL THERMOSTAT

$14.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

21

$6.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 651P08015

RECOIL STARTER

$29.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 631P07660

ENGINE SHROUD

$13.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

25

$33.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 751-21754

SHROUD STUD M6x85

$3.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 751-21753

SHROUD STUD M6x83

$2.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 932-05379

ENGINE BRAKE SPRING

$4.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 911-06531

ENGINE BRAKE PIN M6-1.0 MM

$35.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 936-05145

FLAT WASHER 10x20x1.0 MM

$4.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 951-15098

ENGINE BRAKE ARM

$8.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 651-05306

ENGINE BRAKE LOWER BRACKET
(Superseded to 951-05306)

$59.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 725P15985

IGNITION COIL

$20.99

$

Usually ships in 3-6 days

0

35

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 951-14734

PIVOT VANE STUD

$6.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 736-05099

FLAT WASHER 6x1x18

$0.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 708-05172

BREATHER COVER PLATE

$1.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 721-04830

BREATHER GASKET

$1.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

42

Troy-Bilt 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 751P21729

IGNITION WIRE SUPPORT

$2.99

$

Usually ships in 3-6 days

0

44

$93.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 751P21730

CHOKE LINKAGE

$2.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751P15136

FUEL TANK MOUNTING STUD M6X59.5

$1.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 735P06938

BREATHER HOSE

$2.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 710-06220

BOLT M6X80

$0.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 751P21408

CARBURETOR GASKET

$2.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 751P21749

CARB HEAT SHIELD

$3.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 751P15138

CARBURETOR INSULATOR
(Superseded to 751P15138A)

$4.49

$

In Stock, only 1 left!

0

52

Troy-Bilt 710-06195

BOLT M6X20

$0.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 721P05941

CARBURETOR GASKET
(Superseded to 721P05941A)

$3.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 651-07815

Carburetor Assembly
(Superseded to 651P07815)

$45.99

$

In Stock, only 3 left!

0

55

Troy-Bilt 721P05942

AIR FILTER BRACKET GASKET
(Superseded to 721P05942A)

$5.99

$

In Stock, Qty 6

0

56

Troy-Bilt 751P21748

TEMP CONTROL LINKAGE

$2.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-14420

CHOKE TEMP CONTROL BRACKET
(Superseded to 951-14420A)

$10.99

$

In Stock, only 3 left!

0

58

Troy-Bilt 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 631P07659

AIR FILTER ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 731P24632

AIR FILTER BASE

$5.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 731P24633

AIR FILTER COVER

$6.99

$

In Stock, Qty 5

0

62

Troy-Bilt 951-14628

PAPER AIR FILTER

$

$

Not available

62

Troy-Bilt 490-200-M057

Genuine Factory Parts AIR FILTER

Note: Retail Packaged Part

$14.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 951-15255

FUEL CAP W/TETHER
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

64

$22.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

66

Troy-Bilt 735P05142

FUEL HOSE
(Superseded to 735P05142A)

$7.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 651P05715

CRANKSHAFT ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 751P16186

CRANKSHAFT ASSEMBLY

$68.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 10

0

71

Troy-Bilt 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

74

Troy-Bilt 651P05334

DIPSTICK ASSEMBLY
(Superseded to 651P05334A)

$4.49

$

Usually ships in 3-6 days

0

75

Troy-Bilt 721-04839

DIPSTICK SEAL

$0.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 751P16187

CAMSHAFT ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-05336

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 951-05336A)

$8.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 12

0

80

Troy-Bilt 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

81

Troy-Bilt 715-05058

DOWEL PIN 7X20

$0.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 751P15152

CRANKCASE COVER

$87.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 751P15144

THROTTLE LINKAGE

$3.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 732P05411

THROTTLE LINKAGE SPRING

$4.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 751P15143

GOVERNOR ARM SHAFT

$1.49

$

Usually ships in 3-6 days

0

86

Troy-Bilt 651P05327

GOVERNOR ARM ASSEMBLY

$2.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 951-14411

GOVERNOR SPRING

$9.99

$

In Stock, only 1 left!

0

88

Troy-Bilt 708-05179

COMPONENT BRACKET

$1.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 751P15150

GOVERNOR SEAL

$1.49

$

Usually ships in 3-6 days

0

90

$3.99

$

Usually ships in 3-6 days

0

a

Troy-Bilt 711P06281A

CHOKE SHAFT

$2.99

$

Usually ships in 3-6 days

0

b

Troy-Bilt 732P05200A

CHOKE RETURN SPRING

$2.99

$

Usually ships in 3-6 days

0

c

Troy-Bilt 751P21428

CHOKE PLATE

$2.99

$

Usually ships in 3-6 days

0

d

Idle Jet Assembly

$

$

Not available

e

Carburetor Body

$

$

Not available

f

Troy-Bilt 751P14049A

NEEDLE VALVE

$3.49

$

Usually ships in 3-6 days

0

g

Troy-Bilt 732P05025A

NEEDLE VALVE SPRING

$3.49

$

In Stock, only 1 left!

0

h

$2.99

$

Usually ships in 3-6 days

0

i

Troy-Bilt 721-04710

FLOAT BOWL O-RING
(Superseded to 721-04710A)

$2.49

$

In Stock, Qty 10

0

j

$5.99

$

Usually ships in 3-6 days

0

k

Troy-Bilt 721-04709

FLOAT BOWL GASKET

$0.99

$

Usually ships in 3-6 days

0

l

Troy-Bilt 710-06226

FUEL BOWL BOLT

$3.49

$

Usually ships in 3-6 days

0

m

Troy-Bilt 710-06227

FUEL DRAIN PLUG

$3.49

$

Usually ships in 3-6 days

0

n

Troy-Bilt 721P04711A

FUEL DRAIN PLUG GASKET

$1.99

$

Usually ships in 3-6 days

0

$5.49

$

Usually ships in 3-6 days

0

p

Main Jet

$

$

Not available

q

Emulsion Tube

$

$

Not available

r

Troy-Bilt 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

s

Troy-Bilt 721P04714A

CARB SHAFT GASKET

$1.49

$

Usually ships in 3-6 days

0

t

Troy-Bilt 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

u

Troy-Bilt 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

v

Troy-Bilt 708P05096A

THROTTLE PLATE

$2.99

$

Usually ships in 3-6 days

0

w

Troy-Bilt 711P06814

THROTTLE SHAFT

$2.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z5R65MU

COMPLETE ENGINE 149cc

$313.99

$

Usually ships in 3-6 days

0
