5P70MU - Troy-Bilt Engine 5P70MU Cylinder Head Parts Diagram

Engine

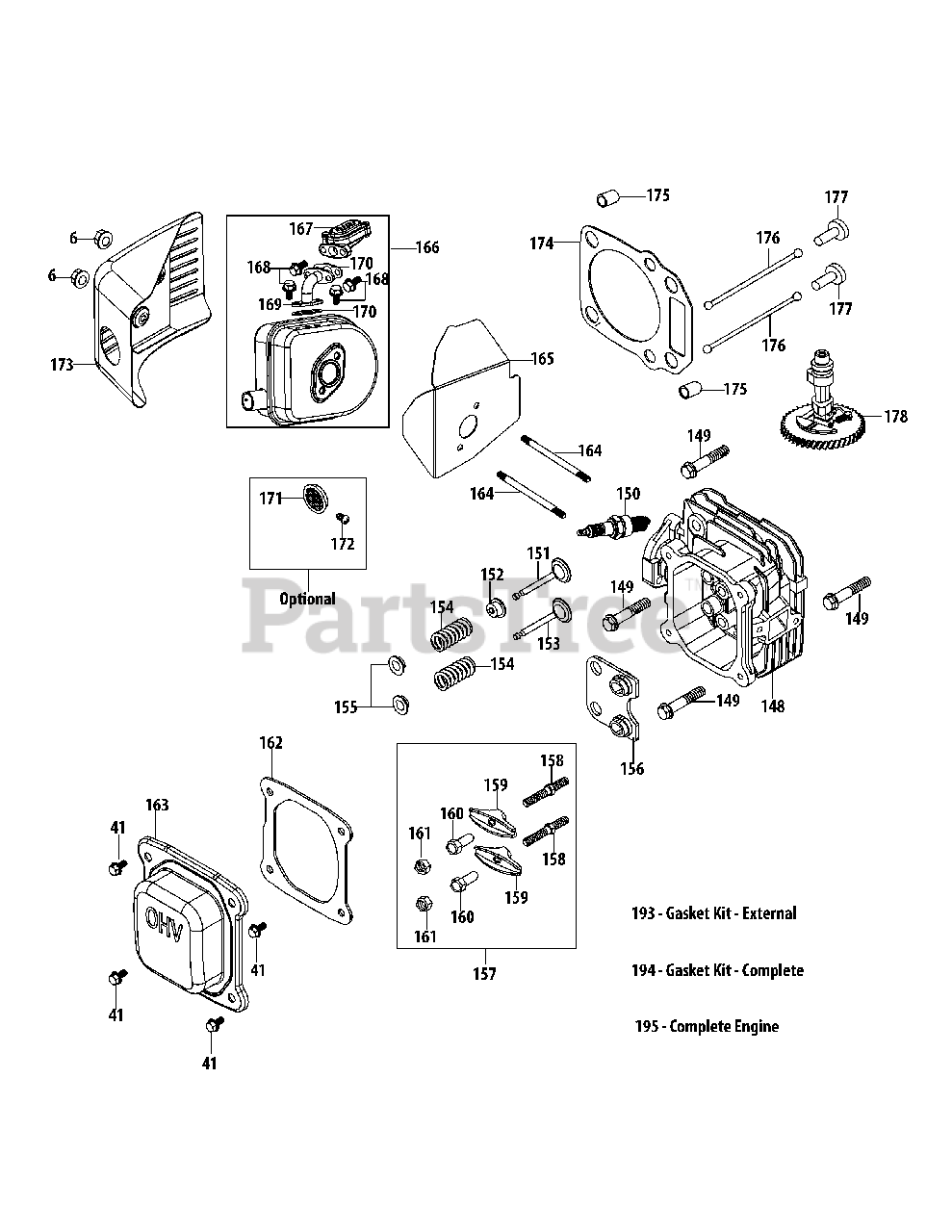

5P70MU Cylinder Head Parts Diagram

  • Title

6

Troy-Bilt 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 11

0

148

Troy-Bilt 951-10413A

Cylinder Head Assembly
(Superseded to 951-10413B)

Note: (Incl.145,146,148,151-156,158-162,165,174)

$187.99

$

Usually ships in 3-6 days

0

149

Troy-Bilt 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

150

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

151

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

152

Troy-Bilt 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

153

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

154

Troy-Bilt 951-12116

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

155

Troy-Bilt 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

156

Troy-Bilt 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

157

Troy-Bilt 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

158

Troy-Bilt 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

159

Troy-Bilt 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

160

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

161

Troy-Bilt 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

162

Troy-Bilt 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

163

Troy-Bilt 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

164

Troy-Bilt 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

164

Troy-Bilt 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, Qty 10

0

165

Troy-Bilt 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

166

Troy-Bilt 751-12740

Muffler Assembly
(Superseded to 951-12740)

$81.99

$

In Stock, only 1 left!

0

167

Troy-Bilt 751-12741

Secondary Air Valve
(Superseded to 951-12741)

$14.99

$

Usually ships in 3-6 days

0

168

Troy-Bilt 710-05434

Bolt M6×12

$3.49

$

Usually ships in 3-6 days

0

169

Troy-Bilt 751-12742

Secondary Air Tube
(Superseded to 951-12742)

$6.99

$

Usually ships in 3-6 days

0

170

Troy-Bilt 751-12743

Secondary Air Valve Gasket
(Superseded to 951-12743)

$5.99

$

Usually ships in 3-6 days

0

171

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

172

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

173

Troy-Bilt 751-12744

Muffler Shield
(Superseded to 951-12744)

$28.99

$

Usually ships in 3-6 days

0

174

Troy-Bilt 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

175

Troy-Bilt 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

176

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

177

Troy-Bilt 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

178

Troy-Bilt 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

193

Troy-Bilt 951-11772

Gasket Kit - External

Note: (Incl.43,90,93,144,146,162,165)

$41.99

$

Usually ships in 3-6 days

0

194

Troy-Bilt 951-11770

Gasket Kit - Complete

Note: (Incl.43,45,76,83,90,93,108,114,146,162,165,174)

$

$

Not available

195

Troy-Bilt 752Z5P70MU

Complete Engine
(Superseded to 952Z5P70MU)

$548.99

$

Usually ships in 3-6 days

0
