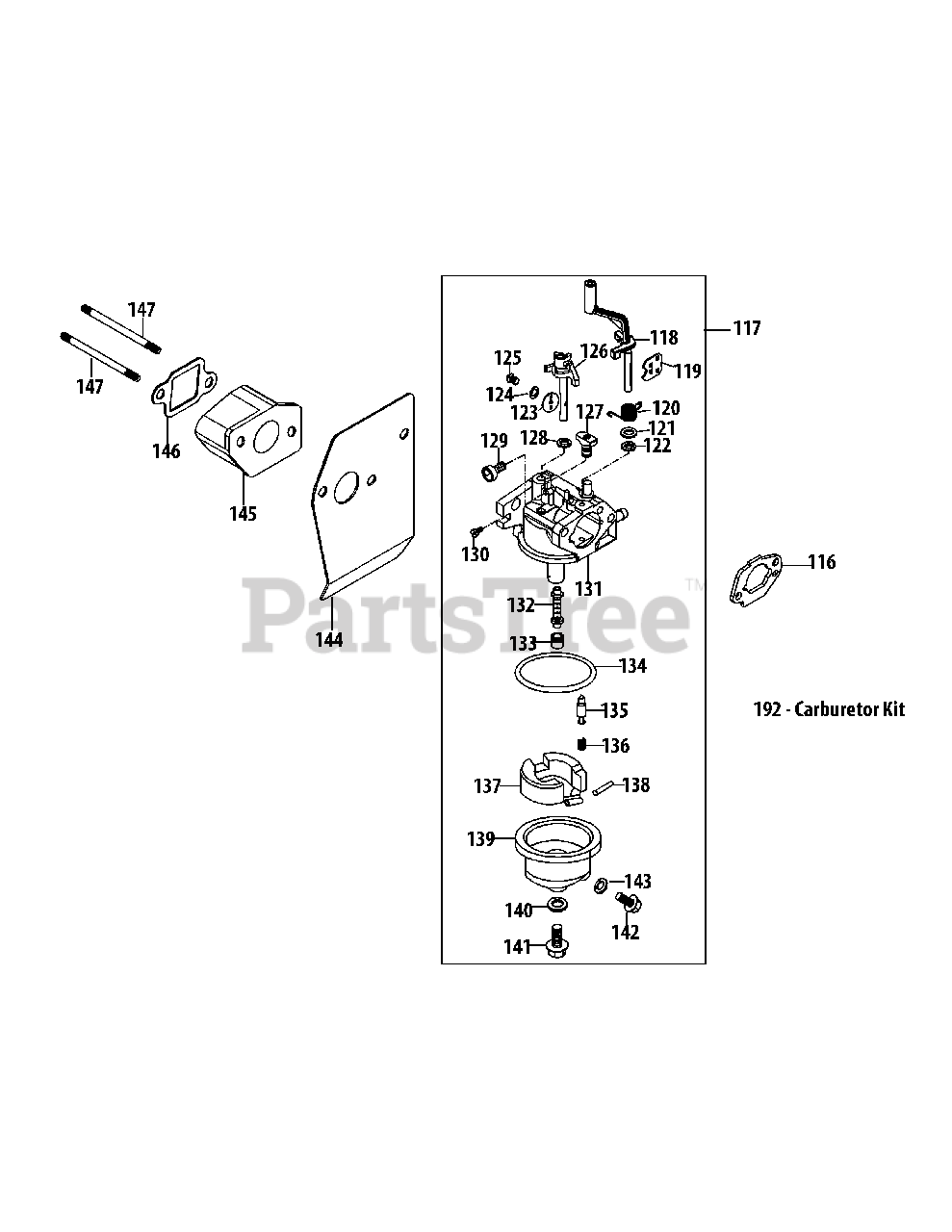

5P70MU Carburetor Parts Diagram

  • Title
116

Troy-Bilt 951-11525

Carburetor Gasket Plate

$5.49

$

Usually ships in 3-6 days

0

117

Troy-Bilt 951-10765

Carburetor Assembly

$97.99

$

In Stock, only 1 left!

0

118

Choke Shaft

$

$

Not available

119

Choke Plate

$

$

Not available

120

Choke Return Spring

$

$

Not available

121

Troy-Bilt 736-04556

Choke Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

122

Choke Shaft Fiber O-Ring

$

$

Not available

123

Throttle Plate

$

$

Not available

124

Throttle Plate Lock Washer

$

$

Not available

125

Screw M3X5 Throttle Plate

$

$

Not available

126

Throttle Shaft

$

$

Not available

127

Idle Jet Assembly

$

$

Not available

128

Throttle Shaft Fiber O-Ring

$

$

Not available

129

Idle Speed Adjusting Screw

$

$

Not available

130

Idle Mixture Screw

$

$

Not available

131

Carburetor Body

$

$

Not available

132

Emulsion Tube

$

$

Not available

133

Main Jet

$

$

Not available

134

Troy-Bilt 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

135

Needle Valve

$

$

Not available

136

Needle Valve Spring

$

$

Not available

137

Float

$

$

Not available

138

Float Pin

$

$

Not available

139

Fuel Bowl

$

$

Not available

140

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

141

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

142

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

143

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

144

Troy-Bilt 951-11766

Carburetor Gasket

$5.99

$

In Stock, only 1 left!

0

145

Troy-Bilt 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

146

Troy-Bilt 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

147

Troy-Bilt 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

192

Troy-Bilt 951-11773

Carburetor Kit - Major
(Superseded to 951-14252)

Note: (Incl.118,129,132-138,140,143)

$58.99

$

Usually ships in 3-6 days

0
