5P70MU - Cub Cadet Engine 5P70MU Crankcase Parts Diagram

Engine

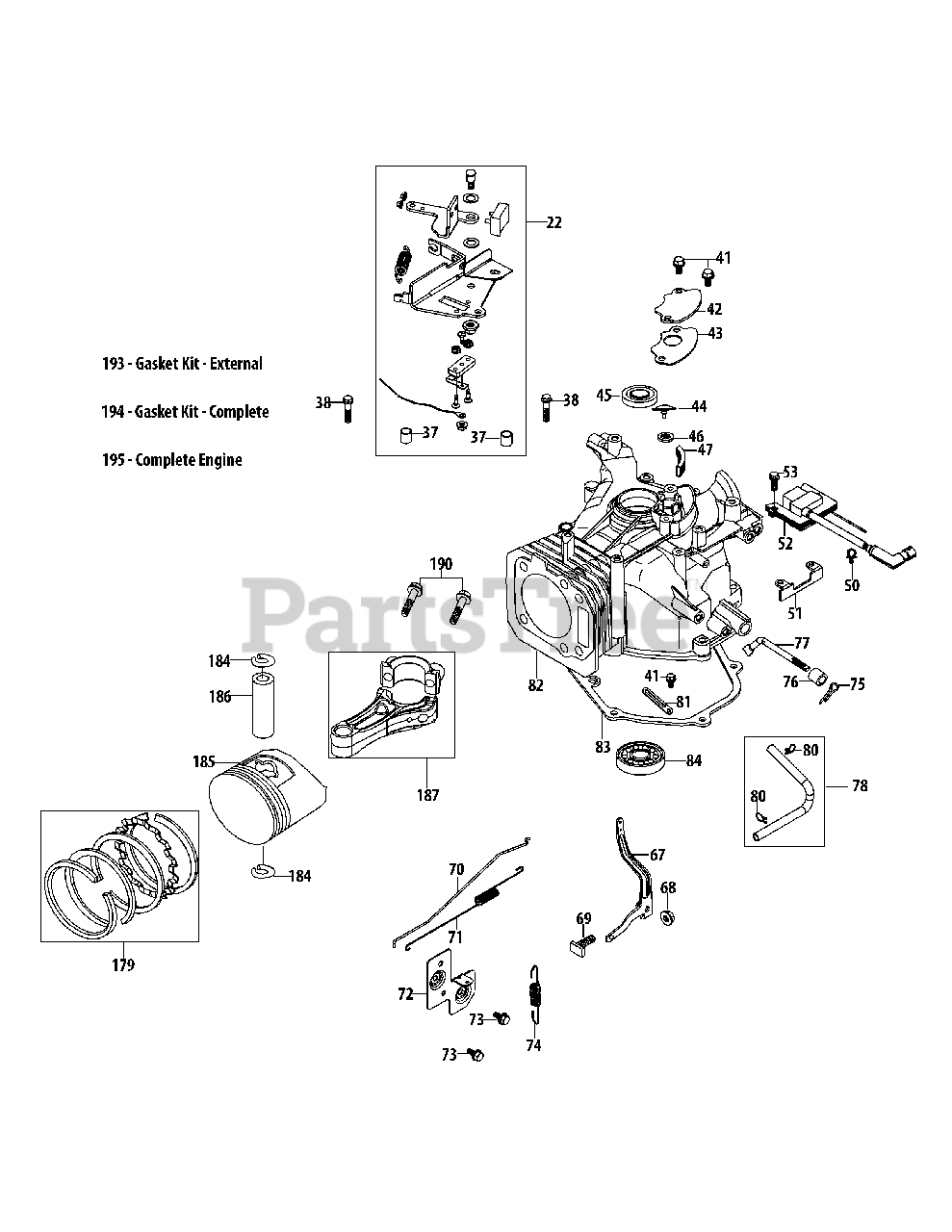

5P70MU Crankcase Parts Diagram

  • Title

22

Cub Cadet 951-10321A

Stop Switch & Brake Assy

$39.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-05384

Brake Spacer

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04980

Bolt M6X35

$3.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

42

Cub Cadet 951-12684

Breather Cover Plate

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

$5.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-12685

Breather Valve

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet 951-11545

Upper Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

46

Cub Cadet 951-12686

Breather Valve Base

$5.99

$

In Stock, only 1 left!

0

47

Cub Cadet 951-11762

Breather Screen

$

$

Not available

50

Cub Cadet 951-11618

Ignition Wire Clip

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-11619

Ignition Coil Bracket

$3.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-10366

Ignition Coil Assembly

$104.99

$

In Stock, only 1 left!

0

53

Cub Cadet 710-04979

Bolt M6X18

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11238

Governor Arm

$10.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 712-04212

Governor Arm Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

69

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11259

Throttle Linkage

$7.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

72

Cub Cadet 951-11620

Component Bracket

$13.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 710-04915

Bolt M6X12

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 951-11273

Governor Spring

$6.99

$

In Stock, only 1 left!

0

75

Cub Cadet 714-04074

Governor Arm Shaft Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

77

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-11260

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-12724

Short Block Assembly

Note: (Incl.41-47,57,75-77,82-85,87,90,92-96,106-108,116,145,146,162,165,174,175,177-179,184-187,190)

$348.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11763

Crankcase Cover Gasket

$13.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

179

Cub Cadet 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

184

Cub Cadet 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

185

Cub Cadet 951-11634

Piston

$

$

Not available

186

Cub Cadet 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

187

Cub Cadet 951-11768

Connecting Rod Assembly

$

$

Not available

190

Cub Cadet 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

193

Cub Cadet 951-11772

Gasket Kit - External

Note: (Incl.43,90,93,144,146,162,165)

$41.99

$

Usually ships in 3-6 days

0

194

Cub Cadet 951-11770

Gasket Kit - Complete

Note: (Incl.43,45,76,83,90,93,108,114,146,162,165,174)

$

$

Not available

195

Cub Cadet 752Z5P70MU

Complete Engine
(Superseded to 952Z5P70MU)

$548.99

$

Usually ships in 3-6 days

0
