5P70ML - Troy-Bilt Engine 5P70ML Carburetor Assembly Parts Diagram

Engine

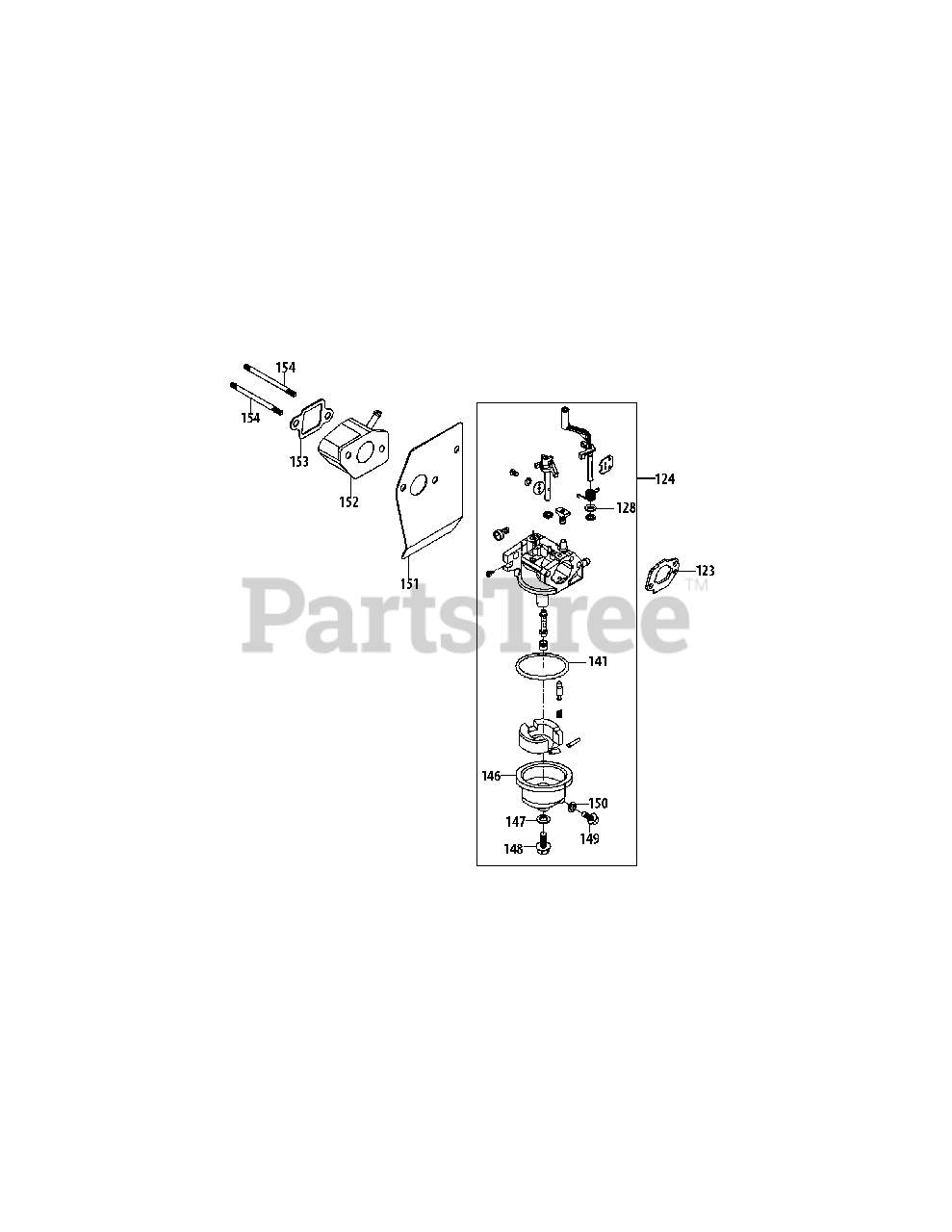

5P70ML Carburetor Assembly Parts Diagram

  • Title
123

Troy-Bilt 951-11525

Carburetor Gasket Plate

$5.49

$

Usually ships in 3-6 days

0

124

Troy-Bilt 951-12444

Carburetor Assembly

$102.99

$

Usually ships in 3-6 days

0

128

Troy-Bilt 736-04556

Choke Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

141

Troy-Bilt 951-11597

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

147

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

148

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

149

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

150

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

151

Troy-Bilt 951-11628

Carburetor Gasket

$5.49

$

Usually ships in 3-6 days

0

152

Troy-Bilt 951-12455

Carburetor Insulator

$

$

Not available

153

Troy-Bilt 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

154

Troy-Bilt 710-04981

Stud M6×113

$3.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12443

Carburetor Kit - Major

Note: (Incl.129,135,136,190-145)

$58.99

$

Usually ships in 3-6 days

0
