5P70M0C - Troy-Bilt Engine 5P70M0C Carburetor Parts Diagram

Engine

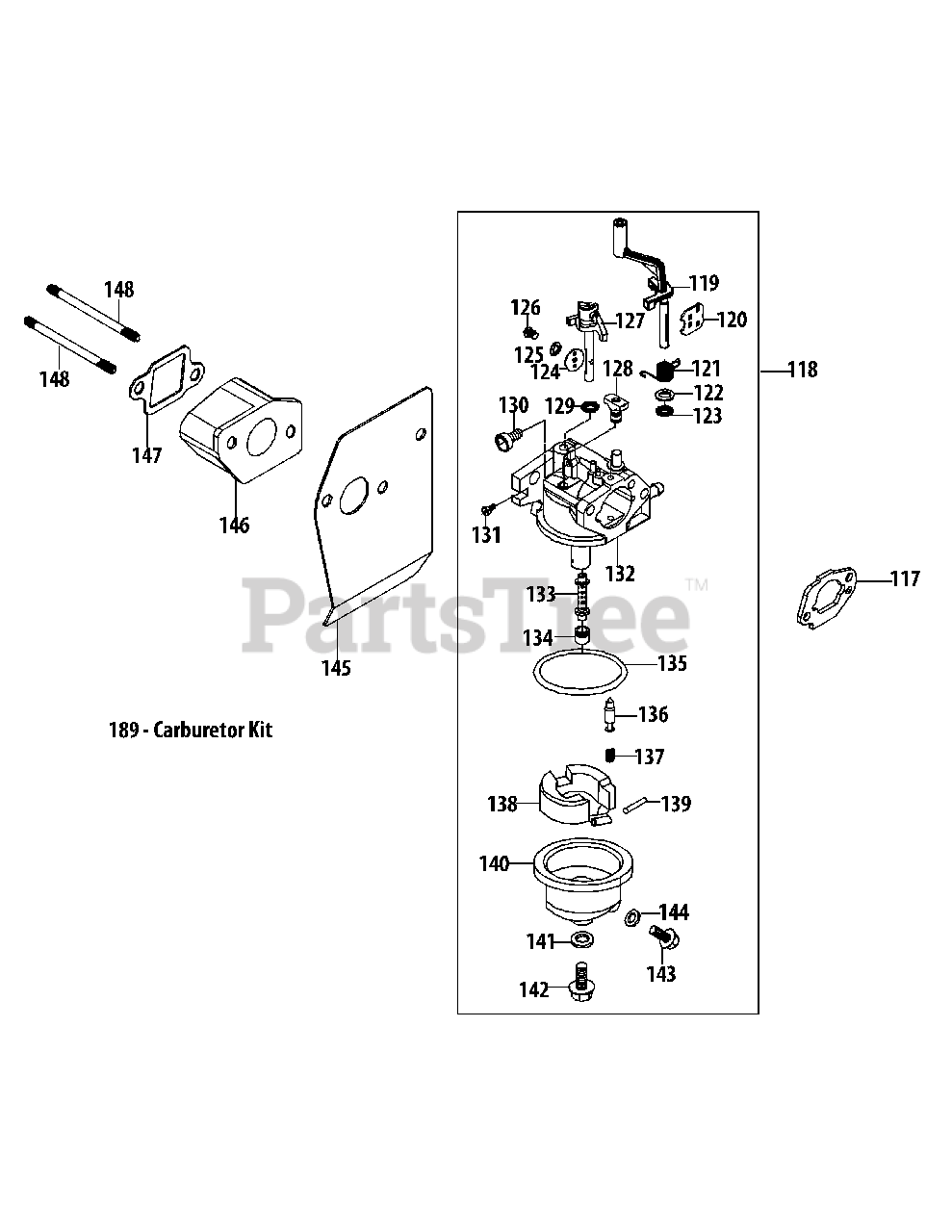

5P70M0C Carburetor Parts Diagram

  • Title
117

Troy-Bilt 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

118

Troy-Bilt 951-10765

Carburetor Assembly

$97.99

$

In Stock, only 1 left!

0

119

Choke Shaft

$

$

Not available

120

Choke Plate

$

$

Not available

121

Choke Return Spring

$

$

Not available

122

Troy-Bilt 736-04556

Choke Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

123

Choke Shaft Fiber O-Ring

$

$

Not available

124

Throttle Plate

$

$

Not available

125

Throttle Plate Lock Washer

$

$

Not available

126

Screw M3X5 Throttle Plate

$

$

Not available

127

Throttle Shaft

$

$

Not available

128

Idle Jet Assembly

$

$

Not available

129

Throttle Shaft Fiber O-Ring

$

$

Not available

130

Idle Speed Adjusting Screw

$

$

Not available

131

Idle Mixture Screw

$

$

Not available

132

Carburetor Body

$

$

Not available

133

Emulsion Tube

$

$

Not available

134

Main Jet

$

$

Not available

135

Troy-Bilt 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

136

Needle Valve

$

$

Not available

137

Needle Valve Spring

$

$

Not available

138

Float

$

$

Not available

139

Float Pin

$

$

Not available

140

Fuel Bowl

$

$

Not available

141

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

142

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

143

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

144

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

145

Troy-Bilt 951-11766

Carburetor Gasket

$5.99

$

In Stock, only 1 left!

0

146

Troy-Bilt 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

147

Troy-Bilt 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

148

Troy-Bilt 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

189

Troy-Bilt 951-11773

Carburetor Kit - Major
(Superseded to 951-14252)

Note: (Incl.119,130,133-139,141,144)

$58.99

$

Usually ships in 3-6 days

0
