5P70M0B - Cub Cadet Engine 5P70M0B Cylinder Head Parts Diagram

Engine

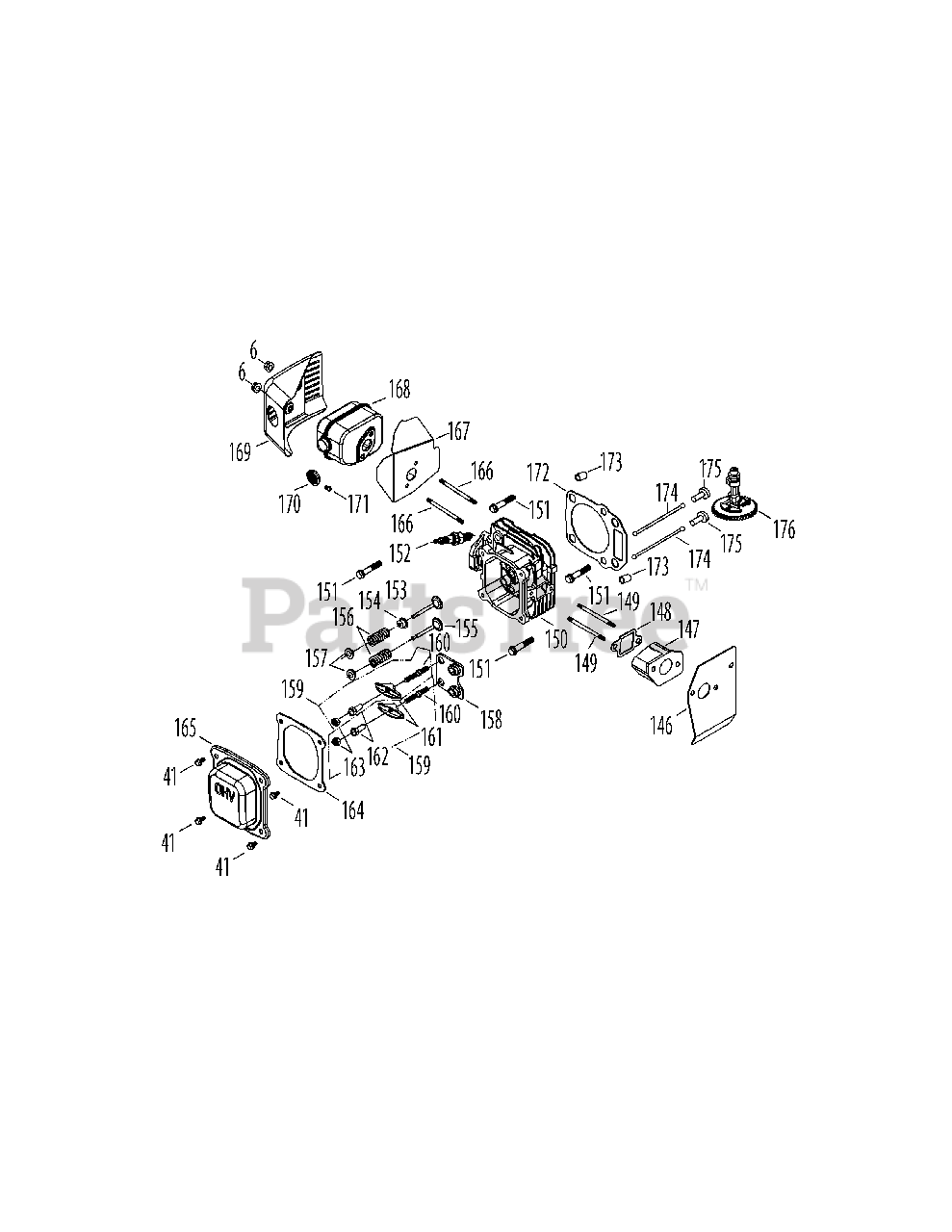

5P70M0B Cylinder Head Parts Diagram

  • Title

6

Cub Cadet 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

41

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

Usually ships in 3-6 days

0

146

Cub Cadet 951-11766

Carburetor Gasket

$5.99

$

In Stock, only 1 left!

0

147

Cub Cadet 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

148

Cub Cadet 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

149

Cub Cadet 710-04981

Carb Stud M6x113

$3.99

$

Usually ships in 3-6 days

0

150

Cub Cadet N/A

Cylinder Head

$

$

Currently unavailable

151

Cub Cadet 710-04982

Head Bolt M8×54

$3.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-10292

Spark Plug/F6rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

153

Cub Cadet 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

154

Cub Cadet N/A

Valve Seal

$

$

Currently unavailable

155

Cub Cadet 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

156

Cub Cadet N/A

Valve Spring

$

$

Currently unavailable

157

Cub Cadet N/A

Valve Spring Retainers

$

$

Currently unavailable

158

Cub Cadet 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

159

Cub Cadet 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

160

Cub Cadet 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

161

Cub Cadet N/A

Rocker Arm

$

$

Currently unavailable

162

Cub Cadet 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

163

Cub Cadet 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

164

Cub Cadet 951-11551

Valve Cover Gasket

$10.99

$

In Stock, only 4 left!

0

165

Cub Cadet 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

166

Cub Cadet 710-05094

Muffler Stud M6x95

$4.49

$

In Stock, only 2 left!

0

166

Cub Cadet 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, only 2 left!

0

167

Cub Cadet 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

168

Cub Cadet 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

169

Cub Cadet 951-10411

Muffler Shield

$31.99

$

Usually ships in 3-6 days

0

170

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

171

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

173

Cub Cadet 715-04108

Cylinder Head Dowel 10×16

$4.49

$

In Stock, only 1 left!

0

174

Cub Cadet 951-10344

Push Rod Kit

$18.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10413A

Cylinder Head Assembly
(Superseded to 951-10413B)

Note: Now shown (Incl Ref No. 147,148,150,153-158,160-164,167,172)

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10414B

Short Block Assembly
(Superseded to 951-12724)

Note: Not shown (Incl Ref No. 41-47,57,76-78,83-86,88,91,93-97,107-109,118,147,148,164,167,172,173,175-177,182-185,188)

$348.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11770

Gasket Kit - Complete

Note: Not shown (Incl Ref No. 43,45,77,84,91,94,109,146,148,164,167,182)

$

$

Not available

Cub Cadet 951-11772

Gasket Kit - External

Note: Not shown (Incl Ref No. 43,91,94,146,148,164,167)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z5P70M0B

Engine Complete
(Superseded to 952Z5P70MU)

Note: Not shown

$548.99

$

Usually ships in 3-6 days

0
