5P70M0A - Cub Cadet Engine Engine Assembly 5P70M0A Parts Diagram

Engine

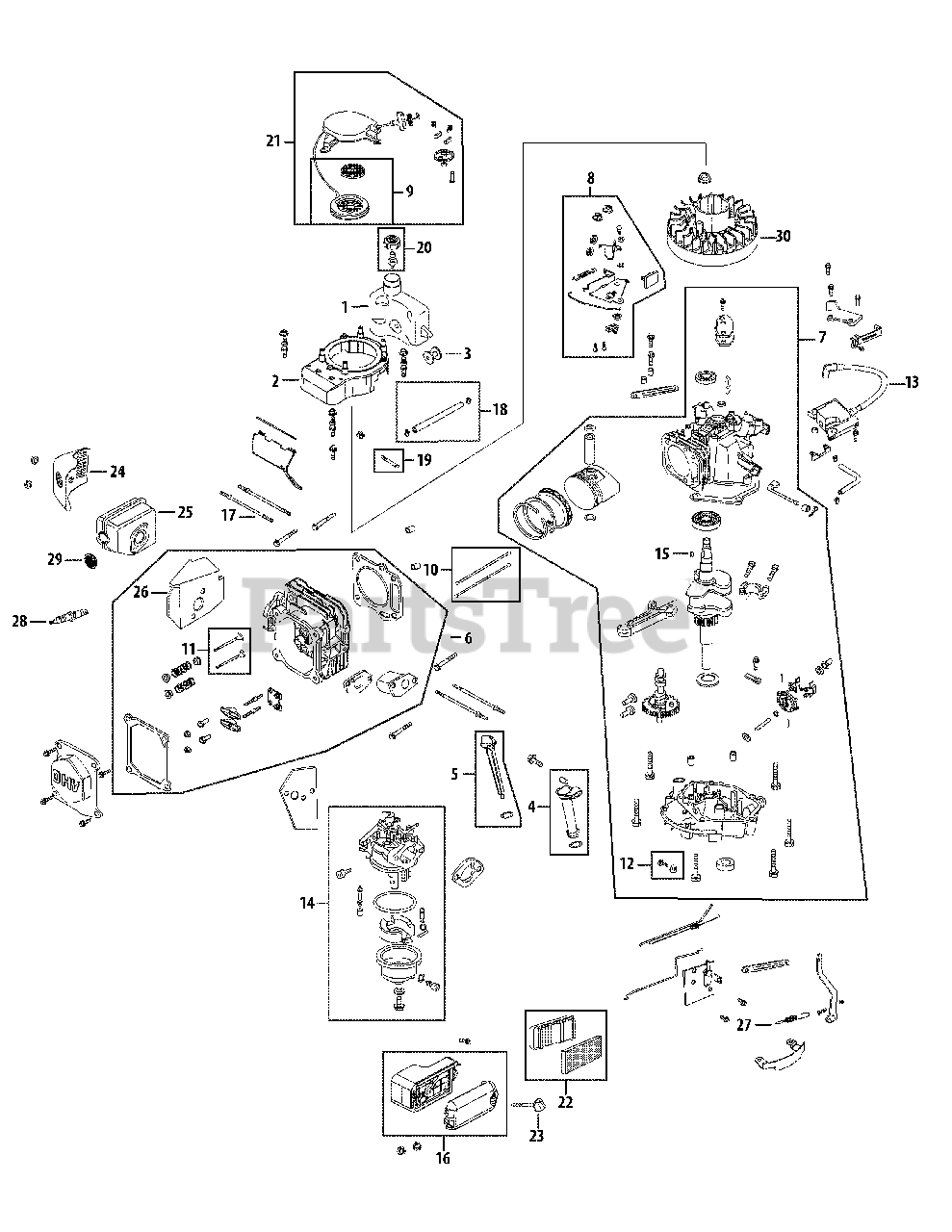

Engine Assembly 5P70M0A Parts Diagram

  • Title

1

Cub Cadet 951-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-10875

Flywheel Shroud

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-10335

Rubber Fuel Tank Mounting Washer

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 951-10334

Oil Filler Tube Assembly

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-10333

Dipstick Assembly

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-10413A

Cylinder Head Assembly
(Superseded to 951-10413B)

$187.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-10414A

Short Block Assembly
(Superseded to 951-12724)

$348.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-10321

Stop Switch and Brake Assembly
(Superseded to 951-10321A)

$39.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-10319

Recoil Spring and Pulley Assembly

$47.99

$

In Stock, only 3 left!

0

10

Cub Cadet 951-10344

Push Rod Kit

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-10370

Oil Drain Plug and Washer Assembly

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-10366

Ignition Coil

$104.99

$

In Stock, only 1 left!

0

14

Cub Cadet 951-10765

Carburetor Assembly

$97.99

$

In Stock, only 1 left!

0

15

Cub Cadet 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-10412A

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$39.99

$

In Stock, only 4 left!

0

17

Cub Cadet 951-10342

Muffler Stud Assembly

$9.99

$

In Stock, only 2 left!

0

18

Cub Cadet 951-10364

Fuel Line Kit - Hoses, Clamps & Filter

$28.99

$

In Stock, only 2 left!

0

19

Cub Cadet 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 951-10300

Fuel Cap Assembly

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet 951-10299A

Recoil Starter Assembly

$69.99

$

In Stock, Qty 7

0

22

Cub Cadet 951-10298

Air Cleaner Kit

$17.99

$

In Stock, Qty 20+

0

23

Cub Cadet 951-10297

Air Cleaner Thumb Screw

$5.99

$

In Stock, only 2 left!

0

24

Cub Cadet 951-10411

Muffler Guard

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 951-10403

Muffler

$82.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-10402

Muffler Gasket / Heat Shield

$19.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-11273

Governor Return Spring (spring end changed)

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10326

Carburetor Repair Kit - Major
(Superseded to 951-12425A)

Note: Not Shown

$59.99

$

In Stock, only 1 left!

0

Cub Cadet 951-11046

Flywheel

Note: Not Shown

$

$

Not available

Cub Cadet 951-10871

Gasket Kit - Complete

Note: Not Shown

$64.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10872

Gasket Kit - External

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z5P70M0A

Engine - Complete
(Superseded to 952Z5P70MU)

Note: Not Shown

$548.99

$

Usually ships in 3-6 days

0

NOTE: Illustrated parts without a numeric call-out are not serviceable components.

$

$
