5P65MU - Troy-Bilt Engine 5P65MU Crankshaft & Crankcase Cover Parts Diagram

Engine

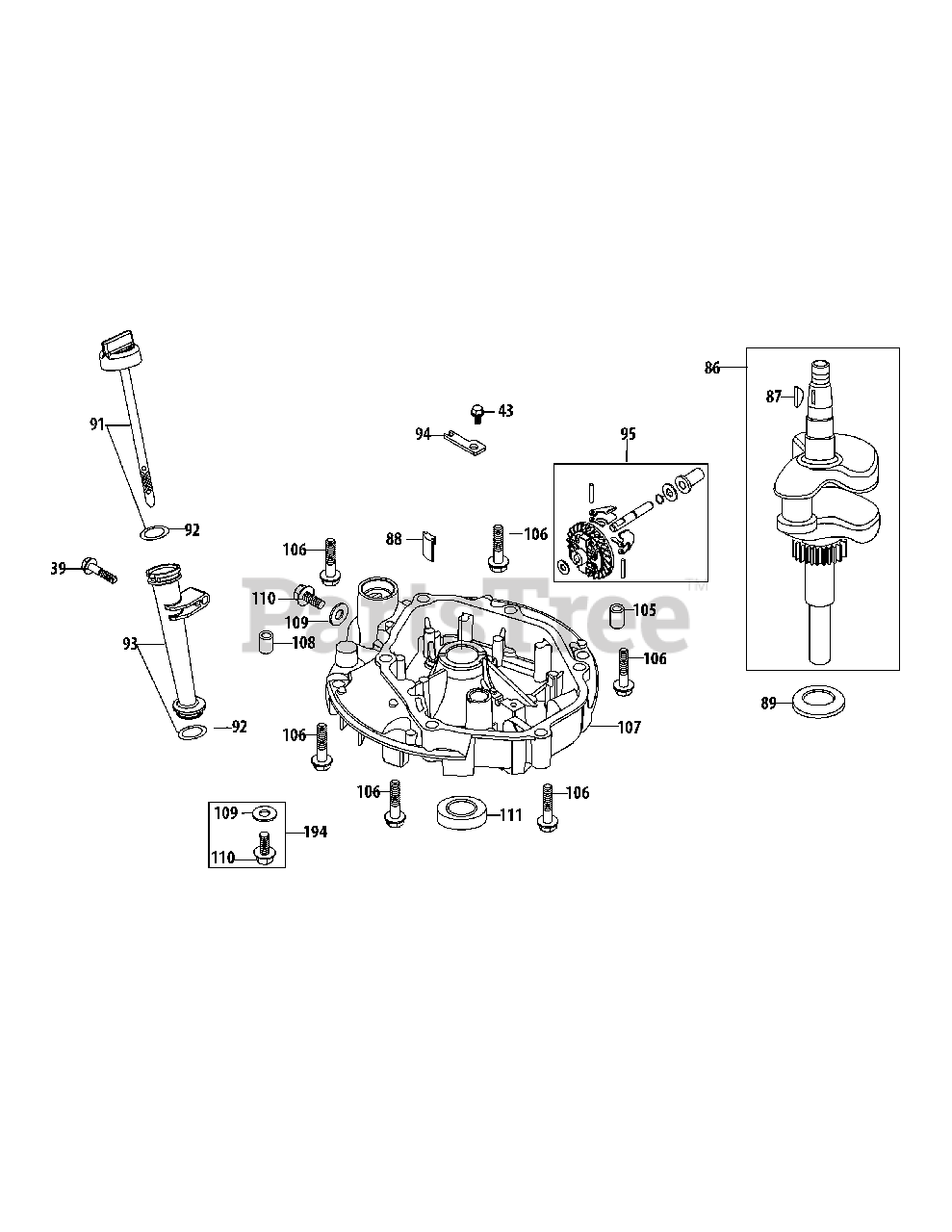

5P65MU Crankshaft & Crankcase Cover Parts Diagram

  • Title

39

Troy-Bilt 710-04980

Bolt M6X35

$3.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 710-04916

Bolt M6X14

$4.49

$

In Stock, Qty 12

0

86

Troy-Bilt 951-11591

Crankshaft Assembly

$234.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

88

Troy-Bilt 951-11733

Oil Return Seal

$4.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-12696

Dipstick

$15.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 951-11547

Dipstick / Oil Fill Tube O-Ring

$4.49

$

In Stock, only 1 left!

0

93

Troy-Bilt 951-11765A

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

94

Troy-Bilt 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

95

Troy-Bilt 951-11549

Governor Gear/Shaft Assembly

$12.99

$

Usually ships in 3-6 days

0

105

Troy-Bilt 715-04092

Crankcase Cover Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

106

Troy-Bilt 710-04920

Bolt M6X28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 951-11793

Crankcase Cover

$

$

Not available

108

Troy-Bilt 715-04089

Crankcase Cover Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

109

Troy-Bilt 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

110

Troy-Bilt 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 12

0

111

Troy-Bilt 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

194

Troy-Bilt 951-10370

Oil Drain Plug And Washer Ass'y

$9.49

$

Usually ships in 3-6 days

0
