5P65M0C - Cub Cadet Engine 5P65M0C Cylinder Head Parts Diagram

Engine

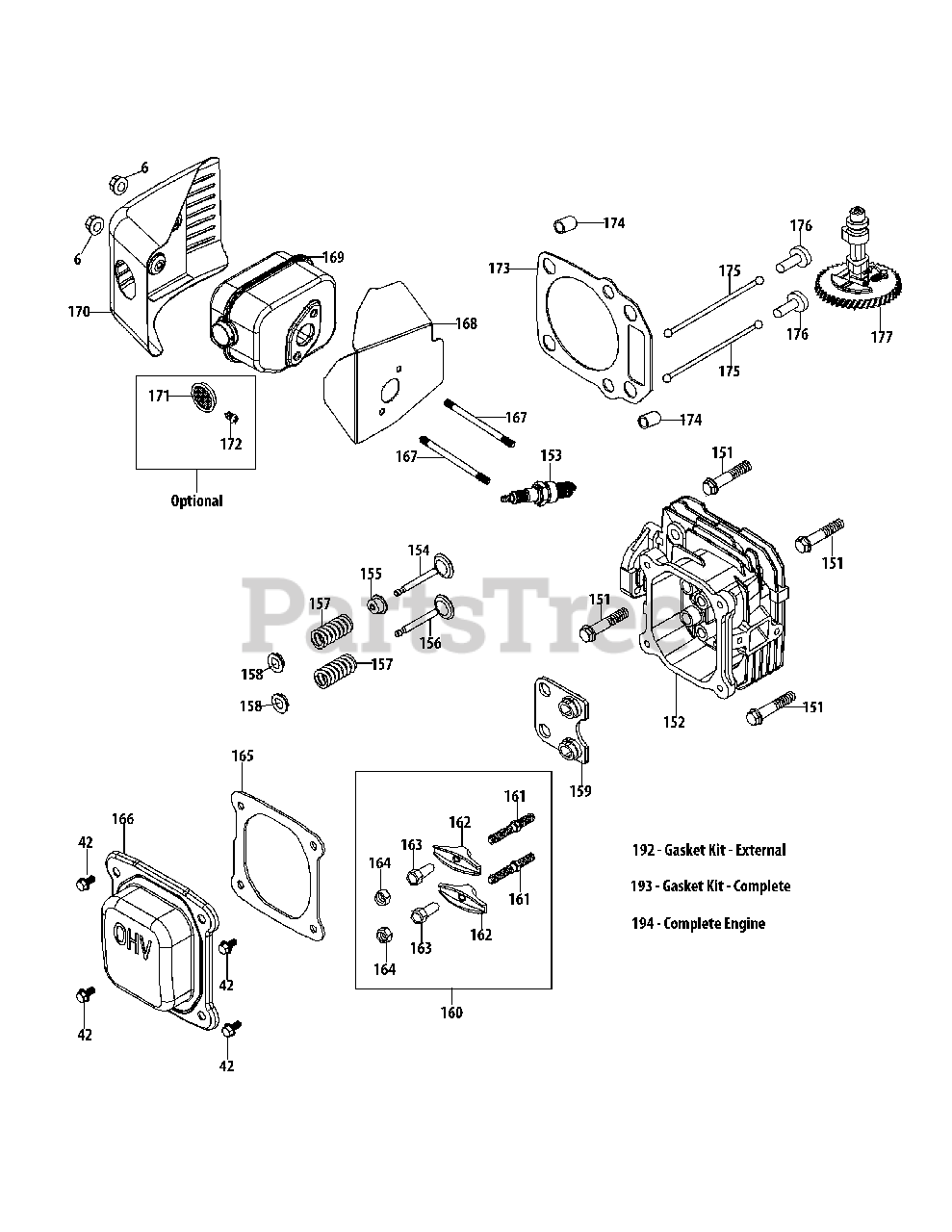

5P65M0C Cylinder Head Parts Diagram

  • Title

6

Cub Cadet 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

42

Cub Cadet 710-04916

Bolt M6X14

$4.49

$

In Stock, Qty 11

0

151

Cub Cadet 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-10846A

Cylinder Head Svc Kit

Note: (Incl.151,155,165,173)

$19.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-11746

Cylinder Head Assembly

Note: (Incl.148,149,152,154-159,161-165,168,173)

$157.99

$

Usually ships in 3-6 days

0

153

Cub Cadet 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

154

Cub Cadet 951-10313

Intake Valve

$65.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

156

Cub Cadet 951-10313

Exhaust Valve

$65.99

$

In Stock, only 1 left!

0

157

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

158

Cub Cadet 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

159

Cub Cadet 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

160

Cub Cadet 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

162

Cub Cadet 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

163

Cub Cadet 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

164

Cub Cadet 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

165

Cub Cadet 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

166

Cub Cadet 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

167

Cub Cadet 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, Qty 10

0

168

Cub Cadet 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

169

Cub Cadet 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

170

Cub Cadet 951-11791

Muffler Shield

$

$

Not available

171

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

173

Cub Cadet 951-11555

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

174

Cub Cadet 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

175

Cub Cadet 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

192

Cub Cadet 951-11788

Gasket Kit - External

Note: (Incl.44,92,109,147-149,165,168)

$

$

Not available

193

Cub Cadet 951-11787

Gasket Kit - Complete

Note: (Incl.44,45,69,84,92,109,111,147-149,165,168,173)

$60.99

$

Usually ships in 3-6 days

0

194

Cub Cadet 952Z5P65M0C

Complete Engine
(Superseded to 952Z5P65MU)

$

$

Not available
