5P65M0B - Troy-Bilt Engine 5P65M0B Fuel Tank Parts Diagram

Engine

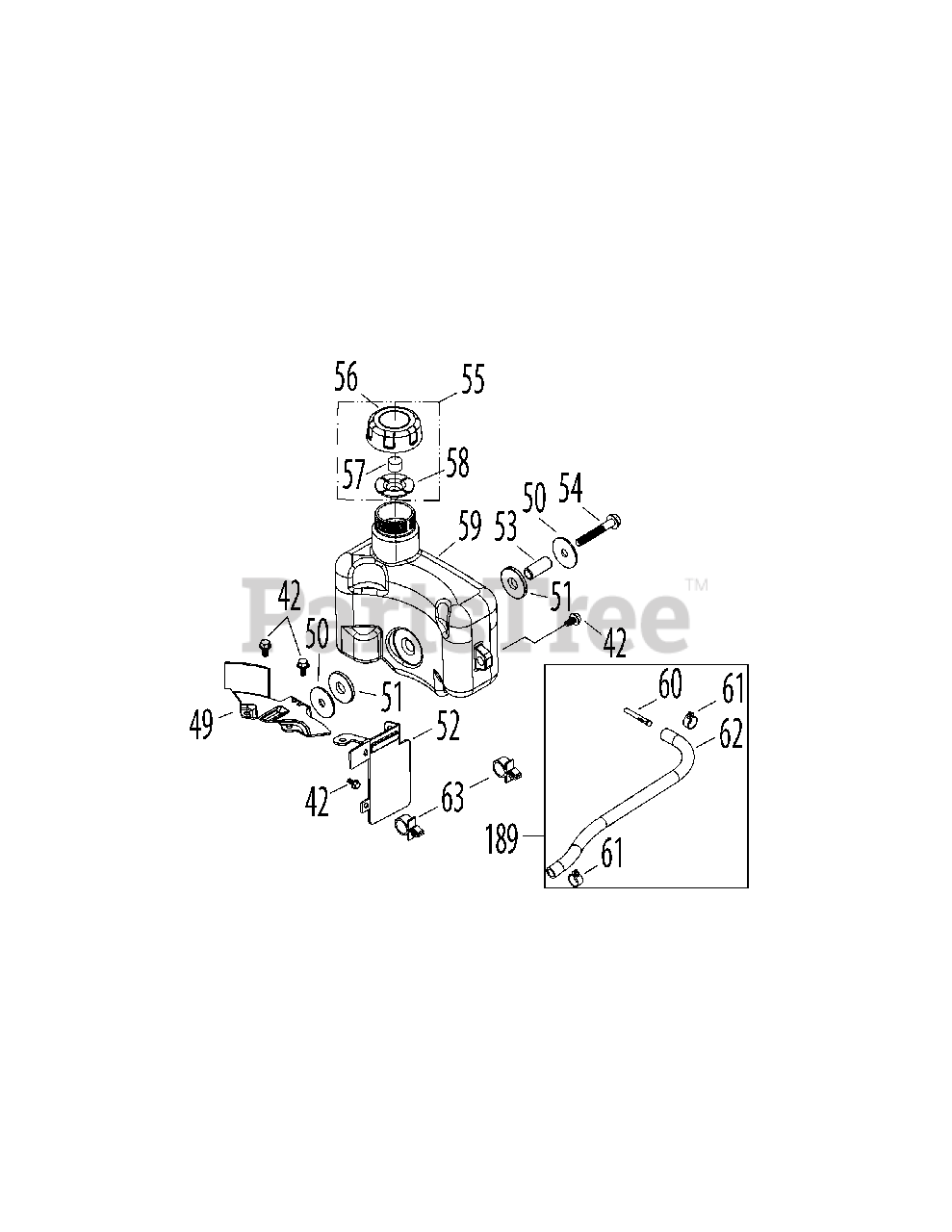

5P65M0B Fuel Tank Parts Diagram

  • Title

42

Troy-Bilt 710-04916

Bolt M6×14

$4.49

$

In Stock, Qty 12

0

49

Troy-Bilt 951-11542

Fuel Tank Bottom Bracket

$9.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 736-04456

Fuel Tank Washer

$

$

Not available

51

Troy-Bilt 951-10335

Rubber Bushing

$5.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 951-11748

Tank/Label Bracket

$7.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 750-05322

Fuel Tank Bushing

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-04922

Tank Bolt M8×50

$4.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-10300

Fuel Cap Assembly

Note: (Incl Ref No. 56-58)

$11.99

$

In Stock, Qty 10

0

56

Fuel Cap

$

$

Not available

57

Foam Insert

$

$

Not available

58

Vent Gasket

$

$

Not available

59

Troy-Bilt 951-10337

Fuel Tank Assembly

$60.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

62

Fuel Hose

$

$

Not available

63

Troy-Bilt 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

189

Troy-Bilt 951-10363

Fuel Line Kit

Note: (Incl Ref No. 60-62)

$28.99

$

In Stock, only 2 left!

0
