5C70M0 - Cub Cadet 196cc Engine 5C70M0 General Assembly Parts Diagram

196cc Engine

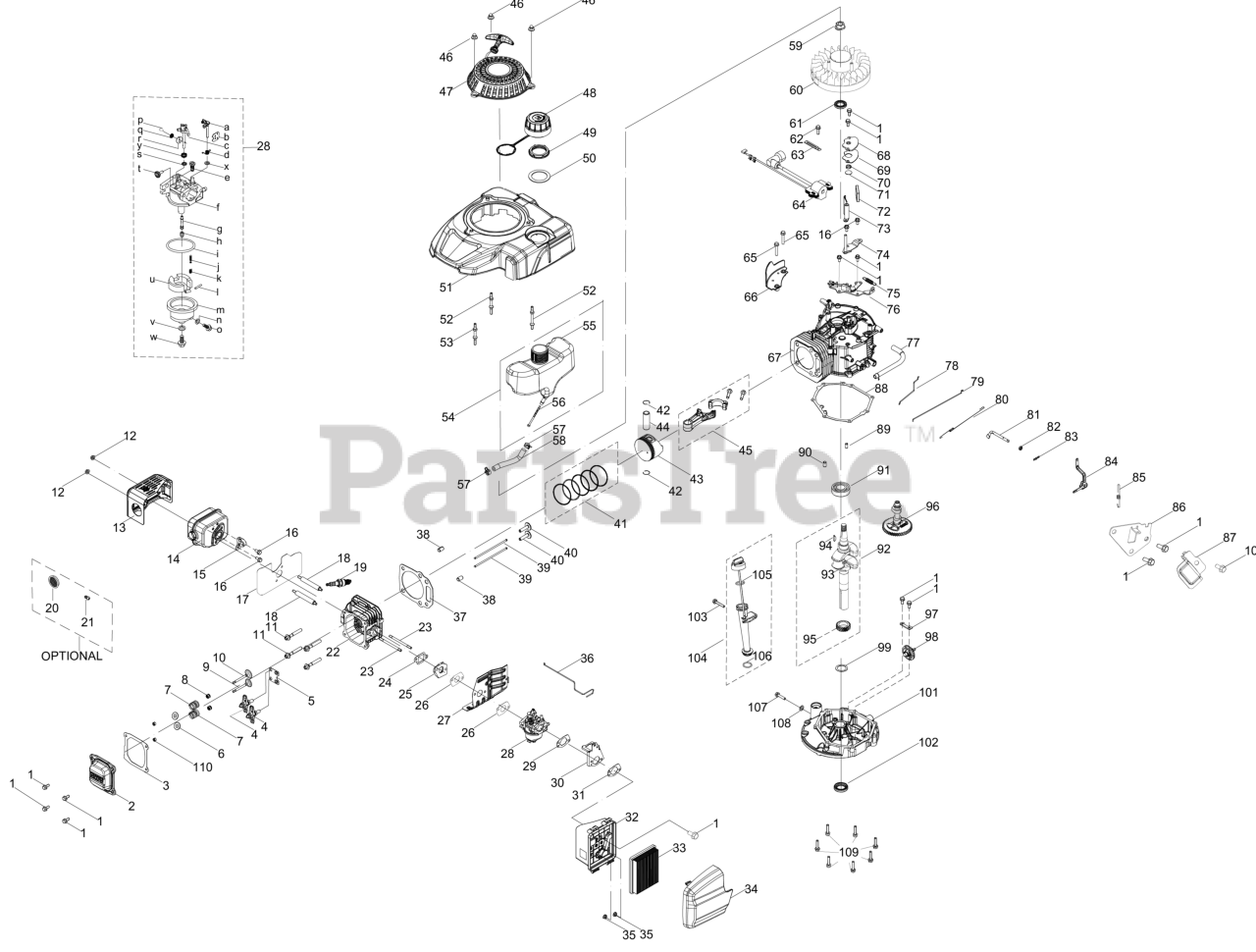

5C70M0 General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 951-14609

VALVE COVER
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P18586A

VALVE COVER GASKET

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-10627

CARBURETOR KIT (MAJOR)
(Superseded to 951-10627)

$

$

Not available

6

Cub Cadet 751P16831A

VALVE SPRING SEAT

$2.49

$

Usually ships in 3-6 days

0

7

Valve Spring

$

$

Not available

8

Cub Cadet 921-04705A

INTAKE VALVE SEAL

$5.99

$

Usually ships in 3-6 days

0

9

Exhaust Valve

$

$

Not available

10

Intake Vavle

$

$

Not available

11

Cub Cadet 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05071

Nut, M6

$1.99

$

Usually ships in 0 days

0

13

Cub Cadet 951-15566A

MUFFLER SHIELD

$25.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-14429A

MUFFLER ASSEMBLY

$63.99

$

In Stock, only 3 left!

0

15

Cub Cadet 951-14428A

CHOKE TEMP CONTROL THERMOSTAT

$41.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 751P18909A

MUFFLER GASKET

$6.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 951-10351A

SPARK ARRESTOR

$55.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

22

Cylinder Head

$

$

Not available

23

Cub Cadet 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751P18910A

MUFFLER GASKET

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 951-15671A

CARBURETOR INSULATOR

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 721P05941A

CARBURETOR GASKET

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 751P18913A

HEAT SHIELD

$5.99

$

Usually ships in 3-6 days

0

28

Carburetor

$

$

Not available

29

Cub Cadet 721P05942A

AIR FILTER BRACKET GASKET

$5.99

$

In Stock, Qty 6

0

30

Cub Cadet 908-05265

AIR FILTER BRACKET

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-14419A

AIR FILTER BASE GASKET

$8.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 931-13118A

AIR FILTER HOUSING BASE

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 951-15245

AIR FILTER

$14.99

$

In Stock, Qty 20+

0

34

Cub Cadet 931-13119A

AIR FILTER COVER

$11.99

$

In Stock, only 1 left!

0

35

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

36

Choke Lever

$

$

Not available

37

Cub Cadet 921-04257

CYLINDER HEAD GASKET

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

39

Cub Cadet 951-16026

PUSH ROD

$7.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14432

TAPPET
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

41

Piston Ring Set

$

$

Not available

42

Cub Cadet 951-11632A

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 751P19648

PISTON

$11.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751P11633A

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-05539

CONNECTING ROD ASSEMBLY

$27.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

47

Cub Cadet 951-05360A

RECOIL STARTER ASSEMBLY

$57.99

$

In Stock, only 1 left!

0

48

Cub Cadet 951-15255A

FUEL CAP W/TETHER

$26.99

$

In Stock, only 1 left!

0

49

Cub Cadet 931-10290

FUEL TANK NUT

$6.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

52

Cub Cadet 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

In Stock, only 1 left!

0

53

Cub Cadet 951-14398

STARTER/SHROUD FRONT STUD

$9.99

$

In Stock, only 1 left!

0

54

Fuel Tank Assembly

$

$

Not available

55

Cub Cadet 931-12771A

FUEL TANK

$49.99

$

In Stock, only 3 left!

0

56

Cub Cadet 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

57

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 735-05202

FUEL HOSE
(Superseded to 935-05202)

$4.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 751P20489

FLYWHEEL

$37.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 951-11596

CRANKSHAFT SEAL

$6.49

$

In Stock, only 1 left!

0

62

Cub Cadet 710-05192

SCREW M6-1 x 20 CL5.8

$5.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-11622A

FLEXIBLE CLAMP

$3.99

$

Usually ships in 3-6 days

0

64

Ignition Module

$

$

Not available

65

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-14597A

ENGINE BRAKE COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

67

Crankcase

$

$

Not available

68

Cub Cadet 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-14405

BREATHER GASKET

$10.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

71

Cub Cadet 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

72

Cub Cadet 951-11730

BREATHER SCREEN

$5.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11529A

AIR VANE

$7.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 751P18911

AIR VANE BRACKET

$5.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 932-05566A

ENGINE BRAKE SPRING

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-05530

ENGINE BRAKE ASSEMBLY

$35.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-15678

BREATHER HOSE ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-15679A

CHOKE LINKAGE

$5.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-15677A

THROTTLE LINKAGE

$5.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-11258A

THROTTLE SPRING

$4.49

$

In Stock, Qty 5

0

81

Cub Cadet 751P22596

GOVERNOR ARM SHAFT

$2.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

84

Cub Cadet 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

85

Cub Cadet 751P19010A

GOVERNOR SPRING

$2.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 908-05254

COMPONENT BRACKET

$6.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 908-05255

GOVERNOR SHIELD

$4.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 751P18908A

CRANKCASE COVER GASKET

$7.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-15684

CRANKSHAFT ASSEMBLY

$97.99

$

Usually ships in 3-6 days

0

93

Crankshaft

$

$

Not available

94

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 10

0

95

Cub Cadet 751P22699

TIMING GEAR

$6.49

$

Usually ships in 3-6 days

0

96

Camshaft

$

$

Not available

97

Cub Cadet 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

98

Cub Cadet 651P08721

GOVERNOR GEAR

$3.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

101

Cub Cadet 951-15685

CRANKCASE COVER

$88.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-15686A

LOWER CRANKSHAFT OIL SEAL

$9.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

104

Dipstick

$

$

Not available

105

Cub Cadet 921-04795A

O-RING

$3.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 921-04697

O-RING

$3.49

$

Usually ships in 3-6 days

0

107

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 13

0

108

Cub Cadet 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 2 left!

0

109

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

110

Cub Cadet 751P16830A

VALVE CLIP

$1.49

$

Usually ships in 3-6 days

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Choke Spring

$

$

Not available

e

Idle Jet

$

$

Not available

f

Carburetor Body

$

$

Not available

g

Nozzle Tube

$

$

Not available

h

Main Jet

$

$

Not available

i

Cub Cadet 721-04710A

FLOAT BOWL O-RING

$2.49

$

In Stock, Qty 10

0

j

Cub Cadet 793P00165A

NEEDLE VALVE

$4.99

$

In Stock, Qty 11

0

k

Cub Cadet 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

l

Float Pin

$

$

Not available

m

Cub Cadet 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

n

Cub Cadet 721P04711A

FUEL DRAIN PLUG GASKET

$1.99

$

Usually ships in 3-6 days

0

o

Cub Cadet 710-06227

FUEL DRAIN PLUG

$3.49

$

Usually ships in 3-6 days

0

p

Cub Cadet 710P06580

SCREW M3x 6

$3.49

$

Usually ships in 3-6 days

0

q

Cub Cadet 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

r

Throttle Plate

$

$

Not available

S

Gasket

$

$

Not available

t

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

u

Float

$

$

Not available

v

Cub Cadet 721-04709A

FLOAT BOWL GASKET

$2.49

$

Usually ships in 3-6 days

0

w

Cub Cadet 710-06226

FUEL BOWL BOLT

$3.49

$

Usually ships in 3-6 days

0

x

Washer, 5

$

$

Not available

y

Throttle Shaft Spring

$

$

Not available
