5C (9150100) - Simplicity Chipper Shredder Housing & Rotor Group - Up to Serial No. 5000 Parts Diagram

Chipper Shredder

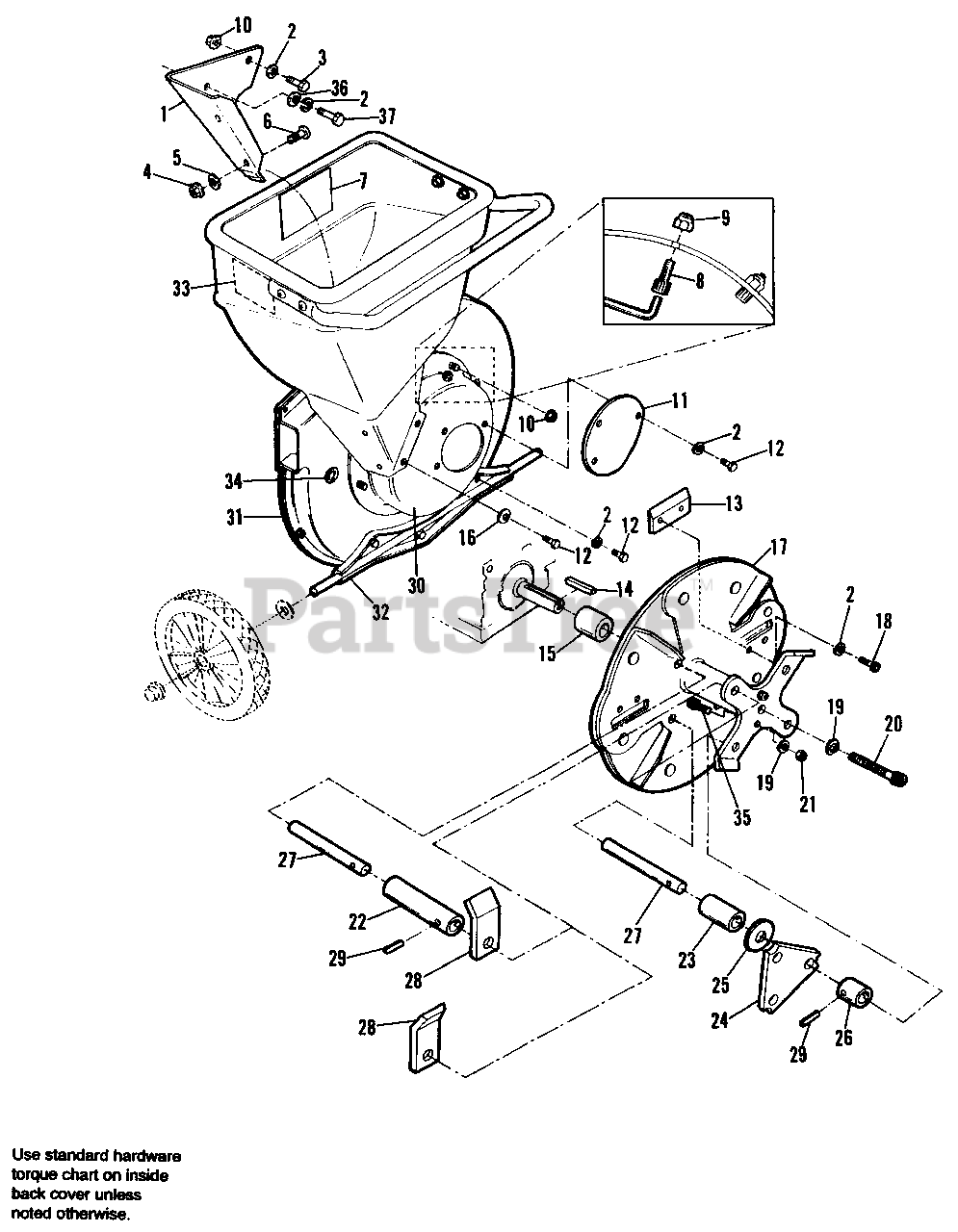

Housing & Rotor Group - Up to Serial No. 5000 Parts Diagram

  • Title

1

Simplicity 1729176SM

HOPPER LINER

$73.99

$

Usually ships in 2-12 days

0

2

Simplicity 1917356SM

LOCKWASHER, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 2830647SM

NUT, 2-Way Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1960472SM

CAPSCREW, Phillips Hd., 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1729208SM

DECAL, CAUTION

$

$

Not available

8

Simplicity 1729214SM

CAPSCREW, Socket Hd., 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

9

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1931277SM

NUT, Flange, Hex, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1729174SM

COVER, Rotor Housing

$26.99

$

Usually ships in 2-12 days

0

12

Simplicity 1920787SM

CAPSCREW, Hex Hd., 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1729148SM

CHIPPER KNIFE

$136.99

$

Usually ships in 2-12 days

0

14

Simplicity 2805100SM

KEY, 1/4 Sq. x 1-7/8

$5.49

$

In Stock, only 1 left!

0

15

Simplicity 1729132SM

SPACER, Rotor, 1"

$28.99

$

In Stock, only 1 left!

0

16

Simplicity 1919326SM

WASHER, Fat, 5/16

$4.49

$

In Stock, Qty 6

0

17

Simplicity 1685698SM

ROTOR, 1" Hub
(Superseded to 1685698YP)

Note: Rotor Kit 1685698 contains Ref. Nos. 2, 17, 19, 22, 23, 26 and 29 (All Items are Marked with an "*") From "Housing & Rotor Group-Serial No. 5000& Above.

$598.99

$

Usually ships in 2-12 days

0

18

Simplicity 1729215SM

CAPSCREW, Socket Hd., 5/16-24 x 5/8

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1916965SM

LOCKWASHER, Split, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 1729235SM

CAPSCREW, Socket Hd., 3/8 24 x 2

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1916950SM

NUT, Hex, 3/8 16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1729154SM

SPACER, Tube, 2-1/2" Long

$5.49

$

Usually ships in 2-12 days

0

23

Simplicity 1729155SM

SPACER, 1-5/8" Long

$

$

Not available

24

Simplicity 1729138SM

HAMMER, Triangular

$48.99

$

In Stock, Qty 12

0

25

Simplicity 1924361SM

WASHER, Flat, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1729156SM

SPACER, 13/16" Long

$

$

Not available

27

Simplicity 1729139SM

SHAFT, Hammer

$16.99

$

Usually ships in 2-12 days

0

28

Simplicity 1729137SM

J HAMMER

$50.99

$

In Stock, Qty 5

0

29

Simplicity 2816169SM

ROLL PIN, 3/16 x 3/4

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1729175SM

HOUSING, Rotor

$153.99

$

Usually ships in 2-12 days

0

31

Simplicity 1729160SM

HOUSING, Fan

$313.99

$

Usually ships in 2-12 days

0

32

Simplicity 1729164SM

AXLE ASSEMBLY

$165.99

$

Usually ships in 2-12 days

0

33

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

34

Simplicity 1729226SM

PLUG BUTTON

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1729236SM

CAPSCREW, Socket Hd., 3/8-16 x 5/8

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
