59M - Cub Cadet Shredder/Grinder Attachment (1973 - 1974) Hopper and Frame -Built 1973 and 1974- Parts Diagram

Shredder/Grinder Attachment

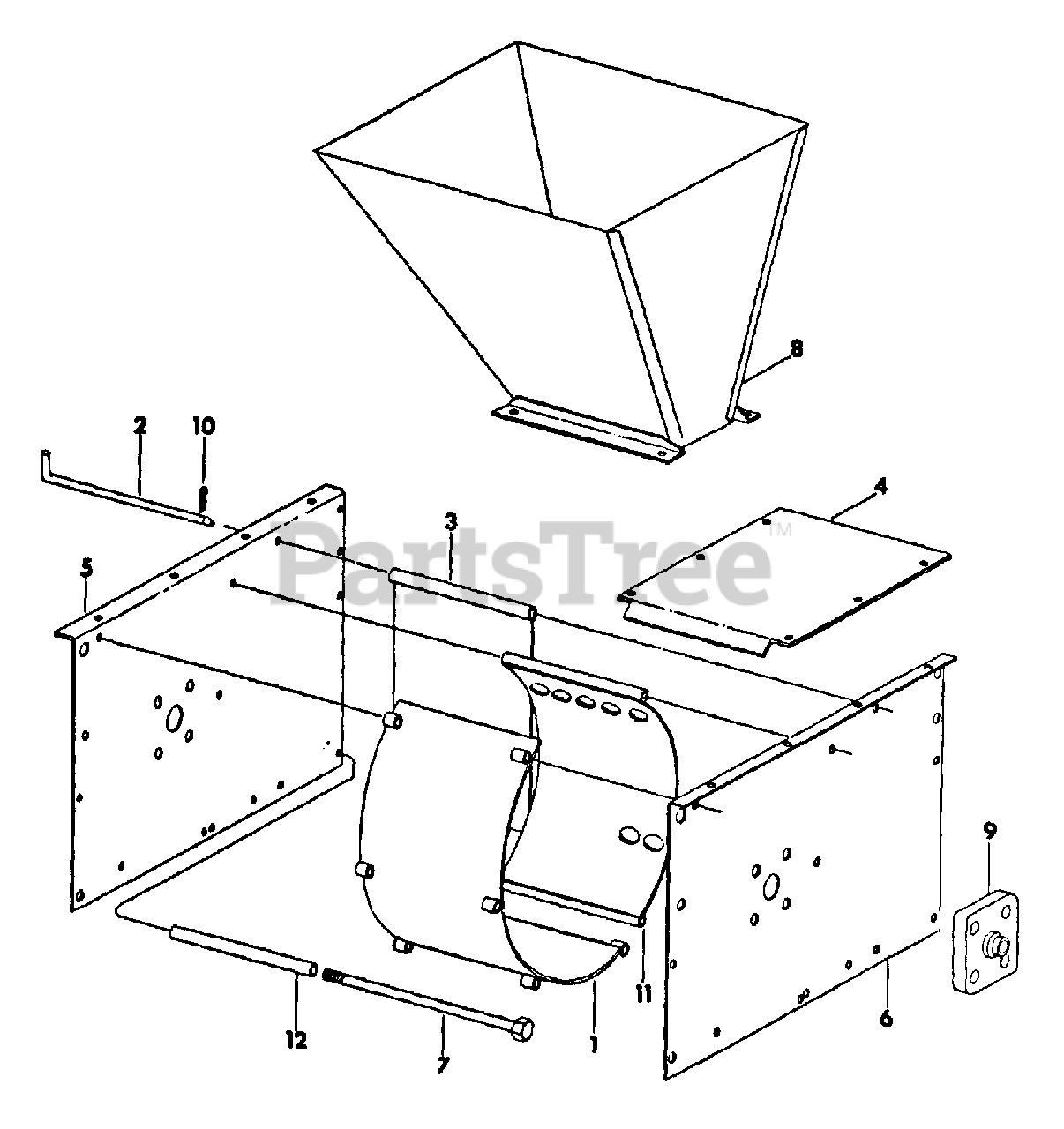

Hopper and Frame -Built 1973 and 1974- Parts Diagram

  • Title
1

59601-C1

SCROLL

$

$

Not available

Cub Cadet IH-180081

SCREW, 5/16-18 X 1-1/4 ZND HEX-HD CAP
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9413977

NUT, 5/16-18 PHC HEX. LOCK
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

2

59608-C1

ROD, SCREEN & BAFFLE

$

$

Not available

3

59603-C1

PLATE, BAFFLE

$

$

Not available

4

59604-C1

PLATE TOP

$

$

Not available

Cub Cadet 180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-9413977

NUT, 5/16-18 PHC HEX. LOCK
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

5

59599-C1

PLATE, SIDE LH

$

$

Not available

6

59600-C1

PLATE, SIDE RH

$

$

Not available

7

59609-C1

ROD, TIE

$

$

Not available

Cub Cadet IH-9413977

NUT, 5/16-18 PHC HEX. LOCK
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

8

59597-C1

HOPPER

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9413977

NUT, 5/16-18 PHC HEX. LOCK
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

9

59610-C91

BEARING FLANGE

$

$

Not available

Cub Cadet IH-180124

SCREEN, 3/8-16 X 1-1/4 ZND HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413953

NUT, 3/8-16 PHC HEX. LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet IH-59602-C1

SCREEN, 1 IN. PERFORATIONS

$

$

Not available

SCREEN 1/2 IN. PERFORATIONS

Note: SERVICED ONLY AS A MACHINE ATTACHMENT.

$

$

Not available

SCREEN, BAR TYPE

Note: SERVICED ONLY AS A MACHINE ATTACHMENT.

$

$

Not available

12

59607-C1

SPACER

$

$

Not available
