59C50004 (59C50004150) - Cub Cadet Wide-Area Mower Bagger (2021) General Assembly Parts Diagram

Wide-Area Mower Bagger

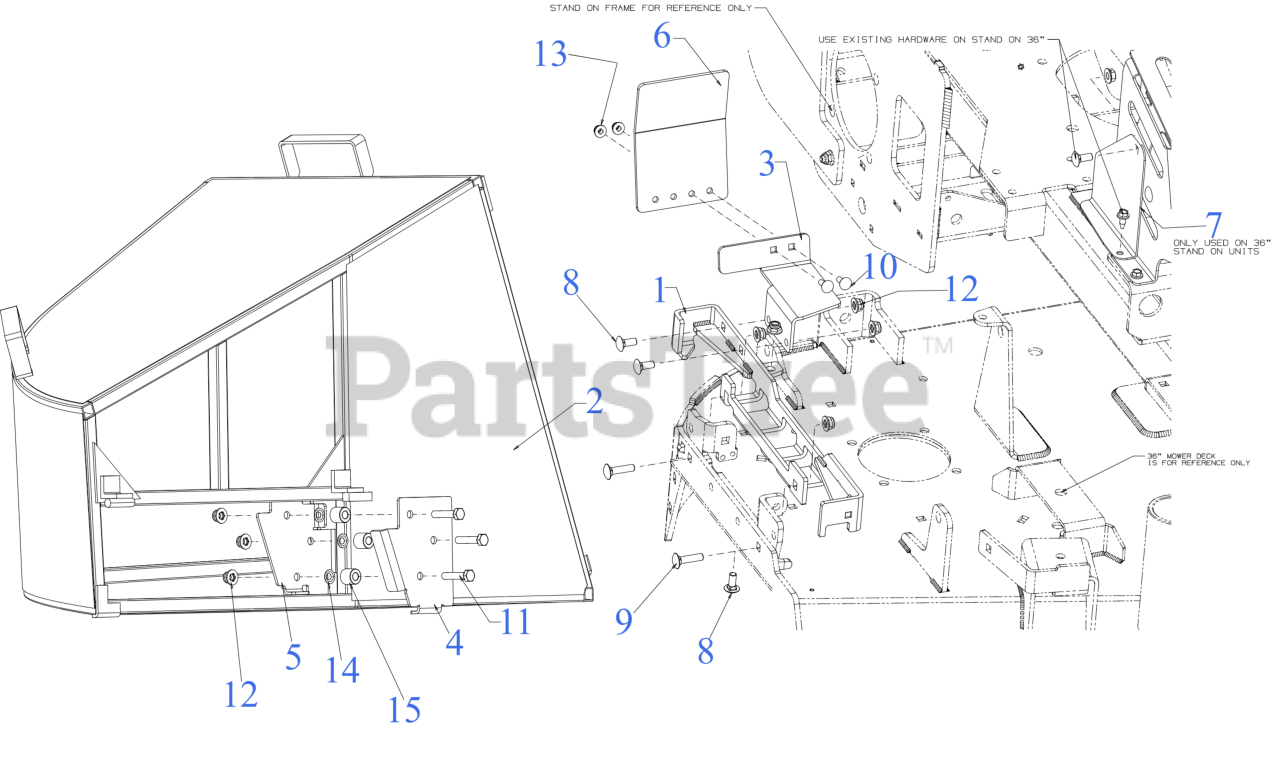

General Assembly Parts Diagram

  • Title

1

Cub Cadet 680-01454

MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$153.99

$

Usually ships in 3-6 days

0

2

GRASSBAG

Note: (Not Serviceable) Order Complete

$

$

Not available

3

Cub Cadet 703-17783

DEFLECTOR CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-18324

OUTER BAG BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-18325

INNER BAG BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-18604

DEFLECTOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-26860

BRACKET

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04821

CARRIAGE BOLT 5/16-18 x 1.25

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 750-06201

SPACER .34 x .75 x .63 LG

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 59C50004150

WAM BAGGER 48/54/60"

$529.99

$

Usually ships in 3-6 days

0
