59A60007 (59A60007750) - Cub Cadet 10 Gallon Add-on Sprayer Kit att General Assembly 2 Parts Diagram

10 Gallon Add-on Sprayer Kit

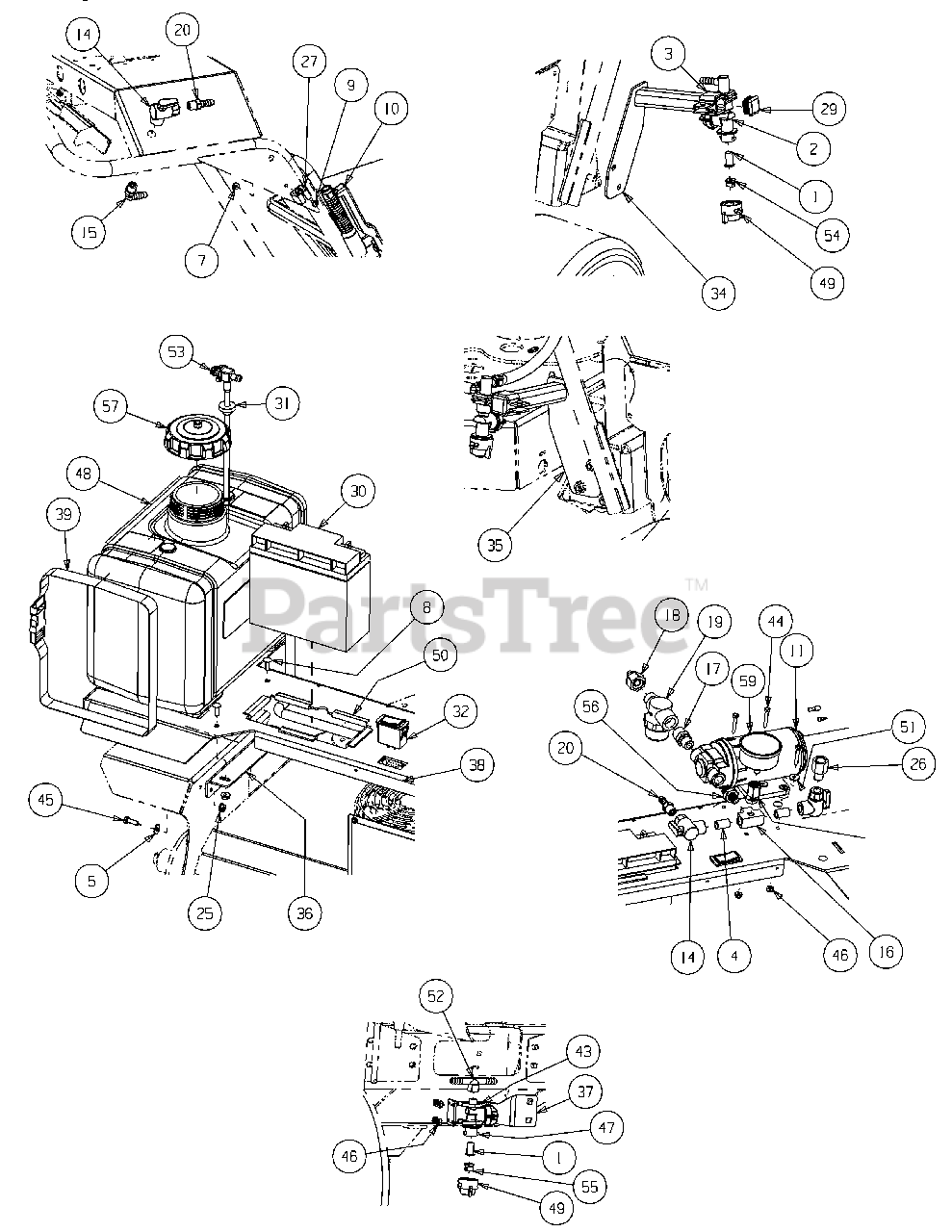

General Assembly 2 Parts Diagram

  • Title

1

Cub Cadet 00005173

Strainer Screen, 50 Mesh, SS

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00009288

Single Dry Boom Nozzle Body

$36.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00009679

Nozzle Body Clamp, 1" SQ.

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00011939

1/4" Brass Nipple

$

$

Not available

5

Cub Cadet 00012154

Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

7

Cub Cadet 00014608

Nut, #10-32, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .75

$

$

Not available

9

Cub Cadet 00017778

Phillips Head Screw, 10-32

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 00018334

Spray Wand

$140.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00020851

Pump, Flojet 25 GL

$498.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00031247

Valve, 1/4 90 Deg. Female

$52.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00032113

Fitting, 1/4 MPT x 3/8

$

$

Not available

16

Cub Cadet 737-04263

Tee, 3/8 NPTF, Brass

$14.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 00035599

Fitting, 8-145-00, Shurflo

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00035600

Fitting, 8-060-01, Shurflo

$

$

Not available

19

Cub Cadet 00035601

Filter, 170-061-00, Shurflo
(Superseded to HY-255-313)

$53.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00035781

Fitting, 1/4 MET x 3/8 Barb, nylon

$

$

Not available

25

Cub Cadet 912-3027

Nut, #10-24, Hex Flange Lock

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 01008987

Adaptor, 3/8 FNPT, 1/4 MNPT

$

$

Not available

27

Cub Cadet 01009281

Clamp

$

$

Not available

29

Cub Cadet 02000104

Plastic Plug

$2.49

$

In Stock, only 2 left!

0

30

Cub Cadet 02000279P

Battery, 12CE18

$242.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02003772

Switch

$71.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 680-00019-0637

Bracket Assembly, LH Nozzle

$

$

Not available

35

Cub Cadet 680-00020-0637

Bracket Assembly, RH Nozzle

$

$

Not available

36

Cub Cadet 703-06809

Mounting Bracket
(Superseded to 703-06809-0637)

Variations

Cub Cadet 703-06809-0637

BRACKET-MOUNT - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 703-06819-0637

Bracket, Center Nozzle

$

$

Not available

38

Cub Cadet 703-06865-0637

Mounting Plate

$

$

Not available

39

Cub Cadet 703-06868

Fuel Tank Mounting Strap
(Superseded to 726-04100)

$7.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-04805

U-Bolt, #10-24

$2.49

$

In Stock, only 2 left!

0

44

Cub Cadet 710-04812

HHCS, #10-24 x 1.25

$

$

Not available

45

Cub Cadet 710-3015

HHCS, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 712-0161

Nut, #10-24, Hex Flange Nylon

$4.49

$

In Stock, only 2 left!

0

47

Cub Cadet 731-06595

Nozzle Body, Center

$41.99

$

In Stock, only 1 left!

0

48

Cub Cadet 731-06596

Tank, 5 Gallon

$

$

Not available

49

Cub Cadet 731-06597

Cap, Nozzle Body
(Superseded to 931-06597)

$5.49

$

In Stock, only 3 left!

0

50

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 936-0400

Washer, .194 x .62 OD x .063
(Superseded to 736-0400)

$

$

Not available

52

Cub Cadet 737-04239

Tee Fitting, 1/4 NPTF x 3/8

$19.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-04240

Fitting, Sprayer Pickup

$33.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 737-04241

Fitting, Off Center Spray Tip

$

$

Not available

55

Cub Cadet 737-04242

Fitting, Flat Spray Tip

$16.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 737-04256

Fitting, 3/8 NPTF x 1/4 NPTF

$

$

Not available

57

Cub Cadet 951-3124D

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0

59

Cub Cadet 737-04262

Pressure Gauge, 0-100 psi

$85.99

$

In Stock, only 1 left!

0

Cub Cadet 725-0157

Cable Tie

Note: Not Shown

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 01000215

Hose Clamp, 1/4-5/8, SS

Note: Not Shown

$

$

Not available

929-04170

Harness Assembly

Note: Not Shown

$

$

Not available

Cub Cadet 737-04261

Fitting, 1/4 NPTF x 1/8 NPTM

Note: Not Shown

$

$

Not available

Cub Cadet 725-04329

Battery Charger, 12V
(Superseded to 725-06121B)

Note: Not Shown

$47.99

$

In Stock, Qty 13

0
