59A60001 (59A60001750) - Cub Cadet Lawn Spray Gun General Assembly Parts Diagram

Lawn Spray Gun

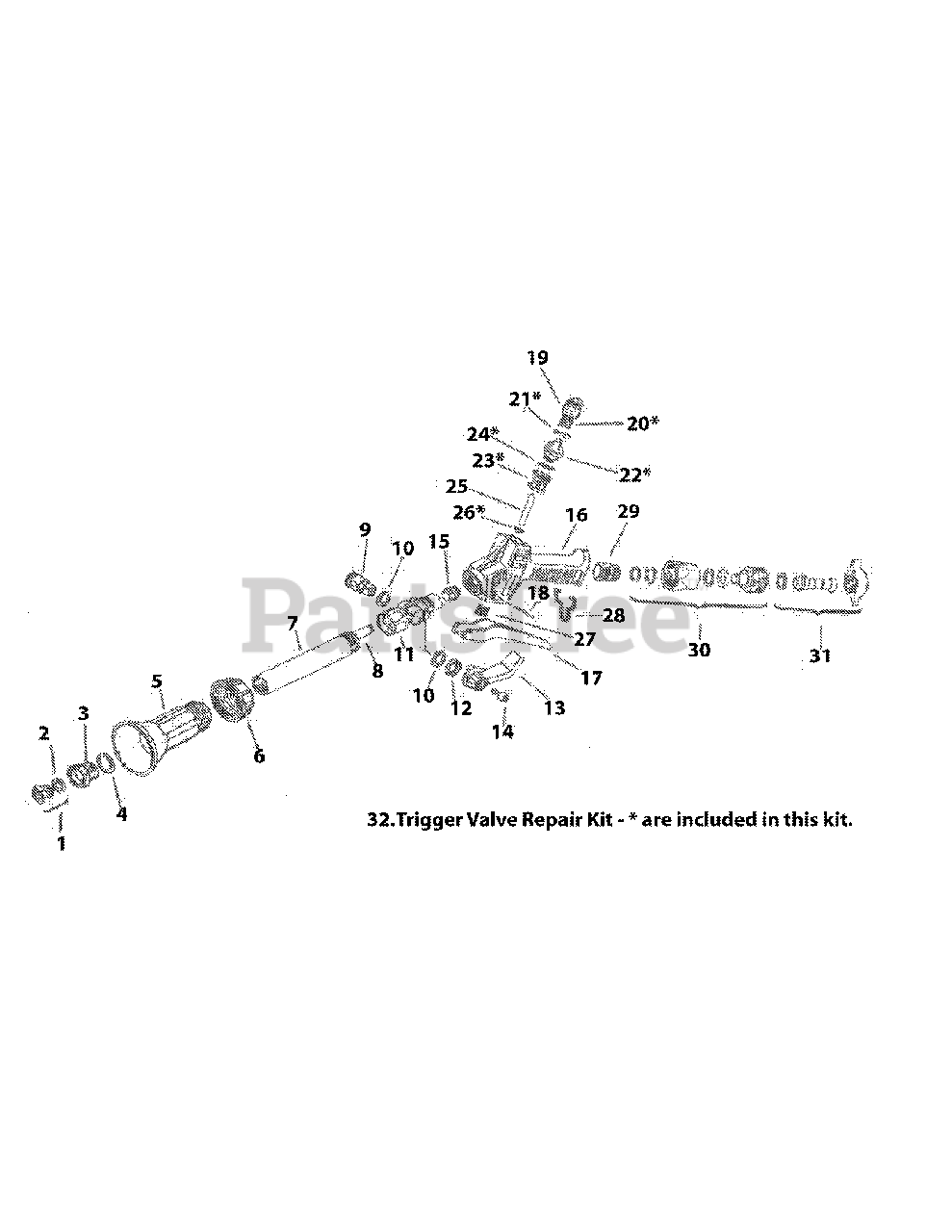

General Assembly Parts Diagram

  • Title

1

Cub Cadet HY-3385-3000

Nozzle (Standard)

$

$

Not available

2

Cub Cadet HY-9920-71602-6

O-ring

$

$

Not available

3

Cub Cadet HY-992026170110

Nozzle Holder

$

$

Not available

4

Cub Cadet HY-9920-6860210

O-ring

$

$

Not available

5

Cub Cadet HY-9920-2617072

Nozzle Protector

$

$

Not available

6

Cub Cadet HY-9920-2660550

Locking Ferrule

$

$

Not available

7

Cub Cadet HY-992026170369

Barrel

$

$

Not available

8

Cub Cadet HY-992026170355

Stream Straightener

$

$

Currently unavailable

9

Cub Cadet HY-992026130433

Valve

$

$

Not available

10

Cub Cadet HY-9920-71602-6

O-ring

$

$

Not available

11

Cub Cadet HY-9920-26305-3

Valve Body

$

$

Not available

12

Cub Cadet HY-992026150614

Spacer

$

$

Not available

13

Cub Cadet HY-9920-26902-6

Adjusting Lever

$

$

Not available

14

Cub Cadet HY-992026190220

Screw

$

$

Not available

15

Cub Cadet HY-9920-26801-5

Ferrule Insert

$

$

Not available

16

Cub Cadet HY-992029208131

Gun Body

$

$

Not available

17

Cub Cadet HY-9920-29902-8

Plastic Trigger

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HY-9920-2916073

Pin

$

$

Not available

19

Cub Cadet HY-992029170226

Plug

$

$

Not available

20

Cub Cadet N/A

Spring

$

$

Currently unavailable

21

Cub Cadet N/A

O-ring

$

$

Currently unavailable

22

Cub Cadet N/A

Seat

$

$

Currently unavailable

23

Cub Cadet N/A

Valve Retainer

$

$

Currently unavailable

24

Cub Cadet N/A

O-ring

$

$

Currently unavailable

25

Cub Cadet HY-992023130429

Pin

$

$

Not available

26

Cub Cadet N/A

Gasket

$

$

Currently unavailable

27

Cub Cadet HY-992023100316

Spring

$

$

Not available

28

Cub Cadet HY-9920-2950710

Clip

$

$

Not available

29

Cub Cadet HY-9920-2911011

Nipple

$

$

Not available

30

Cub Cadet HY-992026150245

Swivel Connection

$

$

Not available

31

Cub Cadet HY-992016260417

Hosebarb, Nut and Gasket

$

$

Not available

32

Cub Cadet HY-3430-0460

Trigger Valve Repair Kit Includes:

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

Seat

Note: Not shown

$

$

Not available

Valve Retainer

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

Gasket

Note: Not shown

$

$

Not available

Spring

Note: Not shown

$

$

Not available
