59A50011 (59A50011150) - Cub Cadet 48" Side-Discharge Blocker Kit (2020) General Assembly Parts Diagram

48" Side-Discharge Blocker Kit

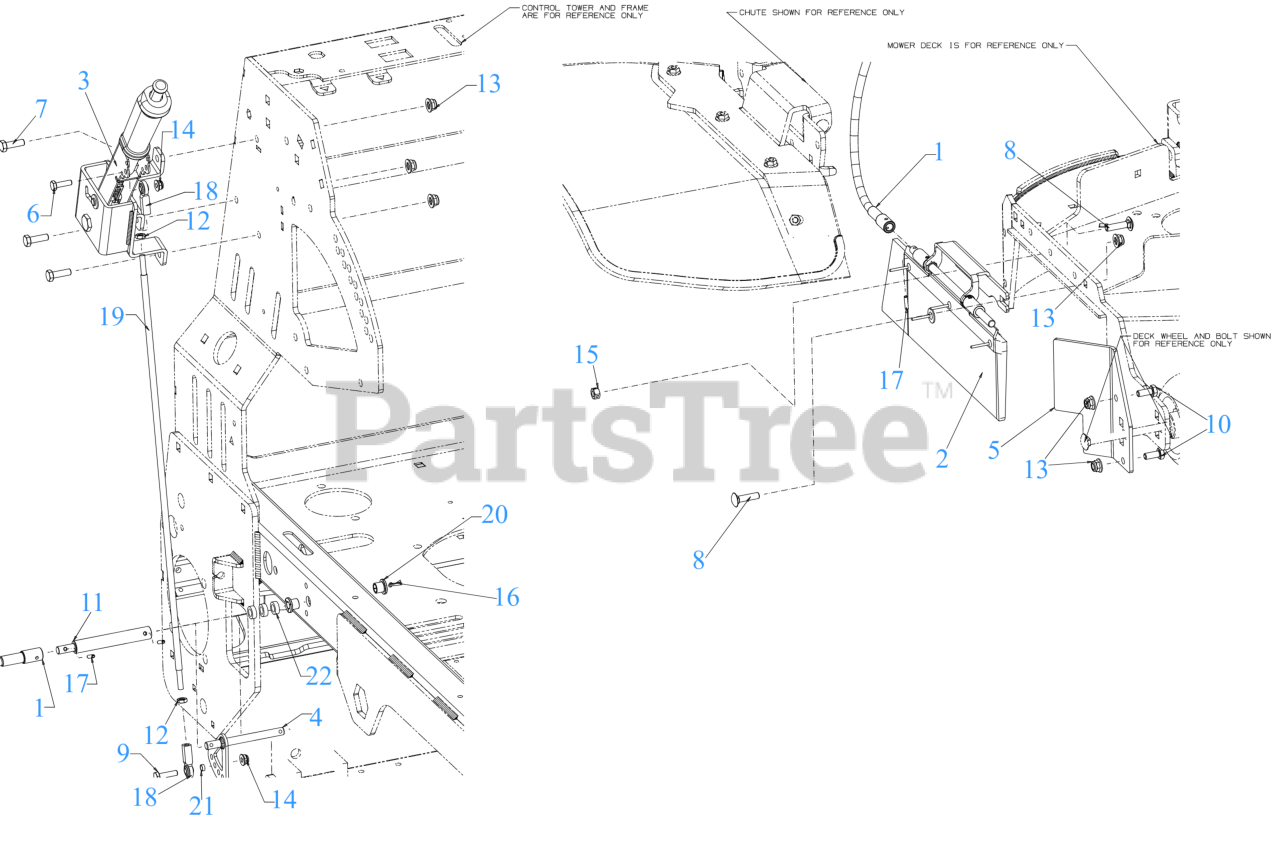

General Assembly Parts Diagram

  • Title

1

Cub Cadet 611-05206

CHUTE CONTROL CABLE ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-05959

DISCHARGE DOOR ASSEMBLY
(Superseded to 631P05959)

Note: (See Separate Breakdown)

$278.99

$

Usually ships in 3-6 days

0

3

DOOR HANDLE

Note: (See Separate Breakdown)

$

$

Not available

4

Cub Cadet 680-01596

DOOR SHAFT

$112.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-22545

BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$22.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0206

HEX SCREW 1/4-20 x .875 GR5

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04821

CARRIAGE BOLT 5/16-18 x 1.25

$5.49

$

In Stock, Qty 10

0

9

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-07101

ADAPTER SHAFT 4.25"

$87.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0314

HEX JAM NUT 1/4-28

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3009

HEX NUT

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 715-04137

ROLL PIN 5/32" x .688"

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 723-04077

END ROD (RH)

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-08930

DOOR ROD

$25.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 748-0208A

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-05212

SPACER

$2.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 950-0535

SPACER-.380 ID x .625 OD x .227

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 59A50011150

DISCHARGE BLOCKER KIT 48"

$574.99

$

Usually ships in 3-6 days

0
